45
Installation and Maintenance
Service Manual

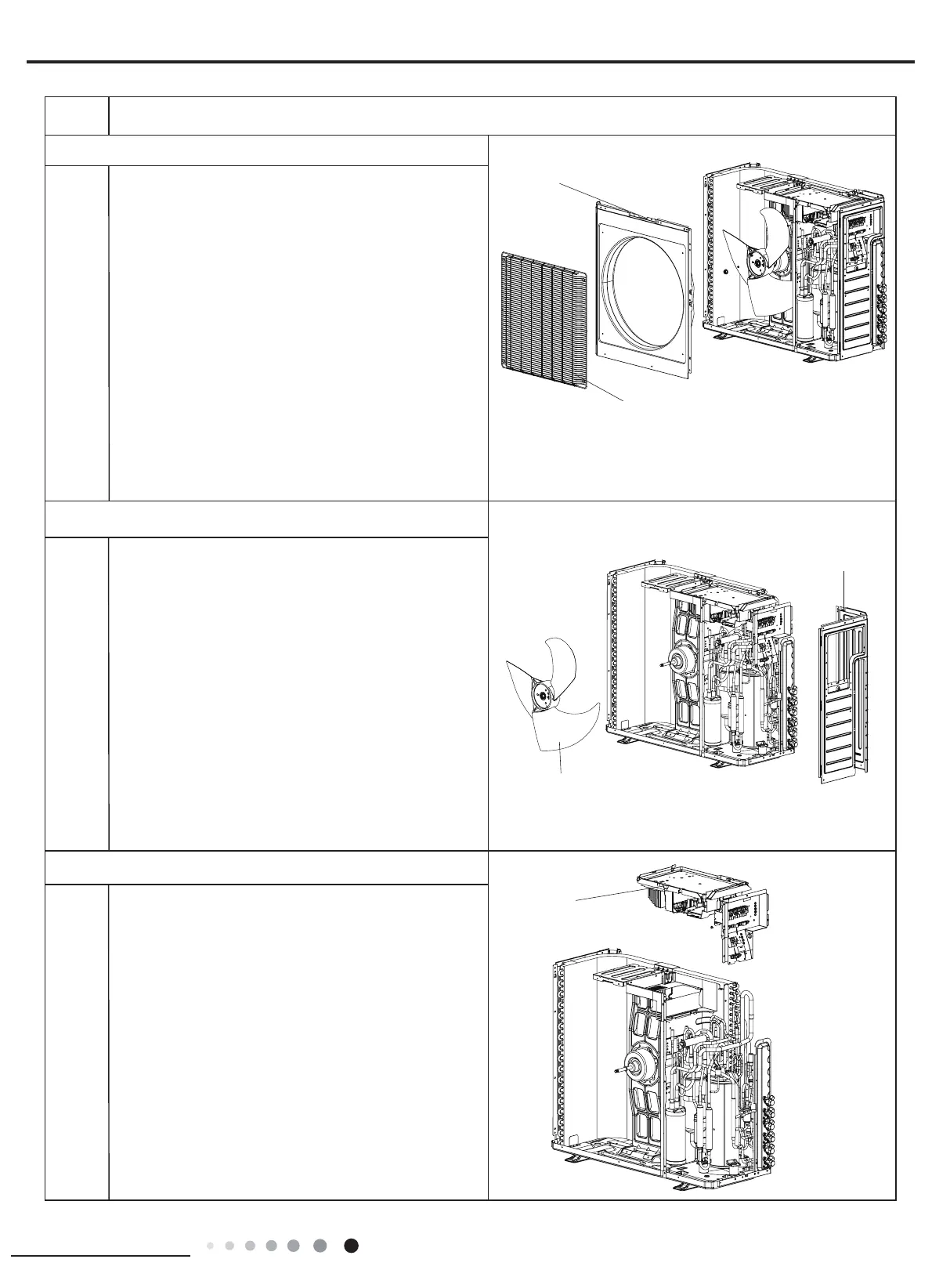

Steps Procedure
grille
right side plate
Remove the screws connecting the right side plate
with electric box assy, valve support, chassis and
condenser side plate, and then remove the right
side plate.
Remove the 4 screws connecting the grille and
outer case, and then remove the panel grille.
5.Remove right side plate and blade
4.Remove grille and cabinet
cabinet
Remove nuts fixing axial flow blade with wrench,
and then remove the axial ow blade.
blade
electric box assy
1.Remove the grounding wire screw on the electric
box assy and then remove the grounding wire.
2.Disconnect the wiring terminals of reactor,
compressor, high and low pressure switch,
compressor overload protector, temperature sensor,
outdoor fan motor and 4-way valve. (See g 2)
Note: keep pressing the circlip when disconnecting
the wiring terminal of reactor; keep pressing the
retainer when disconnecting other wiring terminals.
3.Remove the wire inside the wiring groove.
6. Remove electric box assy
