49
Installation and Maintenance
Service Manual

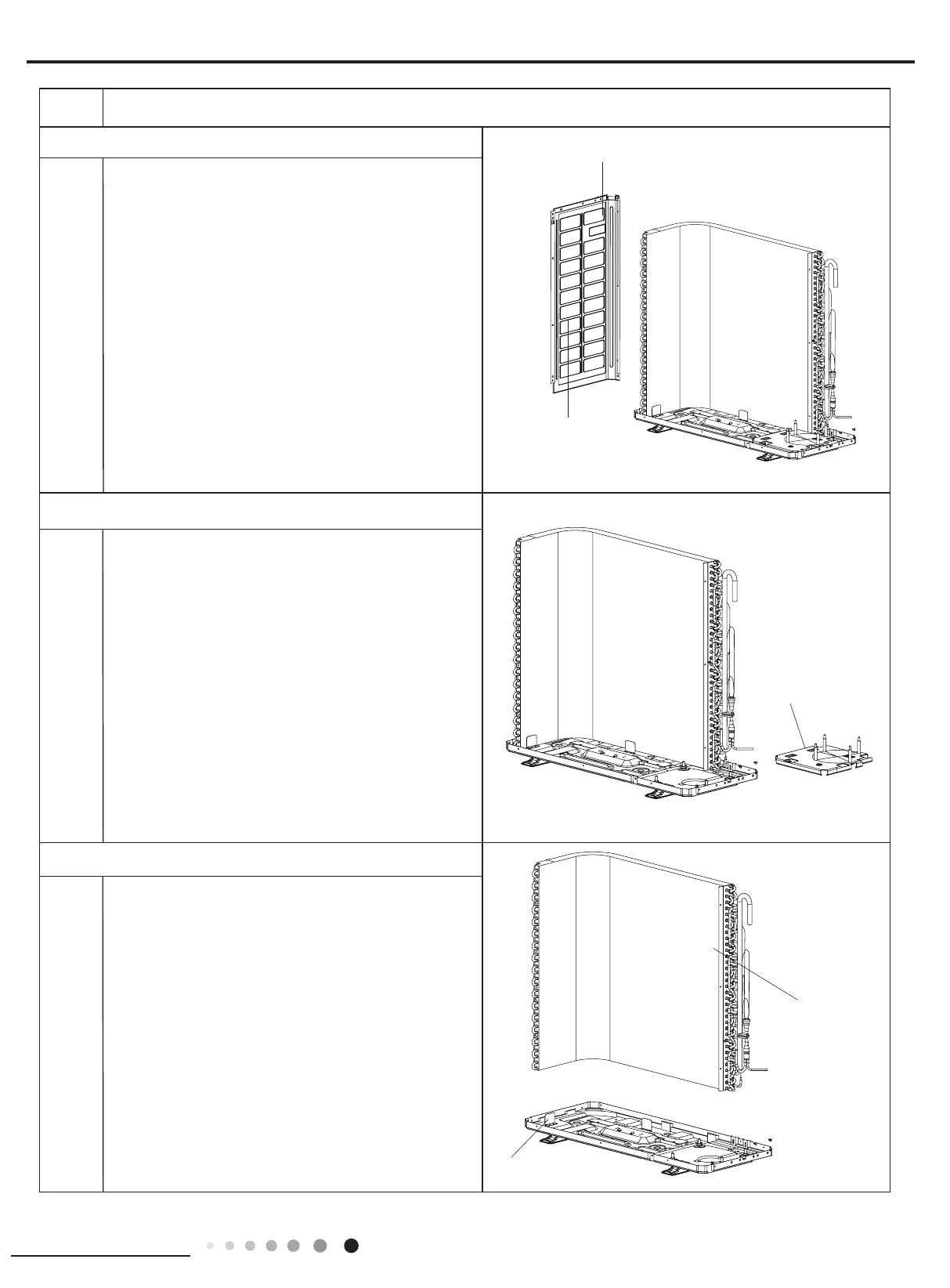

Steps Procedure
16.Remove left side plate
Remove screws connecting left side plate and
support plate of condenser, chassis, and then
remove the left side plate.
left side plate
support plate of condenser
17.Remove compressor mounting plate sub-assy
Remove the 4 foot nuts xing compressor mounting
plate sub-assy and chassis, to remove the
compressor mounting plate sub-assy.
compressor mounting
plate sub-assy
condenser
chassis
Pull it upwards to separate the chassis and condenser.
18. Remove condenser
