56
Installation and Maintenance
Service Manual
Steps Procedure

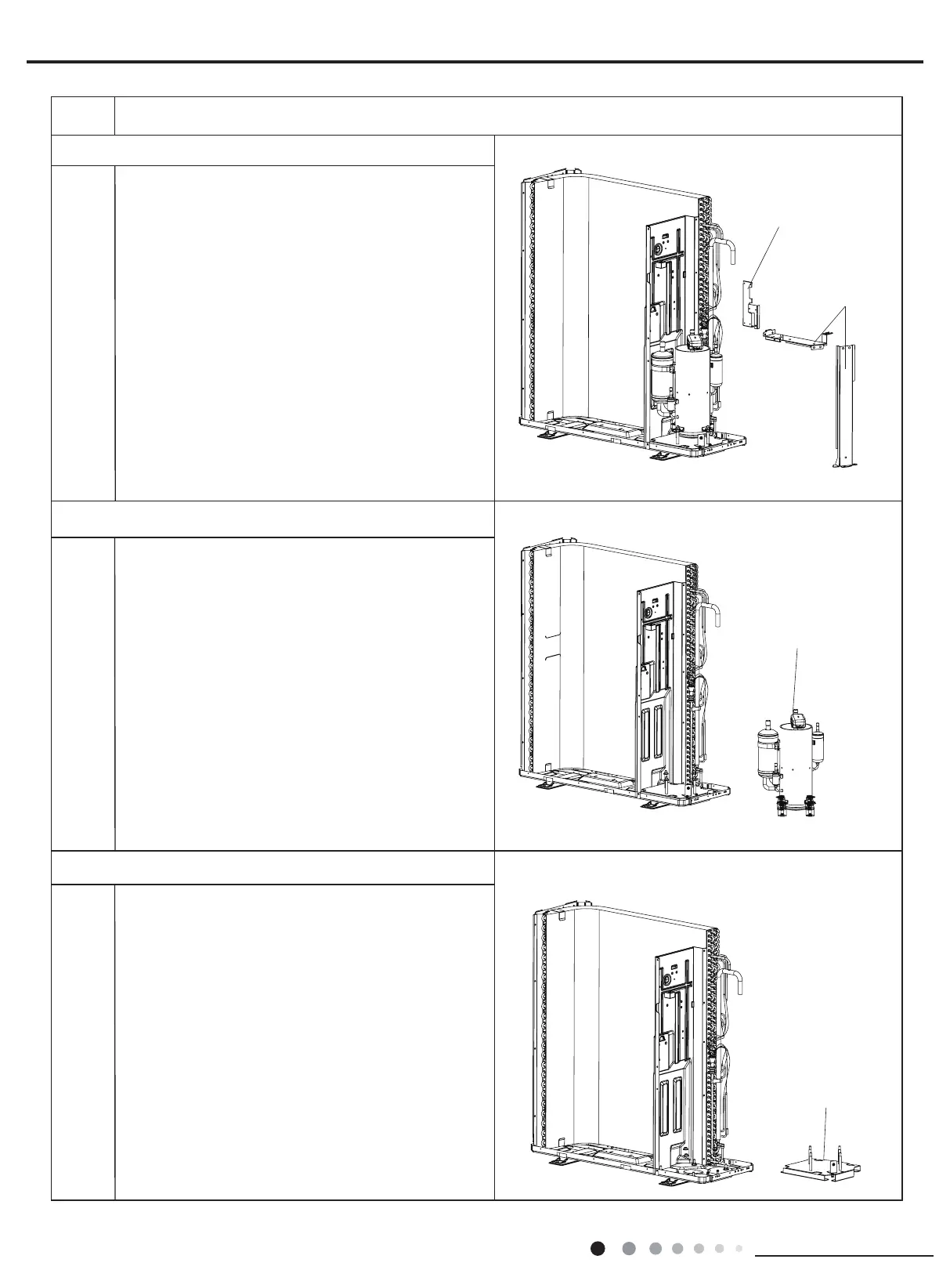

20.Remove supporting board and supporting board sub-assy
supporting
board sub-assy
supporting board
Remove the screws connecting the gsupporting
board and supporting board sub-assy and remove the
gsupporting board and supporting board sub-assy.
compressor
21. Remove compressor
Remove the 3 foot nuts xing compressor and then lift
the compressor upwards to remove the compressor
and damping cushion.
Note:
Keep the ports of discharge pipe and suction pipe from
foreign objects.
22.Remove compressor mounting plate sub-assy
Remove the 4 foot nuts fixing compressor mounting
plate sub-assy and chassis, to remove the compressor
mounting plate sub-assy.
compressor mounting
plate sub-assy
