Air Handlers

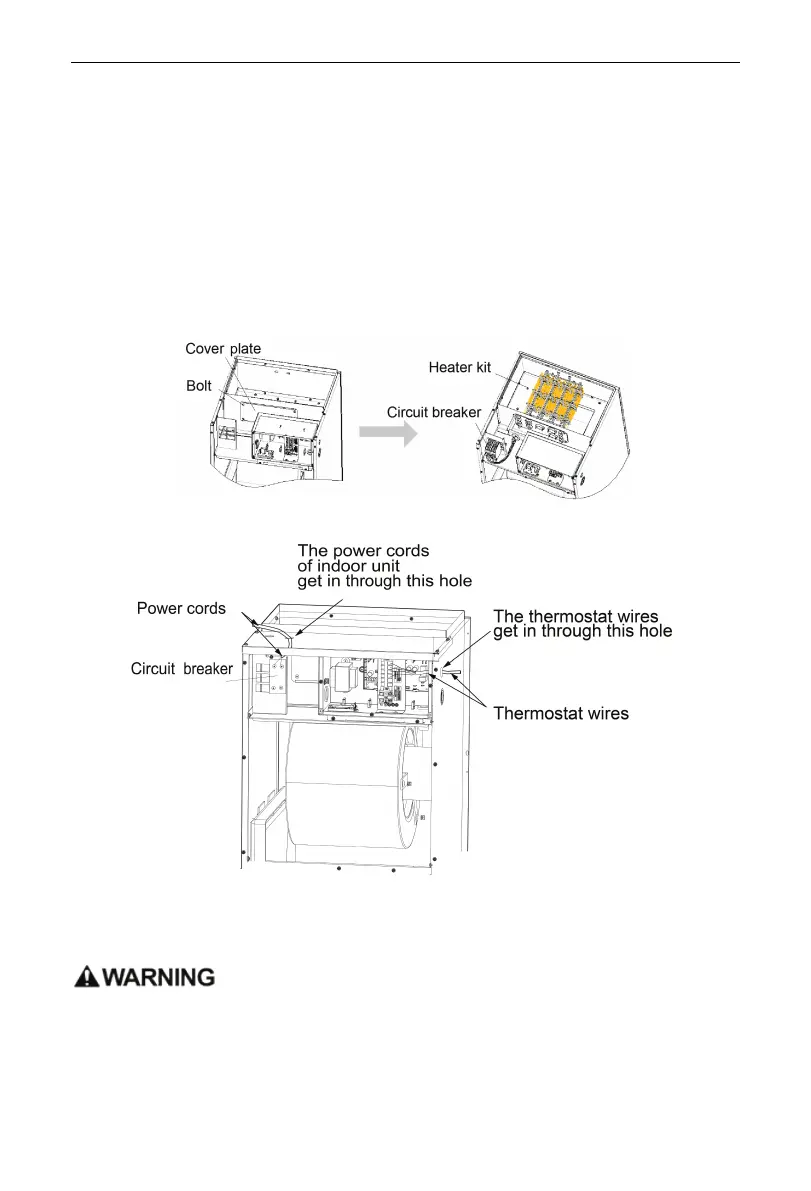

6) Insert power leads into the circuit breaker lugs or stripped red and black
wires (for heater kit without circuit breaker) and tighten.
7) Connect ground wire to ground lug.
8) Knock off appropriate area of the plastic circuit breaker cover on the access
panel of the air handler. Knock off the holes according to the actual
installation number and positions of circuit breakers. If circuit breaker is not
installed, do not knock off the holes; otherwise, electric shock may occur.
9) Replace access panel and check operation.
10) Connection of power cords and thermostat wires.
4.7 Electrical Installation
4.7.1 Requirement and Notice on Electrical Installation
The electrical installation for the air conditioner should observe the following
requirements:
①. The electrical installation must be conducted by professionals in compliance
with local laws and regulations and the instructions in this manual. Never
