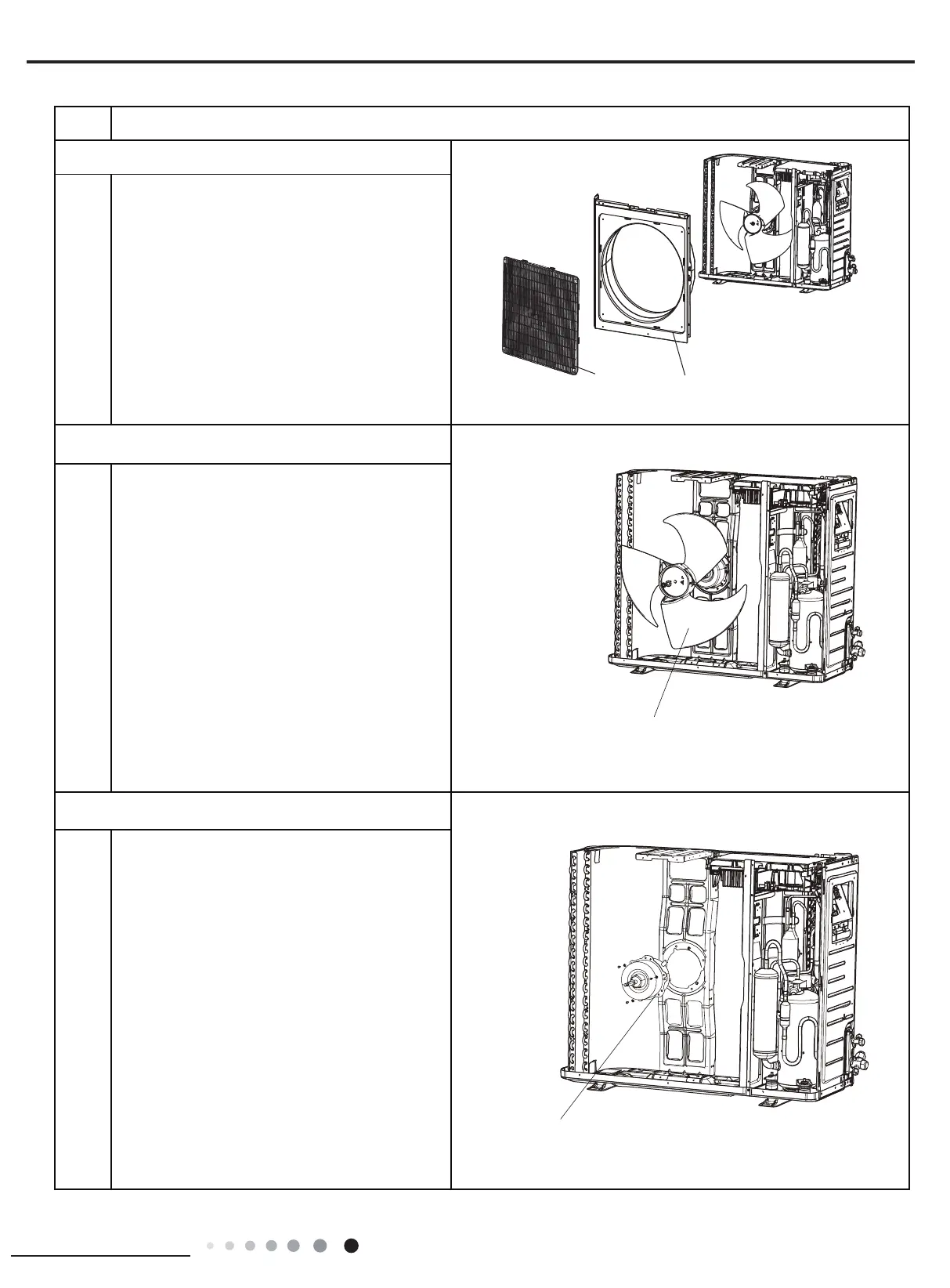

4.Remove grille and panel
grille
panel
Twist off the screws connecting the panel, chassis
and motor support with screwd-river, and then
remove the panel.
Twist off the screws connecting the grille and
panel, and then remove the grille.
5.Remove axial flow blade
6.Remove motor
axial flow blade
motor
Twist off the nuts on blade with wrench and then
remove the axial flow blade.
Twist off the tapping screws fixing the motor, pull
out the pin of leading wire for motor and then
remove the motor.
Steps Procedure
To Next Page
