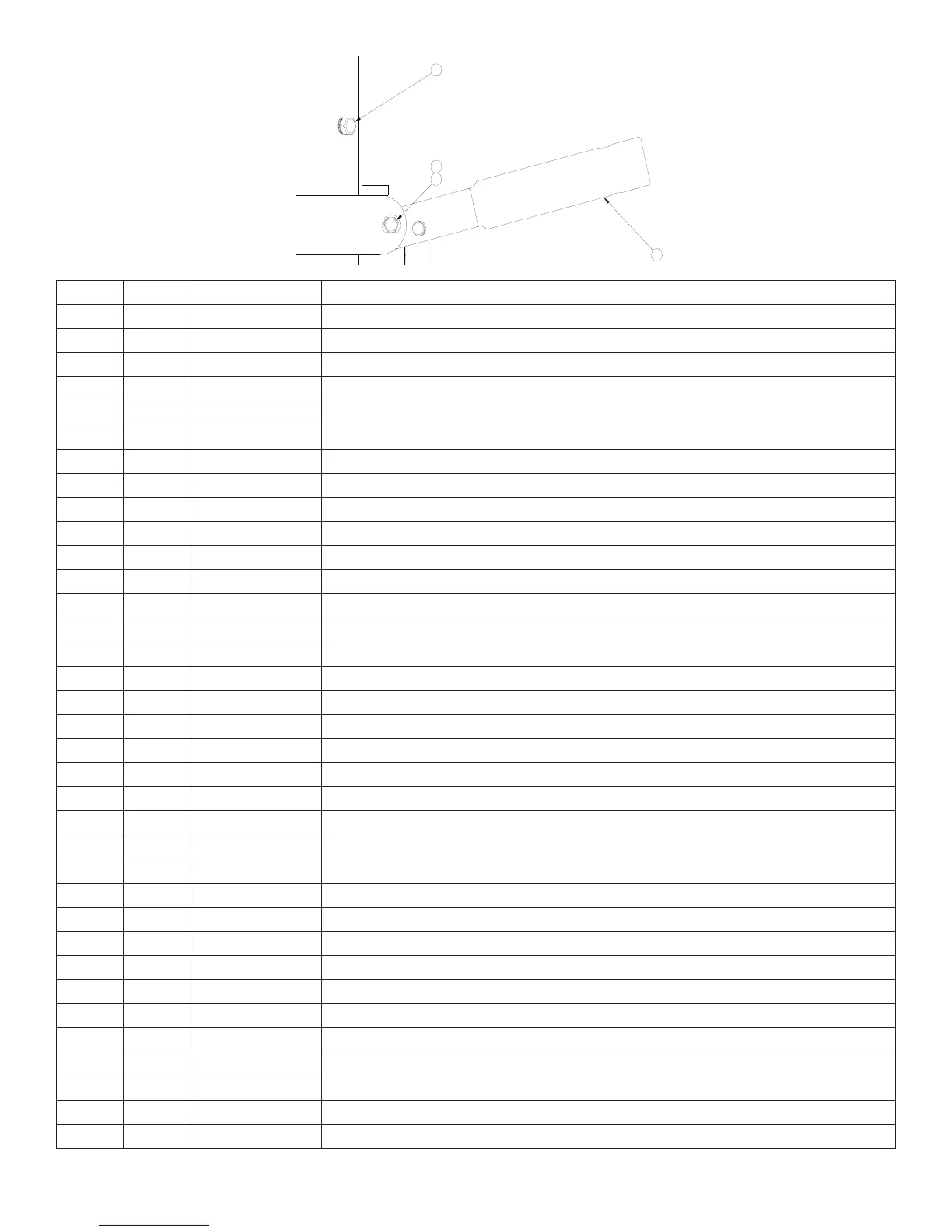

Item Qty Part Number Description
1 1 GR1-274-34001 Plug, Straight Thread, Recessed Hex, with O’Ring
2 1 GR1-233-12002 Spring, Compression, .406 Dia.
3 2 GR1-390-20007 Gasket, Metallic, .045 Thick, 5/16 LD.
4 2 - Capscrew, Socket Head, 5/16-18UNC, Steel, Unplated, 3/8 Long
5 1 - Ball, 3/8 Dia., 440 C, Stainless Steel, Grade 25, 58-62 RC
6 1 GR1-233-10007 Spring, Compression, .250 O.D.
7 1 - Ball, 1/4 Dia., 440C Stainless Steel, Grade 25, 58-62 RC
8 1 GR2-353-49197 Release Stem
9 1 GR2-353-43040 Retaining Nut
10 1 GR0-390-00077 O’Ring, 1 1/16 O.D. X 7/8 I.D., ARP 568-118, Nitrile, 70 Duro
11 1 GR0-390-00007 O’Ring, 7/16 O.D. X 5/16 I.D. X 1/16 CS, ARP-011, Nitrile, 70 Duro
12 1 GR1-230-11013 Retaining Ring, External, E, 7/16 Dia.
13 1 GR0-236-00018 Ball, 1/8 Dia., 440C Stainless Steel, Grade 25, 58-62 RC
14 1 GR2-353-43038 Cylinder Cap
15 2 GR1-390-01004 O’Ring, 2 1/16 O.D. X 1 7/8 I.D.
16 3 GR1-353-44009 Piston Segment
17 1 - Cylinder
18 1 GR2-353-41070 Reservoir Tube Weldment
19 1 GR2-353-44012 Piston Rod Weldment
20 1 GR0-390-01005 O’Ring, 2 7/8 O.D. X 2 3/4 I.D. ARP568-039, Nitrile, 70 Duro
21 1 GR1-353-49058 Oil Port Ring
22 1 GR1-390-11010 Seal, 1 5/8 O.D. X 1 3/8 I.D. X 1/4
23 1 GR1-441-04002 Bearing, Plain, Cylindrical, 1 3/8 Bore
24 1 - Hydraulic Block, FLJ - Air Motor
25 1 - Magnet, 1/8 Dia., X 7/16 Long
26 2 GR1-470-20004 Shaft, Grooved Ends, 3/8 Dia.
27 6 GR1-230-11003 Retaining Ring, External, E, 3/8” Dia.
28 2 GR1-353-49132 Link, Pump Plunger
29 1 GR1-353-49130 Pump Housing
30 1 GR1-353-49131 Plunger, 5/8 Dia.
31 1 GR1-390-10010 Seal, 5/8 X 3/8 X 1/4 Deep
32 1 GR1-390-01006 O’Ring, 1 1/8 O.D. X 1 I.D.
33 1 GR1-275-20009 Pipe Plug, 1/8”, External Hex
34 1 GR1-470-20003 Shaft, Grooved Ends, 3/8 Dia.
35 1 GR2-232-20104 Pump Handle, Drilled (FLJ)
Page 4 of 5
DN040405 © 2005 Gray Automotive Products Co. 670-90386 Rev. C
35
33
27
34
35
34
33
32
31
30
29
28
27
26
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
Item
25
25
Shaft, Grooved Ends, 3/8 Dia.
Pump Handle, Drilled (FLJ)
470-20003
232-201041
1
Ball, 1/8 Dia., 440C Stainless Steel, Grade 25, 58-62 RC
O'Ring, 2 7/8 O.D. X 2 3/4 I.D. ARP568-039, Nitrile, 70 Duro
Bearing, Plain, Cylindrical, 1 3/8 Bore
Retaining Ring, External, E, 3/8" Dia
441-040021
Hydraulic Block, FLJ - Air Motor
Magnet, 1/8 Dia., X 7/16 Long
Shaft, Grooved Ends, 3/8 Dia.
Link, Pump Plunger
Pump Housing
Plunger, 5/8 Dia.
Seal, 5/8 X 3/8 X 1/4 Deep
O'Ring, 1 1/8 O.D. X 1 I.D.
Pipe Plug, 1/8", External Hex
353-491322
353-49130
353-49131
390-10010
390-01006
275-20009
1
1
1
1
1
353-49311
353-49010
230-11003
470-20004
6
2
1
1
Reservoir Tube Weldment
Cylinder
Piston Segment
O'Ring, 2 1/16 O.D. X 1 7/8 I.D.
Cylinder Cap
Piston Rod Weldment
Oil Port Ring
Seal, 1 5/8 O.D. X 1 3/8 I.D. X 1/4
353-41070
353-44012
390-01005
353-49058
390-11010
1
1
1
1
1
353-41008
353-44009
390-01004
353-43038
236-00018
2
1
3
1
1
Retaining Ring, External, E, 7/16 Dia.
O'Ring, 7/16 O.D. X 5/16 I.D. X 1/16 CS, ARP-011, Nitrile, 70 Duro
O'Ring, 1 1/16 O.D. X 7/8 I.D., ARP 568-118, Nitrile, 70 Duro
Ball, 1/4 Dia., 440C Stainless Steel, Grade 25, 58-62 RC
Ball, 3/8 Dia., 440 C, Stainless Steel, Grade 25, 58-62 RC
Capscrew, Socket Head, 5/16-18UNC, Steel, Unplated, 3/8 Long
Gasket, Metallic, .045 Thick, 5/16 I.D.
Plug, Straight Thread, Recessed Hex, with O'Ring
2 1 233-12002
Spring, Compression, .406 Dia.
Retaining Nut
Release Stem
Spring, Compression, .250 O.D.
1 236-000057
230-11013
390-00007
390-00077
353-43040
353-49197
1
1
1
9
8
1
1
233-10007
236-00006
201-01101
390-20007
6
5
1
1
4
3
2
2
Description
274-34001
Part Number
Qty
1 1
