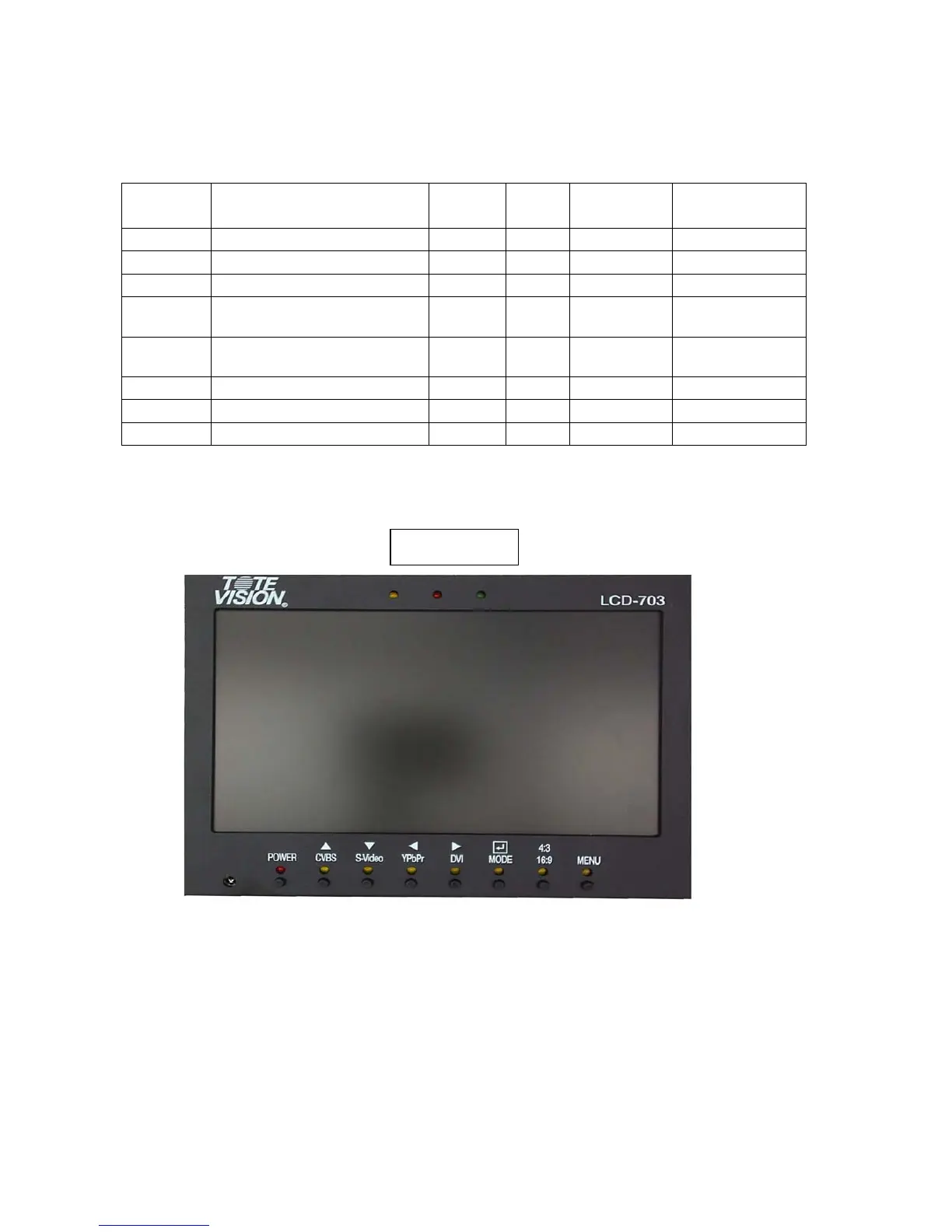

Applicable signal format
Signals Frames per Second Aspect
Raito
Active
Lines
Scanning
Method
Input
525-60i
30/29.97 4:3/16:9
483
Interlaced CVBS, Y/C,YPrPb
480i
60/59.94/50
4:3/16:9
483
Interlaced CVBS, Y/C,YPrPb
625-50i
25 4:3/16:9
576
Interlaced CVBS, Y/C,YPrPb
480P
60/59.94/50/30/29.97
/25/24/23.976
16:9
483
Progressive
YPrPb,DVI
720P
60/59.94/50/30/29.97
/25/24/23.976
16:9
720
Progressive
YPrPb,DVI
1035i
60/59.94
16:9
1080
Interlaced
YPrPb,DVI
1080i
60/59.94/50/48/47.96
16:9
1080
Interlaced
YPrPb,DVI
1080P
30/29.97/25/24/23.976 16:9
1080
Progressive
YPrPb,DVI
Switch Settings, Functions and Indicators
CVBS, S-Video, YPrPb and DVI select input source and LED on when active.
Mode : select under scan or normal mode
Note: Tapping any active input signal toggles BLUE GUN On/Off.
Signal selection is active when Blue Gun is on.
Tap active selection to turn off.
Tally Indicators
