73
2000 4Runner (OM35762U)

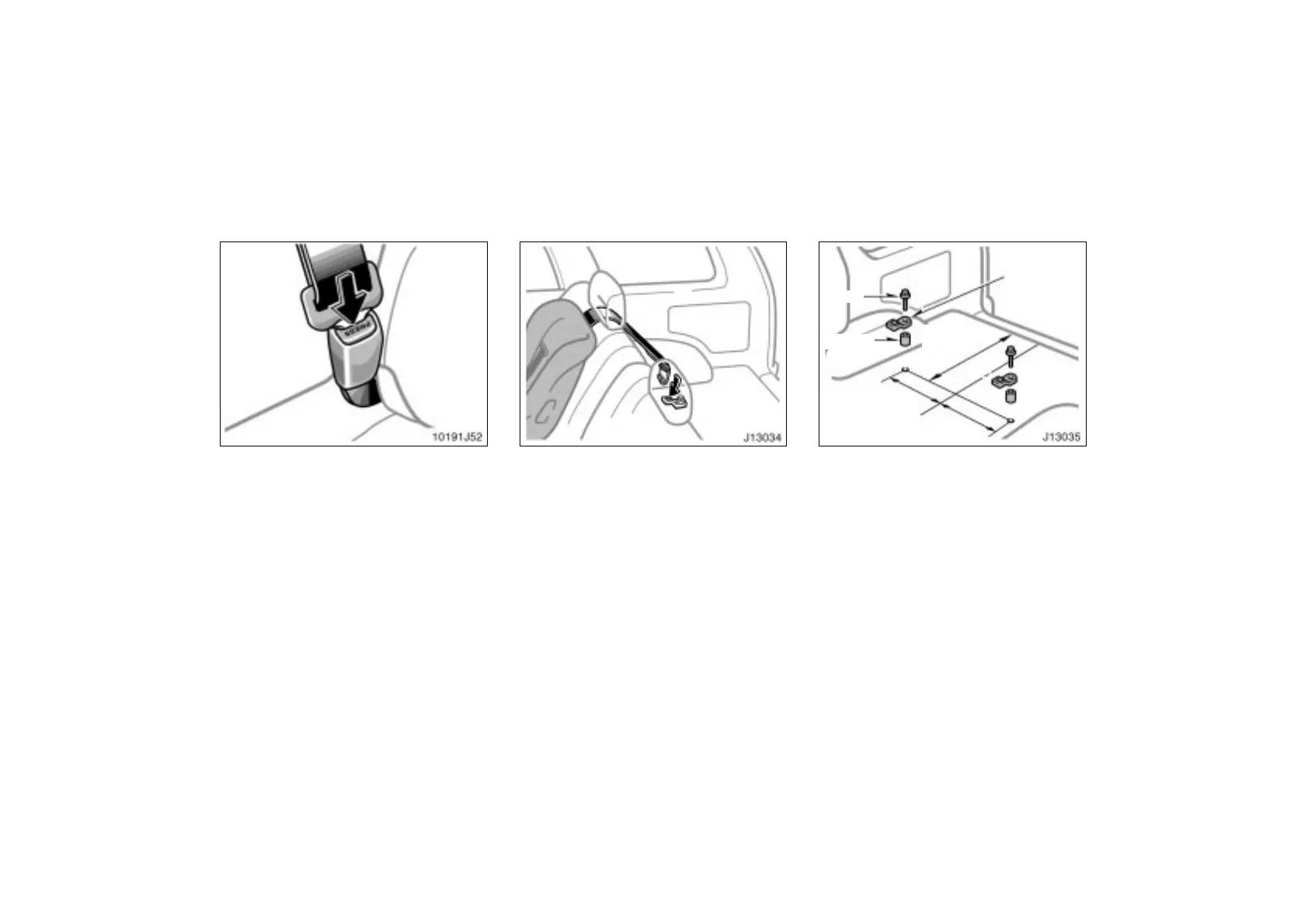

2. To remove the child restraint system,
press the buckle- release button and al-
low the belt to retract.
If your child restraint system requires
the use of a top strap, latch the hook
onto the anchor bracket and tighten the
top strap.
See the following instructions to install the
anchor bracket.
Bolt
Spacer
380 mm
(15.0 in.)
730 mm
(28.7 in.)
380 mm
(15.0 in.)
Anchor
bracket
On the luggage compartment floor
a. Using the illustration as a guide, run
your fingers across the trim of the filler
panel itself to locate the position of the
holes underneath.
b. Make a hole in the covering directly
above the hole in the luggage compart-
ment floor.
c. Insert a 15 mm (0.6 in.) spacer and
tighten down the anchor bracket for
your child restraint system with a bolt.
Torque the bolt to 16.5—24.7 N⋅m
(1.68—2.52 kgf⋅m, 12.2—18.2 ft⋅lbf).
—Top strap anchors and
locations
