Hitting a curb,
edge of pavement
or hard material
Falling into or
jumping over a
deep hole
Landing hard or vehicle falling
The front SRS airbags may also deploy
if a serious impact occurs to the under-
side of your vehicle. Some examples
are shown in the illustration.

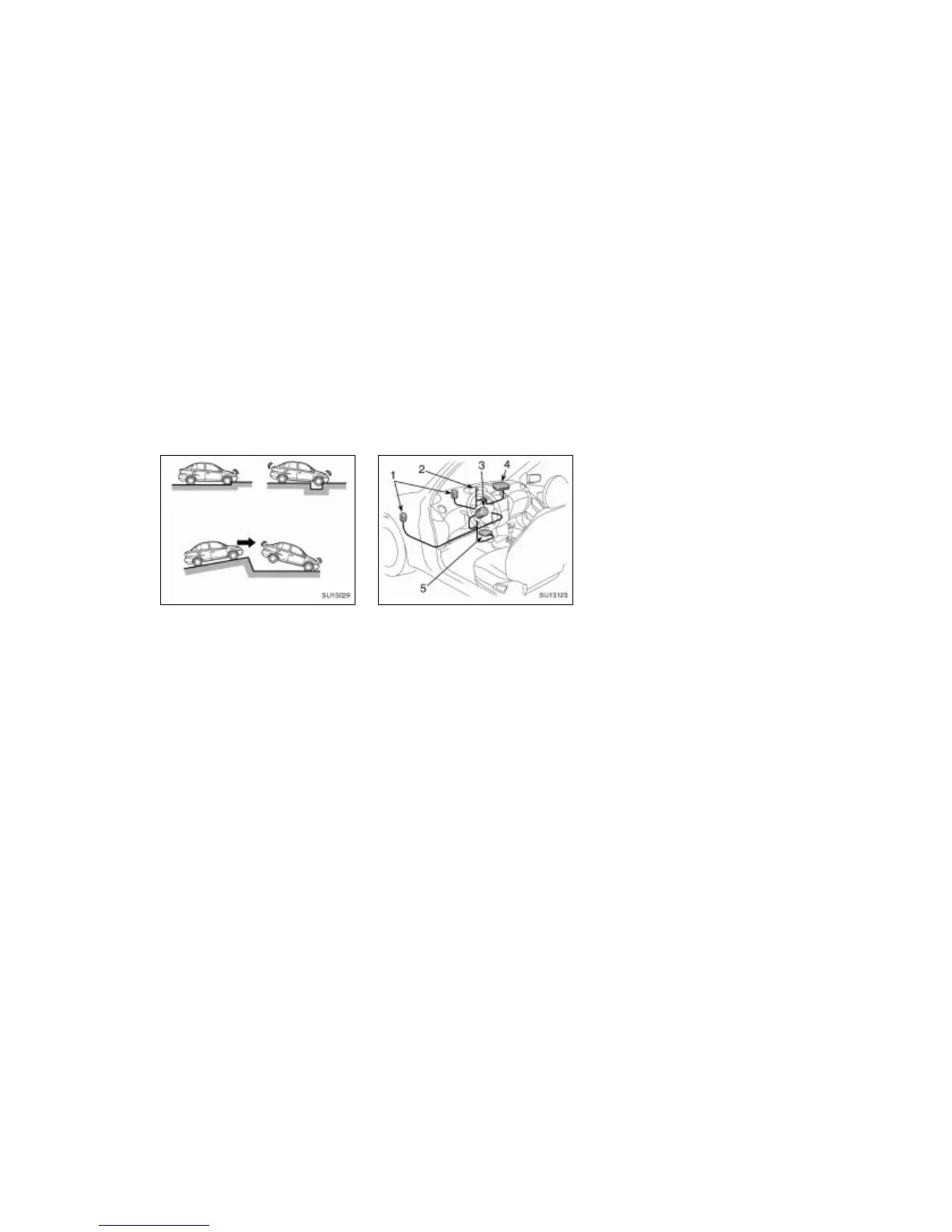

SU13123
The SRS airbag system mainly consists of
the following components, and their loca-
tions are shown in the illustration.
1. Front airbag sensors
2. SRS warning light
3. Airbag module for driver (airbag and
inflator)
4. Airbag module for front passenger (air-
bag and inflator)
5. Airbag sensor assembly
The airbag sensor assembly consists of a
safing sensor and airbag sensor.
The airbag sensors constantly monitor the
forward deceleration of the vehicle. If an
impact results in a forward deceleration
beyond the designed threshold level, the
system triggers the airbag inflators. At this
time a chemical reaction in the inflators
very quickly fills the airbags with non–tox-
ic gas to help restrain the forward motion
of the occupants. The airbags then quickly
deflate, so that there is no obstruction of
the driver’s vision should it be necessary
to continue driving.
When the airbags inflate, they produce a
loud noise and release some smoke and
residue along with non–toxic gas. This
does not indicate a fire. This smoke may
remain inside the vehicle for some time,
and may cause some minor irritation to
the eyes, skin or breathing. Be sure to
wash off any residue as soon as possible
to prevent any potential skin irritation with
soap and water. If you can physically and
safely exit the vehicle after a collision,
you should do so at the first opportunity.
