66
SX13004
Anchor brackets
Symbol

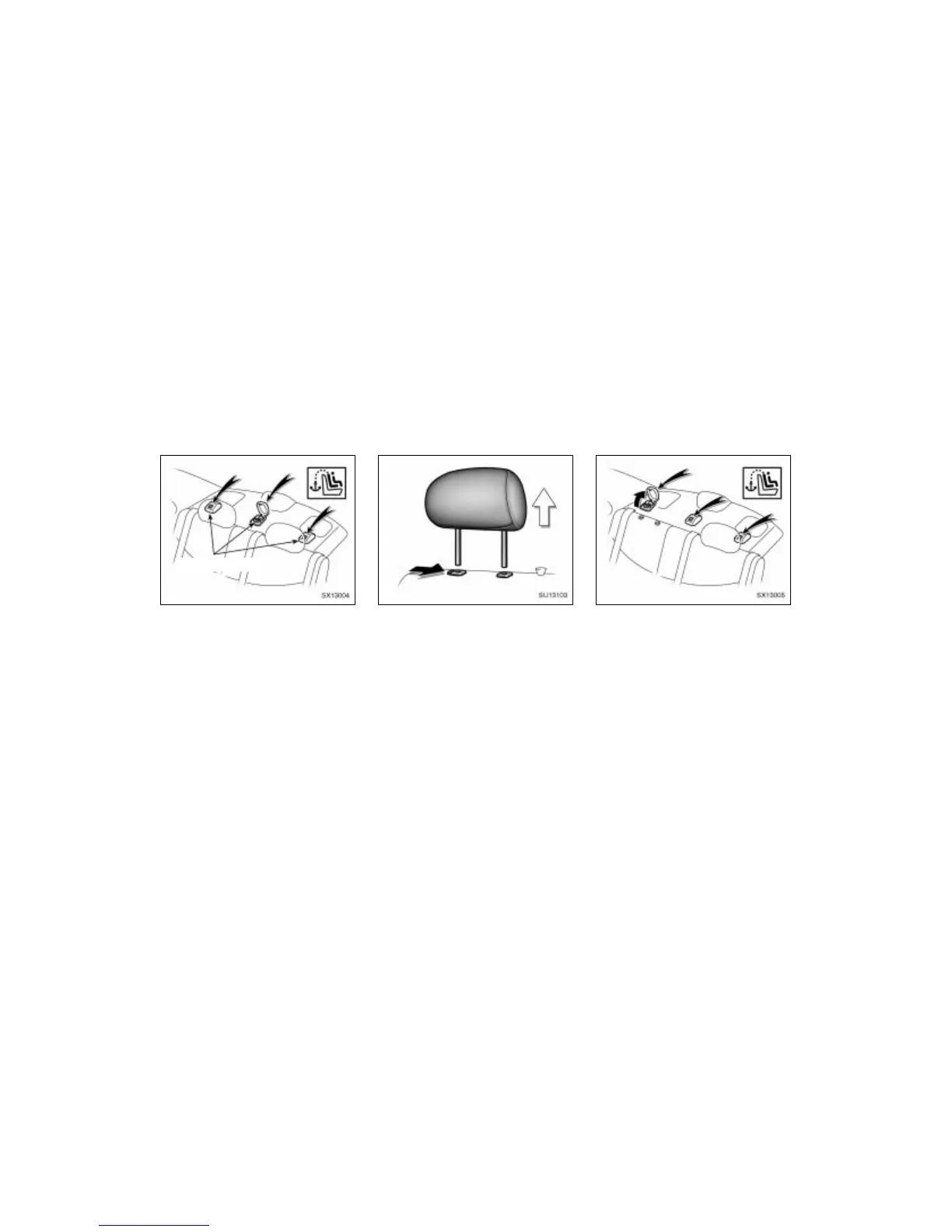

Use the anchor bracket on the back
panel to attach the top strap.
Anchor brackets are installed for each
rear seating position.
This symbol indicates the location of user
ready anchor brackets.
SU13103
TO USE THE ANCHOR BRACKET:
1. Remove the head restraint.
SX13005
2. Open the anchor bracket cover with
the mark shown in the illustration.
2003 ECHO from Aug. ’02 Prod. (OM52481U)
