2005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
SU21014a

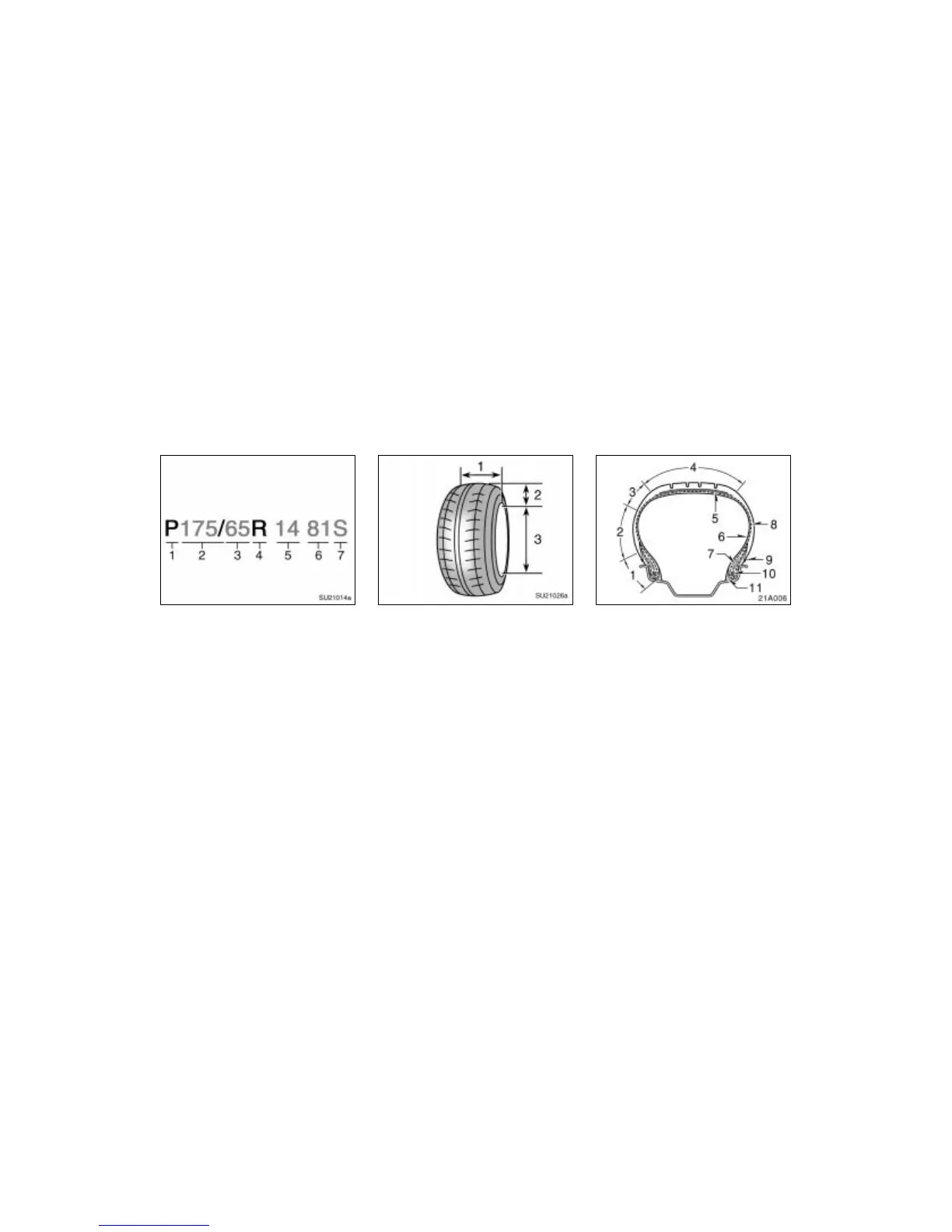

This illustration indicates typical tire
size.
1. Tire use (P=Passenger car,
T=Temporary use)
2. Section width (in millimeters)
3. Aspect ratio (tire height to section
width)
4. Tire construction code (R=Radial,
D=Diagonal)
5. Wheel diameter (in inches)
6. Load index (2 digits or 3 digits)
7. Speed symbol (alphabet with one
letter)
SU21026a
1. Section width
2. Tire height
3. Wheel diameter
1. Bead
2. Sidewall
3. Shoulder
4. Tread
5. Belt
6. Inner liner
7. Reinforcing rubber
8. Carcass
9. Rim lines
10.Bead wires
11.Chafer
04 06.07
—Tire size —Name of each section of tire
