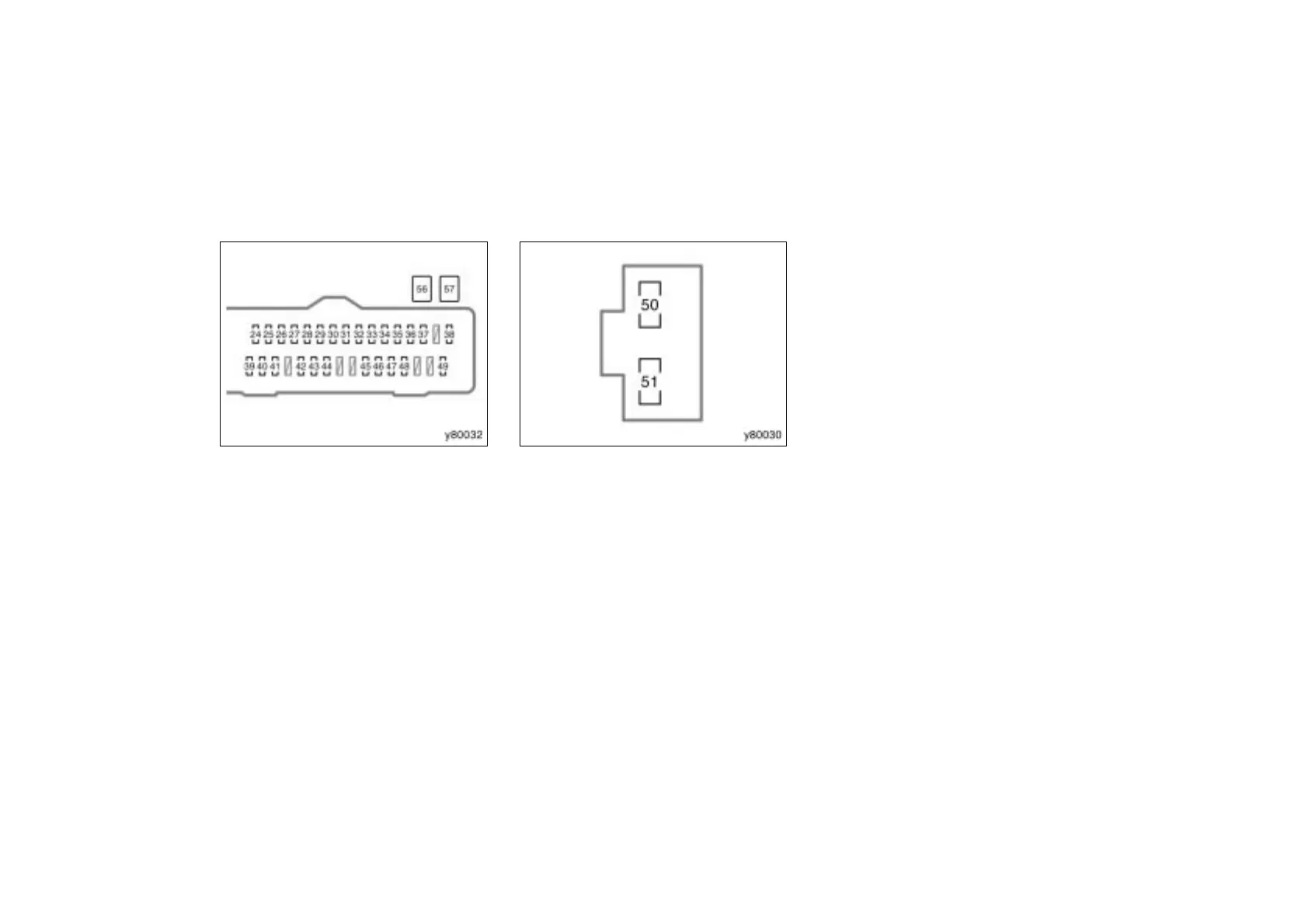

Instrument panel (driver’s side)
Fuses (type A)
1. ETCS 10 A: Multiport fuel injection
system/sequential multiport fuel injec-
tion system
2. EFI NO. 1 20 A: Multiport fuel injection
system/sequential multiport fuel injec-
tion system, “EFI NO. 2” fuse
3. H- LP RL 15 A: Right- hand headlight
(low beam)
4. DRL 20 A: Daytime running light sys-
tem, “H- LP RH” and “H- LP LH” fuses
5. ALT- S 7.5 A: Charging system
6. H- LP LL 15 A: Left- hand headlight
(low beam), front fog lights
Instrument panel (passenger’s side)
7. DOOR NO. 2 25 A: Power door lock
system
8. HAZ 15 A: Turn signal lights, emergen-
cy flashers
9. RAD NO. 3 30 A: Audio system
10. A/F 25 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
11. HORN 10 A: Horns
12. EFI NO. 2 10 A: Multiport fuel injection
system/sequential multiport fuel injec-
tion system
13. DOME 10 A: Personal lights, vanity
lights, door courtesy lights, luggage
compartment light, ignition switch light,
multi- information display
14. ECU- B 10 A: Power sliding door, air
conditioning system, power windows,
multiplex communication system, meter
and gauge, wireless remote control
system
15. RAD NO. 1 20 A: Audio system, rear
seat entertainment system
16. SPARE 15 A: Spare fuse
17. SPARE 20 A: Spare fuse
18. SPARE 30 A: Spare fuse
19. SPARE 30 A: Spare fuse
20. SPARE 7.5 A: Spare fuse
21. H- LP RH 10 A: Right- hand headlight
22. H- LP LH 10 A: Left- hand headlight
23. RSE 7.5 A: Rear seat entertainment
system
24. MIR HTR 10 A: Outside rear view mir-
ror heaters
25. RAD2 7.5 A: Audio system, navigation
system, rear seat entertainment system
26. PWR OUTLET 15 A: Power outlets
27. CIG 15 A: Cigarette lighter
