Jumper
cable
Positive
terminal
(“+” mark)
Positive terminal
(“+” mark)
Discharged battery
Booster
battery

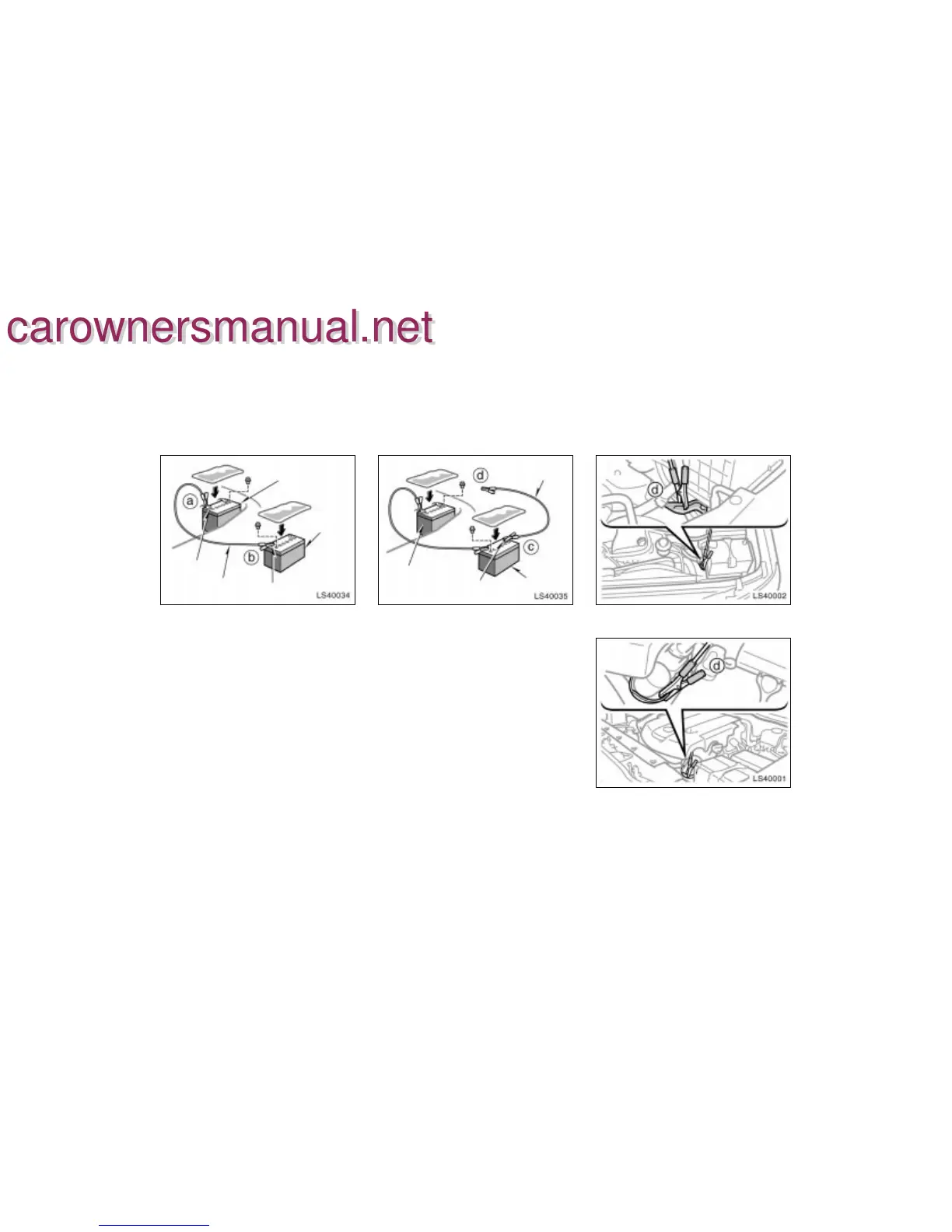

4. Make the cable connections in the or-
der a, b, c, d.
a. Connect the clamp of the positive
(red) jumper cable to the positive (+)
terminal on the discharged battery.
b. Connect the clamp at the other end
of the positive (red) jumper cable to
the positive (+) terminal on the booster
battery.
LS40035
Discharged battery
Negative terminal
(“- ” mark)
Jumper cable
Booster
battery
c. Connect the clamp of the negative
(black) jumper cable to the negative (–)
terminal on the booster battery.
d. Connect the clamp at the other end
of the negative (black) jumper cable to
a solid, stationary, unpainted, metallic
point of the vehicle with the discharged
battery.
The recommended connecting points
are shown in the following illustrations:
LS40002
Connecting point for 2TR- FE engine
LS40001
Connecting point for 1GR- FE engine
