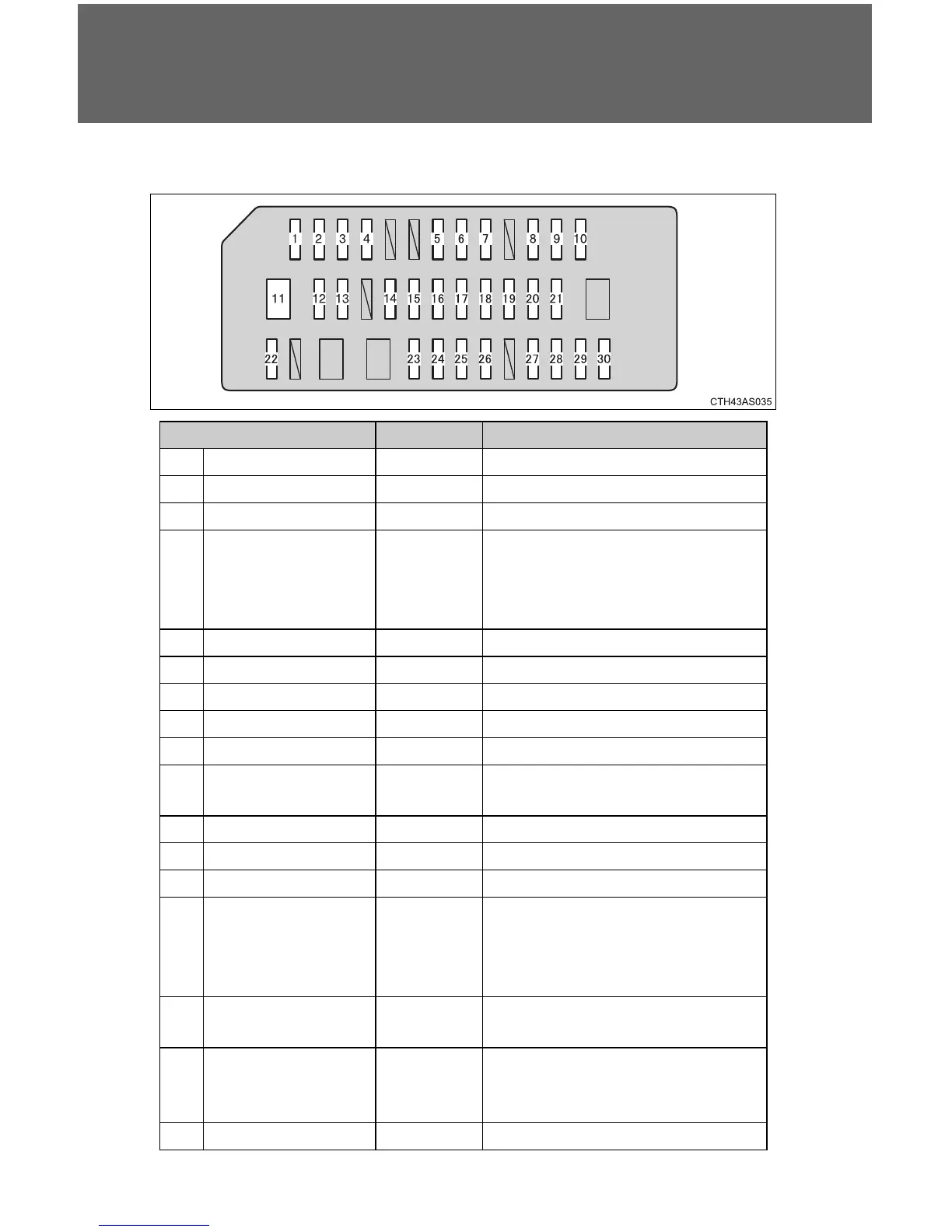

4-3. Do-it-yourself maintenance
■ Driver’s side instrument panel
Fuse Ampere Circuit
1 TAIL 10 A Stop/tail lights
2 PANEL 7.5 A Instrument panel lights
3 GAUGE 7.5 A Meter and gauge
4 IGN 10 A
Multiport fuel injection system/
sequential multiport fuel injec-
tion system, air bag system,
smart key system
5 WASHER 20 A Wiper and washer
6 WIP 30 A Wiper and washer
7 S/ROOF 25 A Electric moon roof
8 DOOR RR 25 A Power windows
9 DOOR D 25 A Power windows
10 DOOR BACK 30 A
Multiplex communication sys-
tem
11 DOOR P 30 A Power windows
12 P/SEAT FR 30 A Front passenger's power seat
13 S/HTR FR 20 A Seat heater system
14 ECU-IG NO.2 10 A
Air conditioning system, multi-
port fuel injection system/
sequential multiport fuel injec-
tion system
15 IG1 7.5 A
Turn signal lights, emergency
flashers
16 ECU-IG NO.1 10 A
Vehicle stability control sys-
tem, tire pressure warning sys-
tem, steering sensor
17 DOOR 7.5 A Power windows
