OVERVIEW

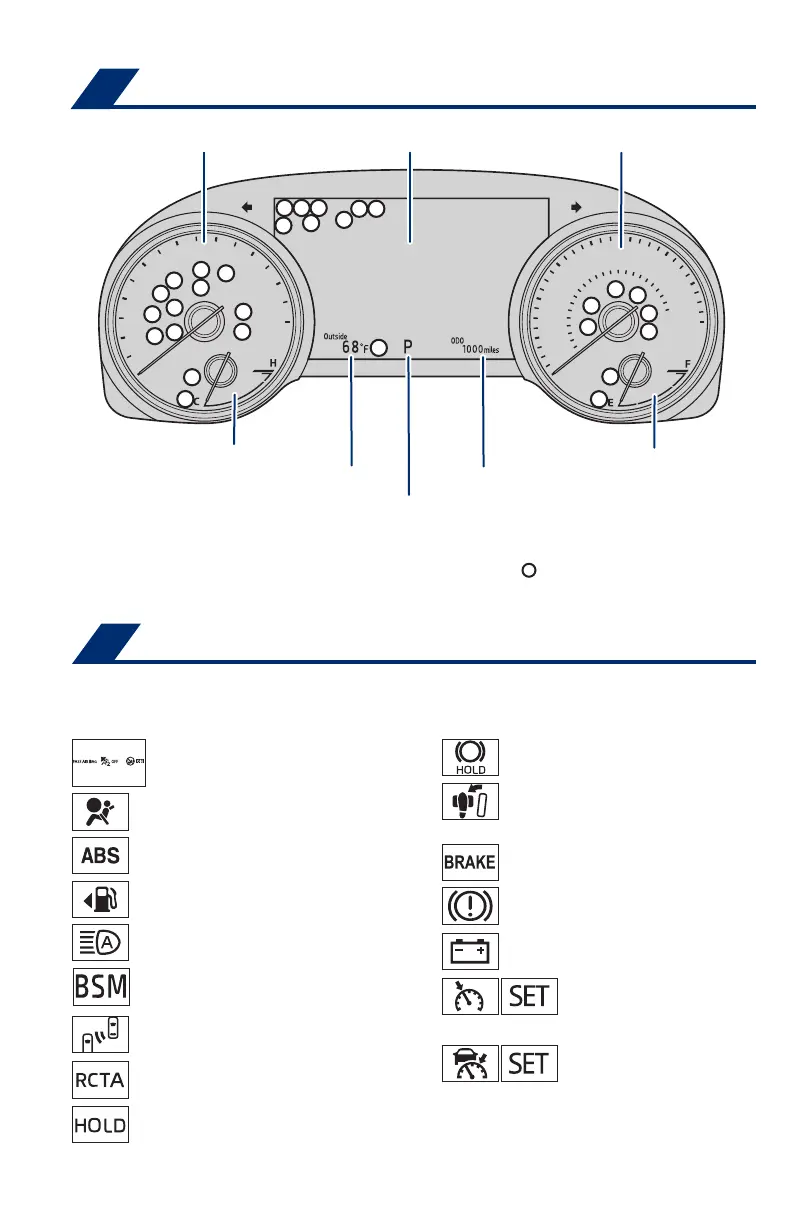

Instrument cluster
For details, refer to “Indicators and warning lights,” Section 2, 2019 Owner’s
Manual.
Tachometer SpeedometerMulti-Information Display
Engine coolant temperature gauge
Outside temperature display Odometer and trip meter display
Shift position and shift range display
Fuel gauge
1
If the indicator does not turn off within a few seconds of starting the engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2
If the indicator flashes, there may be a malfunction. Refer to the Owner’s Manual.
3
If the indicator flashes, it indicates that the system is operating.
4
If equipped.
Airbag SRS warning
1
Arrow direction indicates fuel
tank door position
Automatic High Beam (AHB)
indicator
Anti-lock Brake System (ABS)
warning
1
“AIR BAG ON/OFF” indicator
1
Brake hold operated indicator
1
Brake hold standby indicator
1
Brake system warning
1
Blind Spot Monitor (BSM) indicator
BSM w/Rear Cross Traffic Alert
(RCTA) Indicator
BSM outside rear view mirror
indicators
Brake Overrride System/Drive-Start
Control/Intelligent Clearance Sonar
(ICS)
4
warning
Brake system warning
(yellow indicator)
1
Charging system warning
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Full-Speed Dynamic Radar
Cruise Control (DRCC)
indicator/DRCC SET indicator
Indicator symbols
Service indicators and reminders
