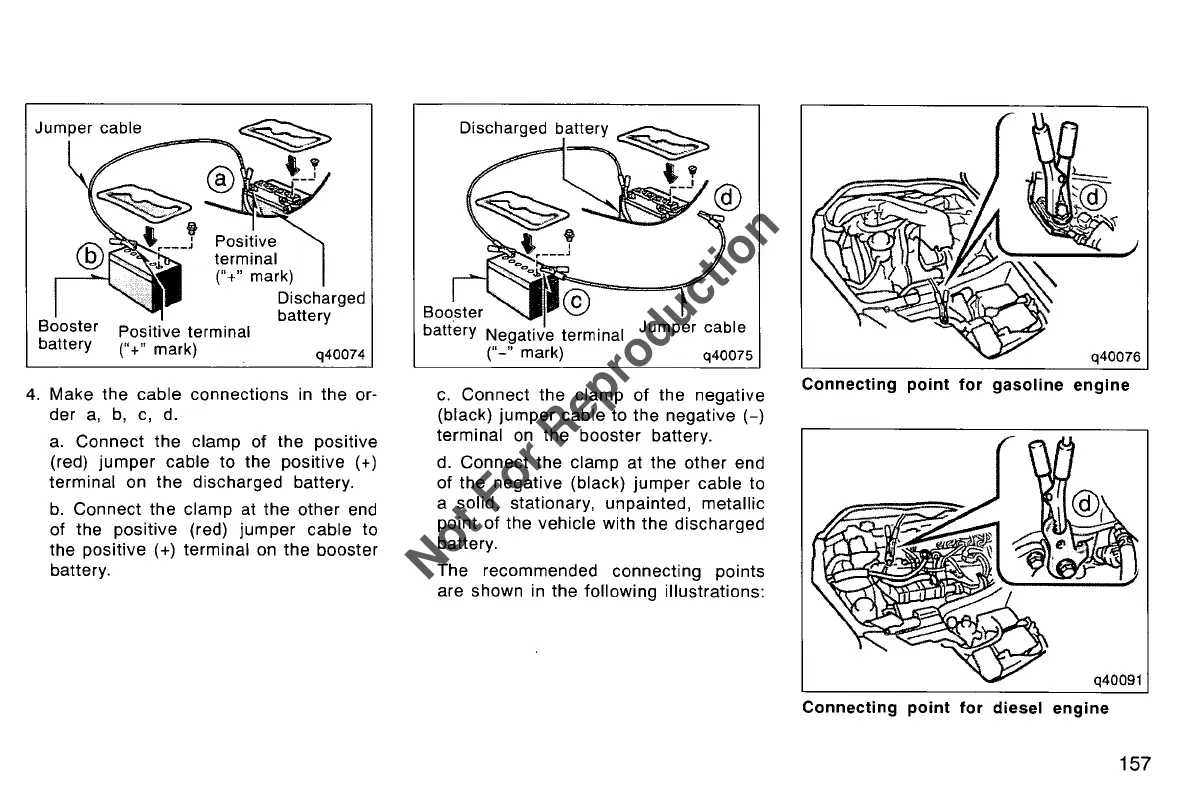

Jumper cable
Booster
battery
Positive terminal
("+" mark)
q40074
Booster
battery Negative terminal Jumper cable
("-"
mark) q40075
4.
Make the cable connections in the or-
der
a,
b,
c,
d.
a.
Connect the clamp of the positive
(red) jumper cable to the positive
(+)
terminal on the discharged battery.
b.
Connect the clamp at the other end
of the positive (red) jumper cable to
the positive (+) terminal on the booster
battery.
c.
Connect the clamp
of
the negative
(black) jumper cable to the negative
(-)
terminal
on
the booster battery.
d.
Connect the clamp at the other end
of the negative (black) jumper cable to
a solid, stationary, unpainted, metallic
point of the vehicle with the discharged
battery.
The recommended connecting points
are shown in the following illustrations:
Connecting point for gasoline engine
Connecting point for diesel engine
157
