Negative
terminal
("-"
mark)
©
"-
Booster
battery
H40022

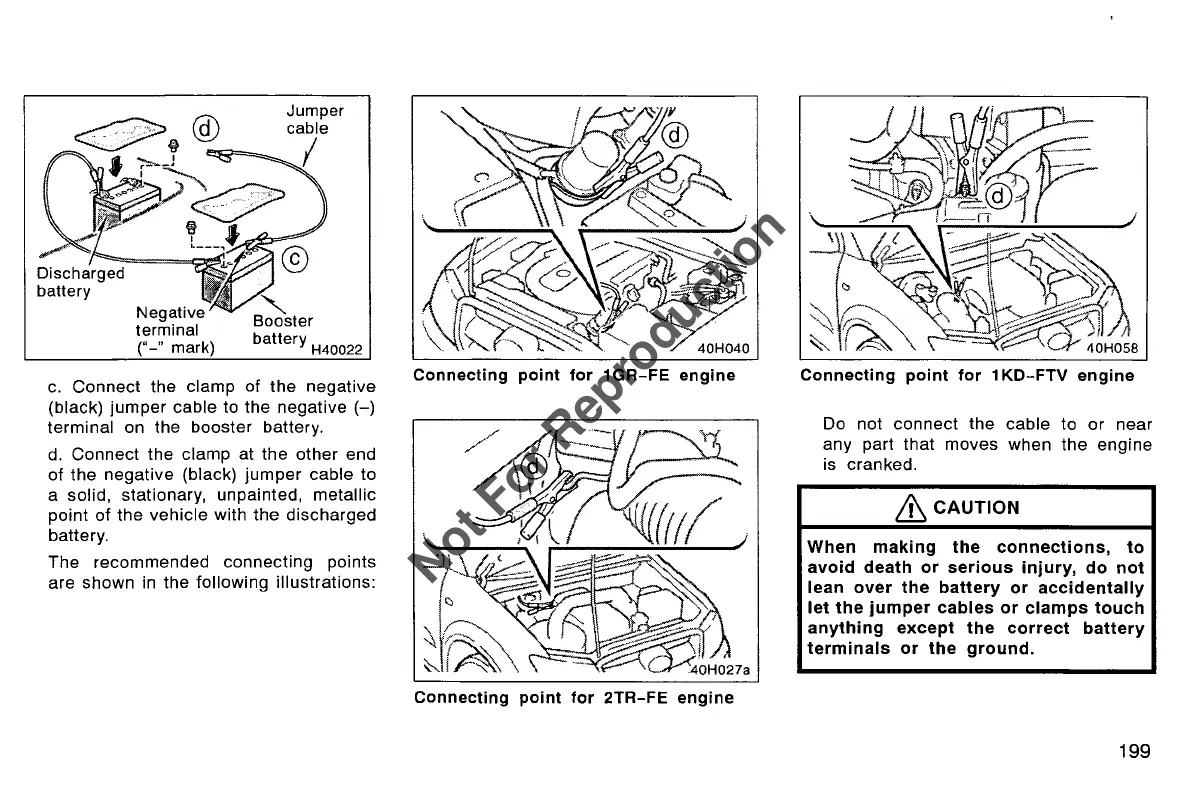

c.
Connect
the clamp of
the
negative
(black)
jumper
cable to the negative
(-)
terminal
on the booster battery.
d.
Connect
the
clamp
at
the
other
end
of
the
negative
(black)
jumper
cable to
a solid, stationary, unpainted,
metallic
point
of
the
vehicle
with
the
discharged
battery.
The recommended
connecting
points
are shown in
the
following illustrations:
Connecting point for 1
GR-FE
engine
Connecting point for
2TR-FE
engine
Connecting point for 1
KD-FTV
engine
Do not
connect
the
cable
to
or
near
any part
that
moves when
the
engine
is cranked.
& CAUTION
When making
the
connections,
to
avoid death or
serious
injury,
do
not
lean
over
the
battery
or
accidentally
let
the
jumper
cables
or
clamps
touch
anything
except
the
correct
battery
terminals
or
the
ground.
199
