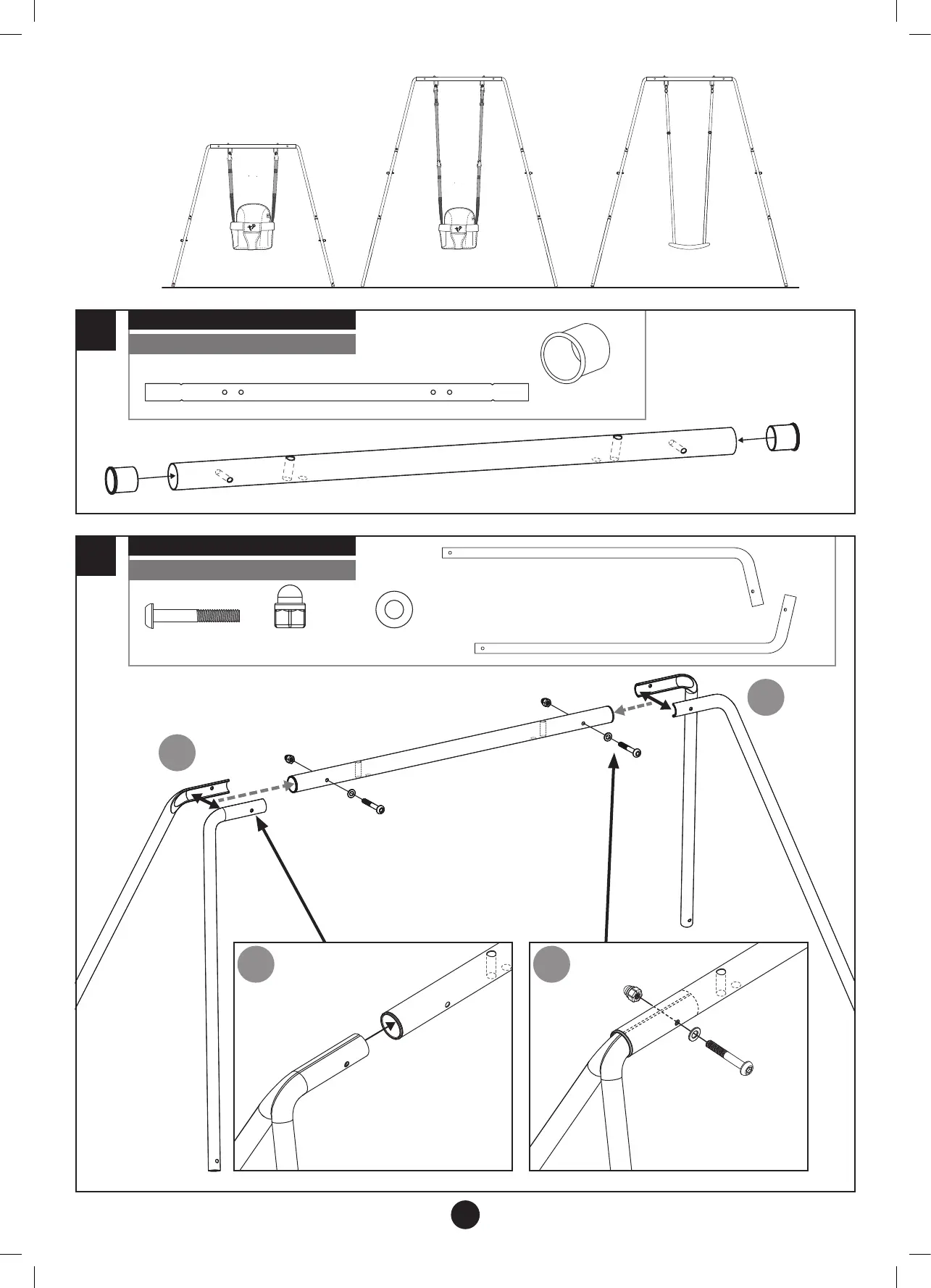

TP active fun TP509 - Frame Assembly; Step 1: Initial Frame Connection

8
TP509 Small to Tall Swing Frame
1
FC0130 x1
PM1903 x2
2
FC0123 x2
FC0124 x2
1
1
2 3
M6 x 42mm
FA5199 x2
M6
FA5192 x2
M6
FA9764 x2
Low Height Frame Assembly
Full Height Frame Assembly
Low Height Frame Assembly
Full Height Frame Assembly
