TP-Link JetStream T2700G-28TQ - Page 126

114
Choose the menu Spanning Tree→MSTP Instance→Instance Port Config to load the following
page.

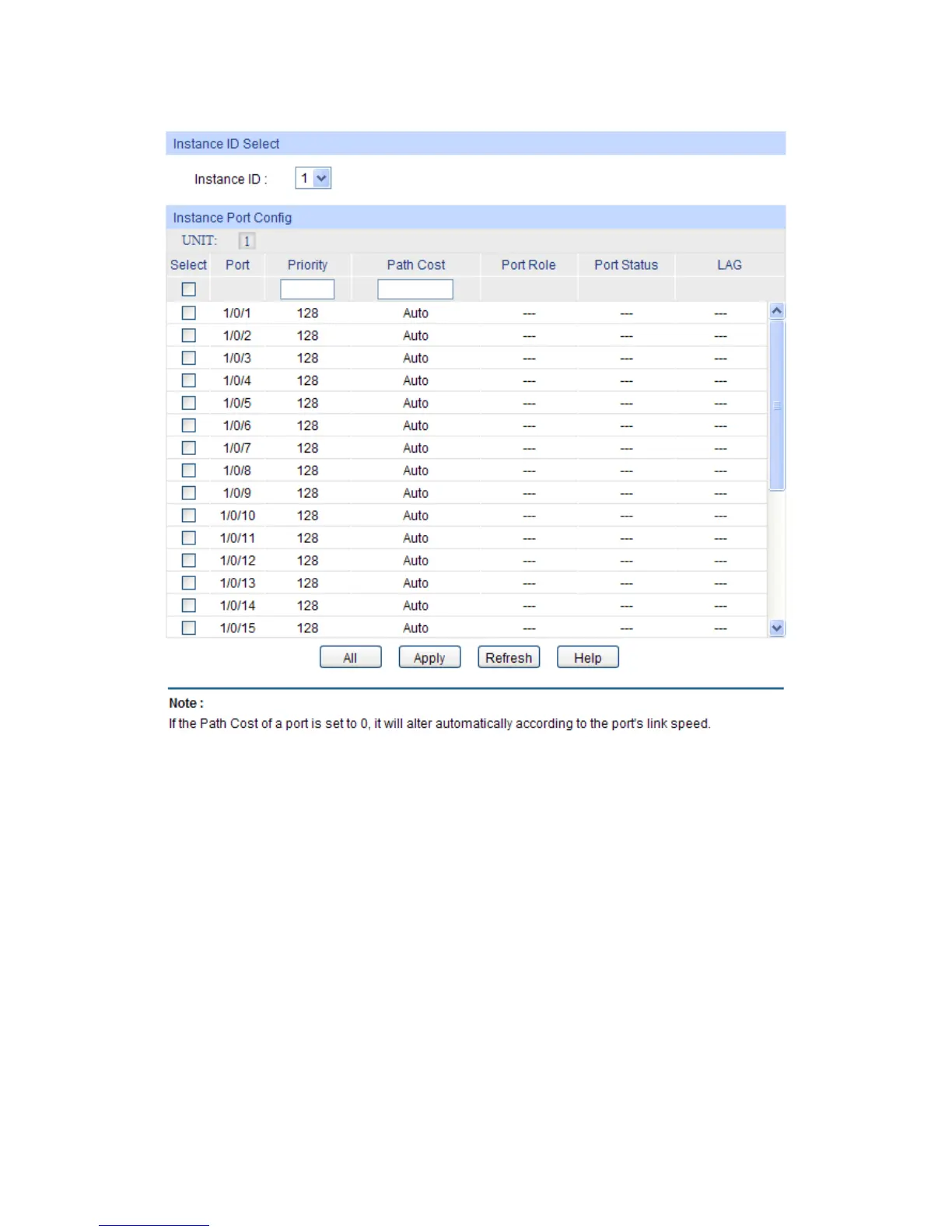

Figure 8-9 Instance Port Config
The following entries are displayed on this screen:

Instance ID Select
Instance ID: Select the desired instance ID for its port configuration.

Instance Port Config
UN IT: Select the unit ID of the desired member in the stack.
Select: Select the desired port to specify its priority and path cost. It is
multi-optional.
Port: Displays the port number of the switch.
Priority:
Enter the priority of the port in the instance. It is an important criterion
on determining if the port connected to this port will be chosen as the
root port.
