TP-Link T1700G-28TQ - RADIUS Config

217
13.5.3 RADIUS Config
RADIUS (Remote Authentication Dial-In User Service) server provides the authentication service
for the switch via the stored client information, such as the user name, password, etc, with the
purpose to control the authentication and accounting status of the clients. On this page, you can
configure the parameters of the authentication server.
Choose the menu Network Security→802.1X→RADIUS Config to load the following page.

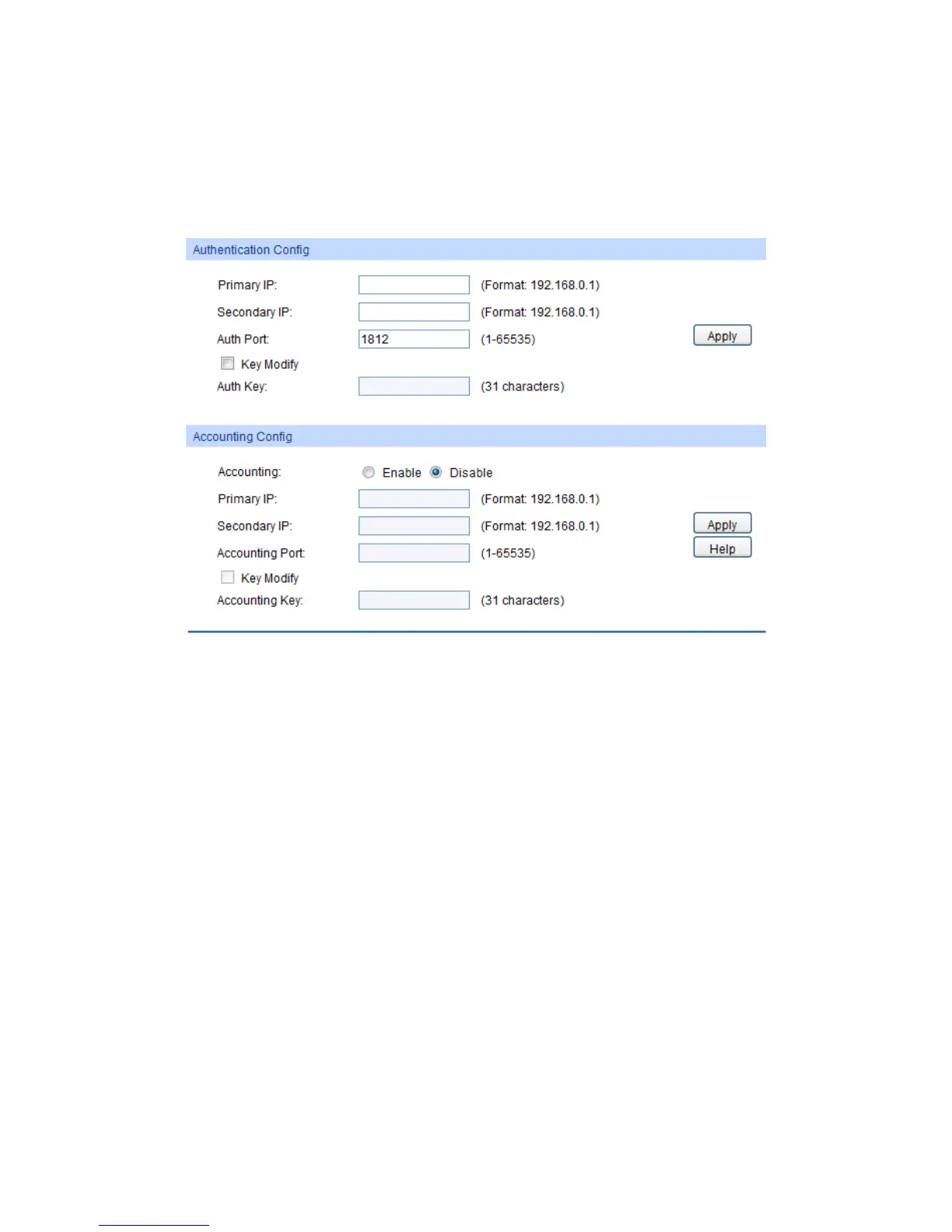

Figure 13-23 Radius Server
The following entries are displayed on this screen:

Authentication Config
Primary IP:
Enter the IP address of the authentication server.
Secondary IP:
Enter the IP address of the alternate authentication server.
Auth Port:
Set the UDP port of authentication server(s). The default port is
1812.
Key Modify:
Select to modify the authentication key.
Auth Key:
Set the shared password
for the switch and the authentication
servers to exchange messages.

Accounting Config
Accounting:
Enable/Disable the accounting feature.
Primary IP:
Enter the IP address of the accounting server.
Secondary IP:
Enter the IP address of the alternate accounting server.
Accounting Port:
Set the UDP port of accounting server(s). The default port is 1813.
Key Modify:
Select to modify the accounting key.
