1. Click System > Quality of Service > Queue Mapping > DSCP to Queue. The DSCP to Queue Page opens:

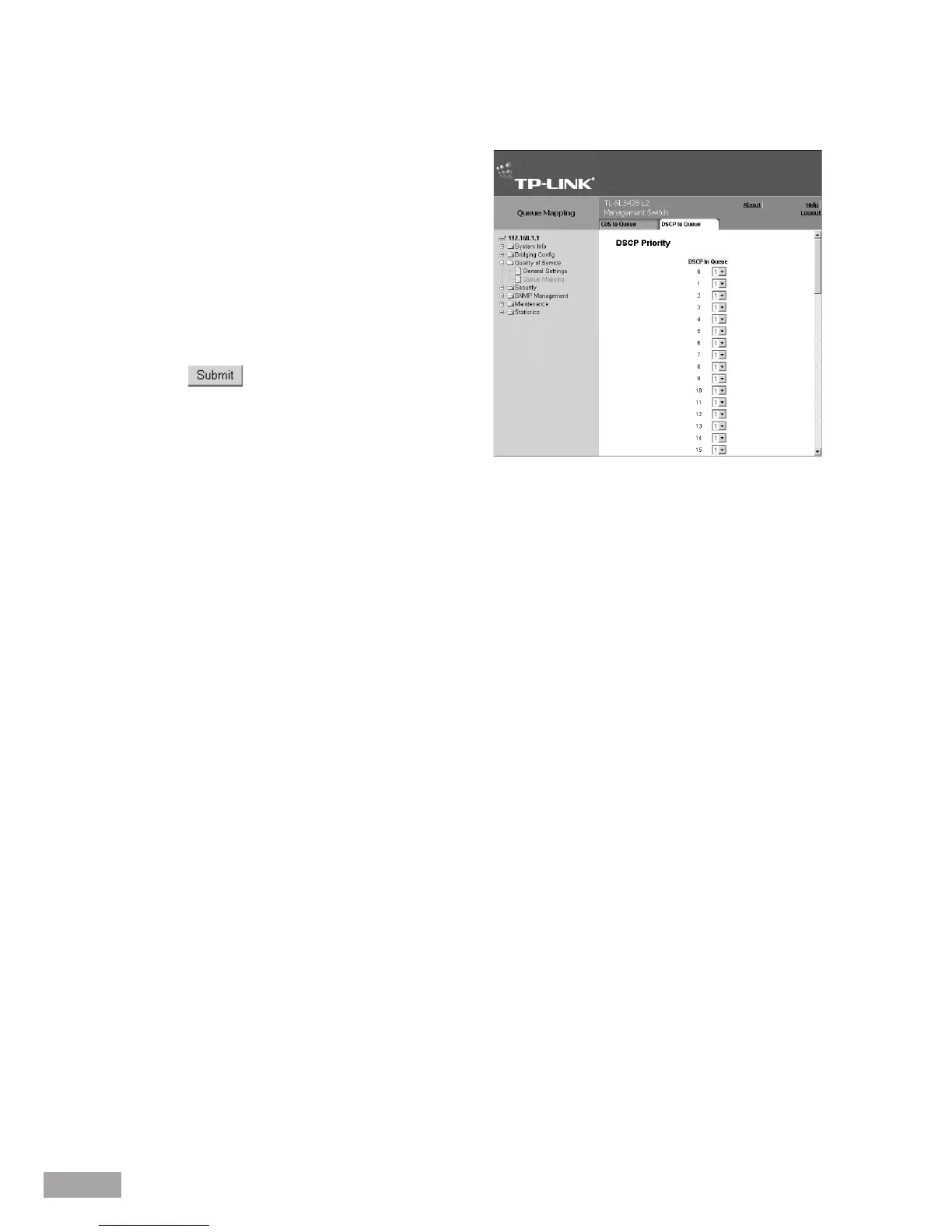

Figure 122: DSCP to Queue Page
The CoS Settings Page page contains the following elds:
DSCP In — Displays the incoming packet’s DSCP
value.
Queue — Defines the traffic forwarding queue to
which the DSCP priority is mapped. Four trafc priority
queues are supported.
2. Modify the Queue values.
3. Click . The DSCP to Queue mapping is
updated.


