TP Toys Active Fun Knightswood Single Swing Frame User Manual

TP802 Double Knightswood Swing Frame
9
3
Stage
M8 Hook bolt x4
FA9774
M8
Nylon Insert Nut
FA5174
x4
M8 x 25mm
Large washer
FA7184
x4
M8 Nylon Insert Nut
M8 Washer

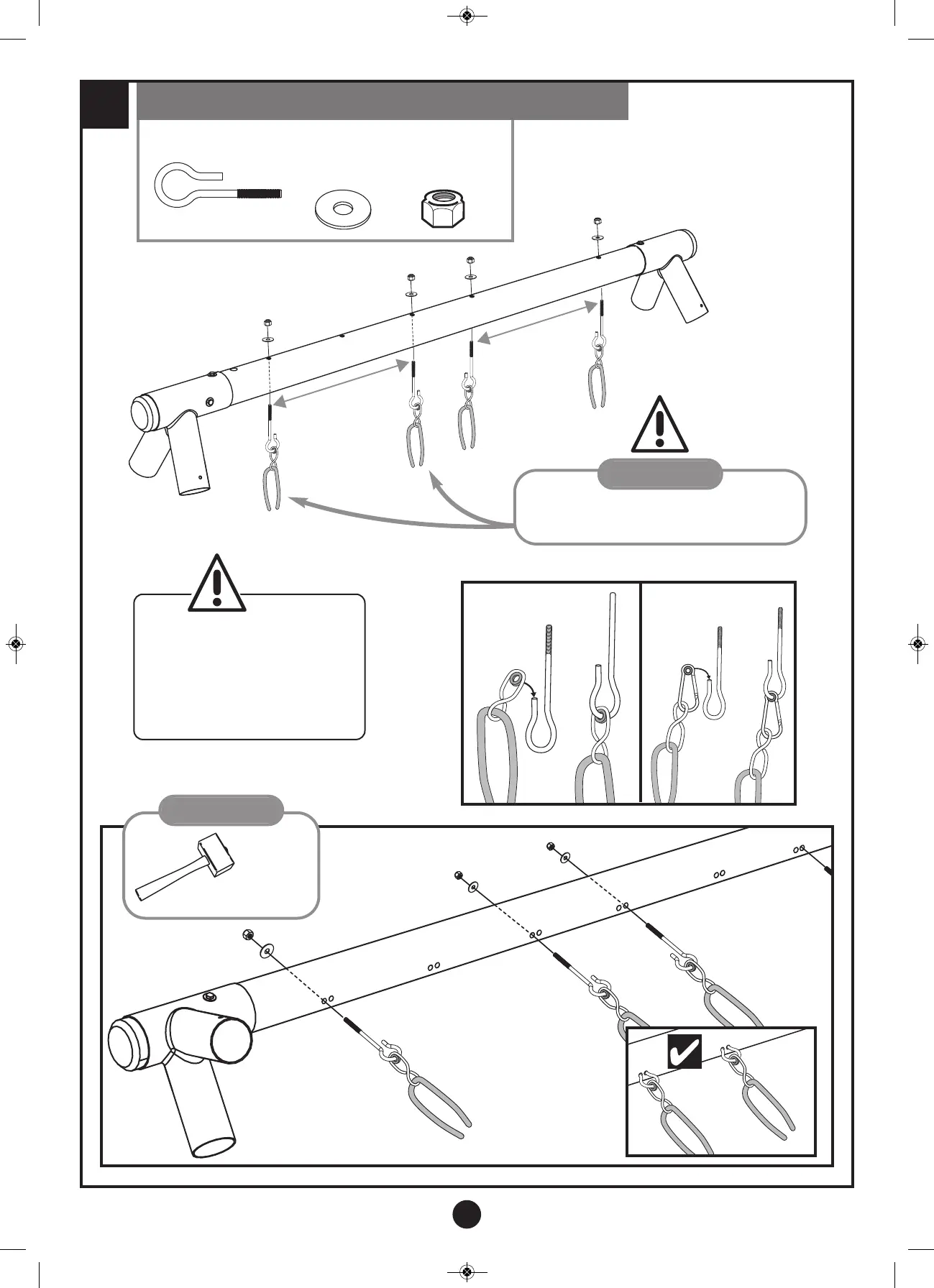

ASSEMBLY TIP
Use Mallet to
firmly locate
hook bolt in
pilot hole
Seat with
‘S’ hook
Seat with
‘Snap Shackle’
‘S’ hook
Snap
Shackle
ASSEMBLY TIP
Attach swing seat (‘S’ hook or Snap Shackle) to
M8 Hook bolt before inserting Hook bolt to top bar
(see below)
M8 Nylon Insert Nut
M8 Washer
M8 Hook bolt
M8 Hook bolt
Refer to separate Swing accessory
instructions for correct seat fixing eg:
Hook Bolt or Duo Ride Brackets!
TP879 Skyride/TP933 Pirate Boat
require TP774 Duo Ride Brackets
(optional purchase).
Warning
S
ingle Swing Accessory
f
ixing postion
S
ingle Swing Accessory
f
ixing postion
TP Knightswood Swing Frames
M8 Hook bolt
MW0203
