TP TP510 - Step-by-Step Assembly Guide; Initial Frame Assembly

9
TP Single/Double Metal Swing Set
1
TP511 & TP525
2
TP510 & TP524 - MT5303
or
TP511 & TP525 - MT5304 & MT5305
TP510 & TP524
TP511 & TP525

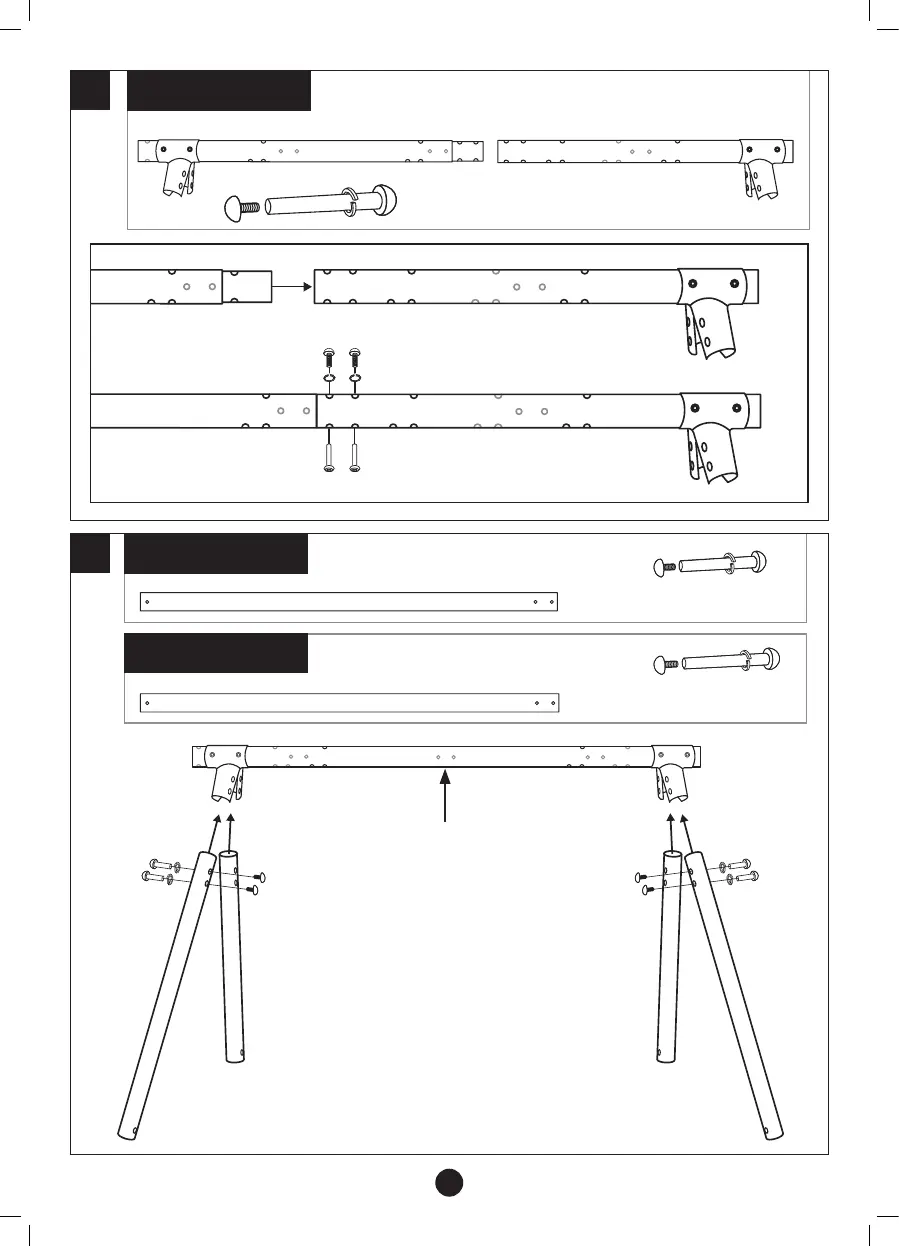

MT5305 Top Bar - B 935mm x1
MT5304 Top Bar - A 1028mm x1
M10 x 50mm
FA3847 x2
MT5298 Leg - A 1150mm x4
M8 x 45mm
FA3845 x8
M10 x 52mm
FA3846 x8
MT5300 Leg - A 1150mm x4
