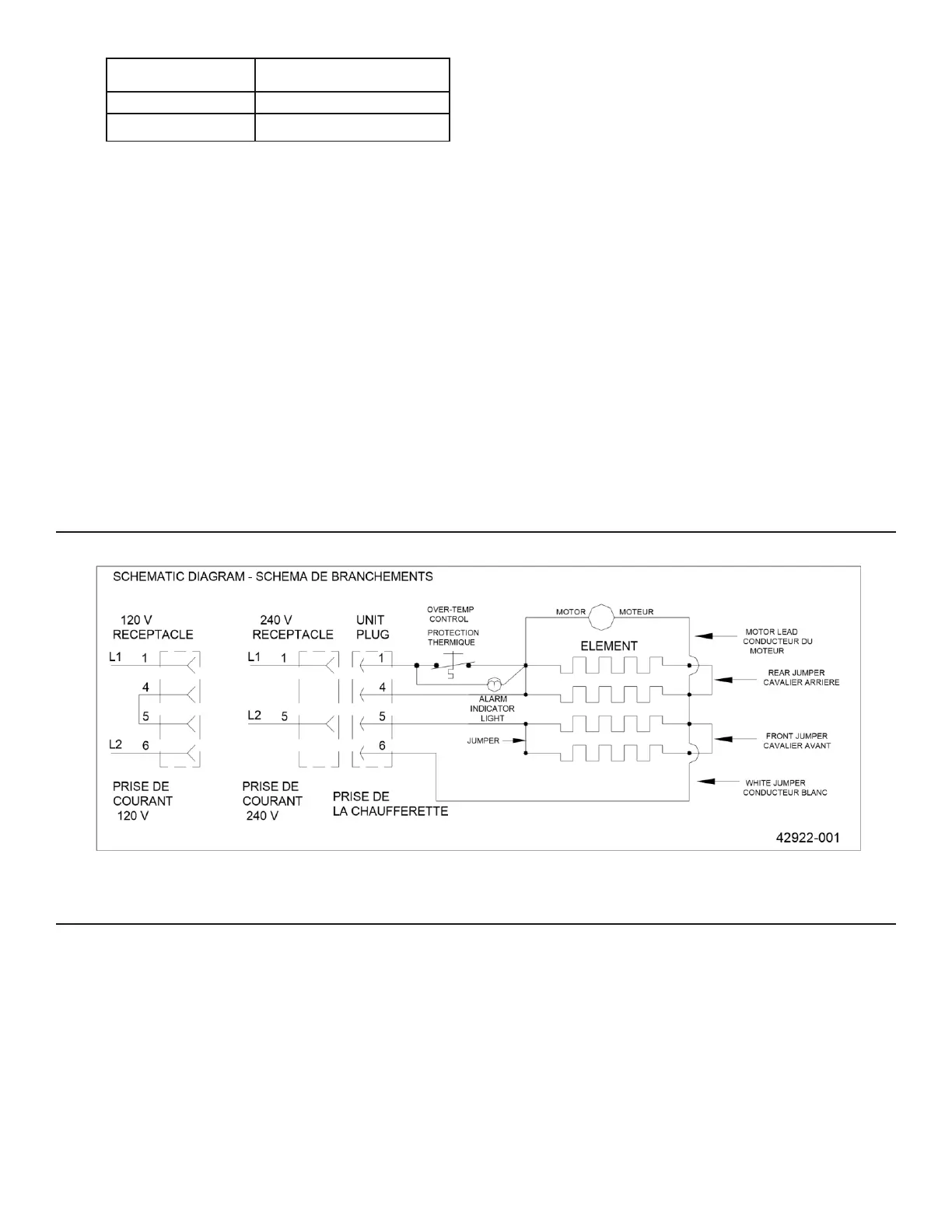

A. 240/208 VOLT 1000/750 WATTS
REMOVE INSULATING COVERS FROM RIGHT HAND TERMINALS OF HEATING ELEMENTS. REMOVE TWO YELLOW
JUMPERS CONNECTING TWO FRONT AND TWO REAR TERMINALS. CAUTION: WHITE LEAD MUST REMAIN FIRMLY IN
PLACE ON SECOND TERMINAL. BLACK MOTOR LEAD MUST REMAIN FIRMLY IN PLACE ON THIRD TERMINAL. REPLACE
INSULATING COVER AND SCREWS, PROCEED AS IN STEP 5.
B. 120 VOLT 1500 WATTS
UNPLUG HEAT UNIT FROM OUTLET BOX RECEPTACLE. REMOVE 240/208 VOLT RECEPTACLE PROVIDED WITH HEATER.
REMOVE INSULATING COVER FROM RIGHT HAND TERMINAL OF HEATING ELEMENTS. REMOVE YELLOW JUMPER
CONNECTING FRONT TWO ELEMENT TERMINALS. CAUTION: WHITE LEAD MUST REMAIN FIRMLY IN PLACE ON SECOND
TERMINAL. REPLACE INSULATING COVER, UNIT IS NOW READY FOR WIRING.
C. 120 VOLT 1000 WATTS
REMOVE INSULATING COVER FROM RIGHT HAND TERMINALS OF HEATING ELEMENTS. REMOVE TWO YELLOW
JUMPERS CONNECTING TWO FRONT AND TWO REAR TERMINALS. CAUTION: WHITE LEAD MUST REMAIN FIRMLY IN
PLACE ON SECOND TERMINAL. REPLACE INSULATING COVER AND PROCEED AS IN STEP 7B ABOVE.
8. AFTER SELECTING VOLTAGE AND WATTAGE REQUIREMENTS IN STEP 7 ABOVE, WIRE SERVICE CABLE TO RECEPTACLE
WITH APPROVED CONNECTORS.
9. REPLACE COVER AND SCREWS. PUSH UNIT INTO OPENING, PUT GRILLE IN PLACE AND ATTACH UNIT TO CABINETUSING
TWO SCREWS PROVIDED.
1. REMOVE 1/2” (12.7MM) DIAMETER KNOCKOUT IN FRONT OF OUTLET BOX AND GRILLE.
2. ATTACH THERMOSTAT TO OUTLET BOX WITH NUT PROVIDED.
3. CONNECT IN SERIES BETWEEN SERVICE CABLE AND RECEPTACLE, MAINTAINING POLARITY.
USE APPROVED CONNECTORS.
4. INSTALL FRONT GRILLE. PUSH KNOB ON THERMOSTAT SHAFT, TURN THE KNOB COUNTERCLOCKWISE UNTIL IT STOPS.
5. POSITION THE CIRCULAR NUMBERED INSERT INTO KNOB RECESS, WITH “1” AT THE BOTTOM FOR SINGLE POLE OR “0”
FOR DOUBLE POLE THERMOSTATS.
6. POSITION THE TRIANGULAR POINTER ON THE FRONT GRILLE PANEL DIRECTLY BELOW THE “1” OR “0”.
REV 5/14
