3.0 OPERATION
18
Apply power from the source to the T240 Autotransformer.
Switch the L1/L2 breaker to ON. The loads are now energized by the
T240.
NOTE: The switch on the lower breaker controls both breakers. If either breaker
receives an over-current condition, both breakers will trip.
If additional branch circuit breakers are installed, switch them to ON if
desired.

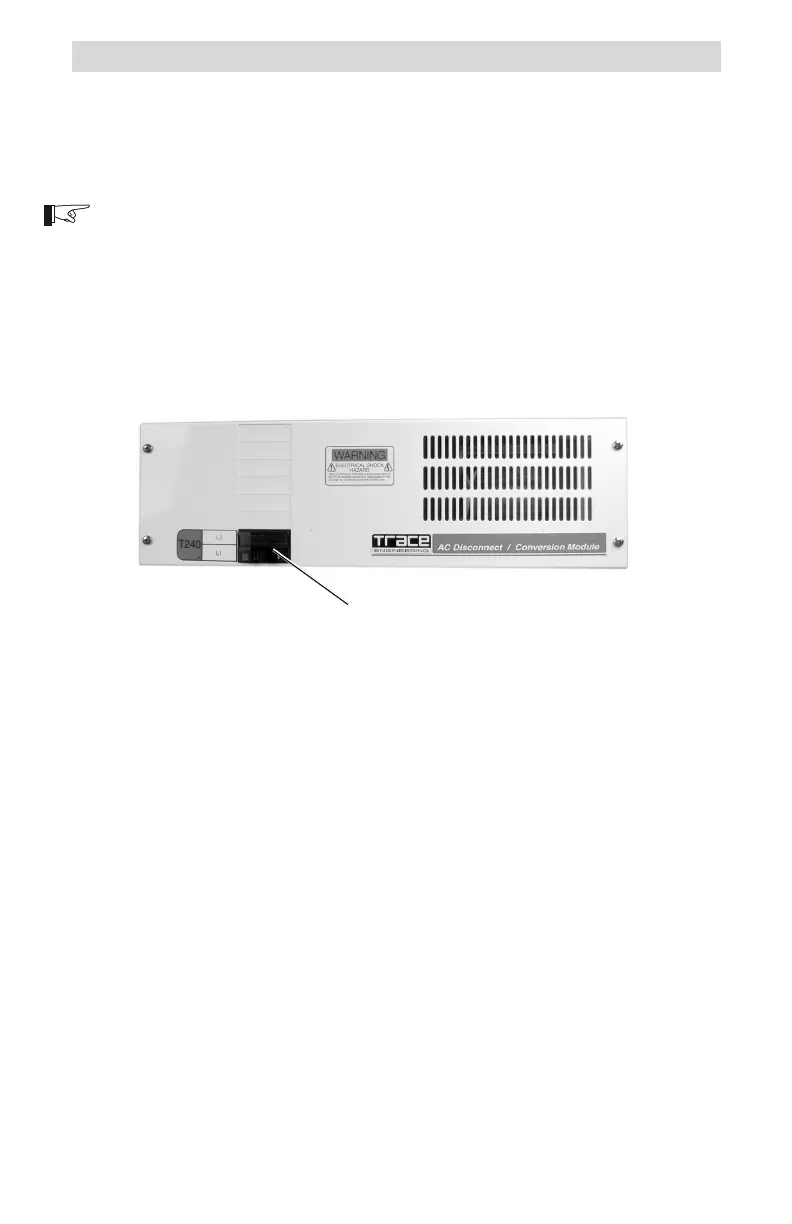

L1/L2 Circuit Breaker
Figure 15
Circuit Breaker Location
