CHALLENGER 200UTV P. D. I
13

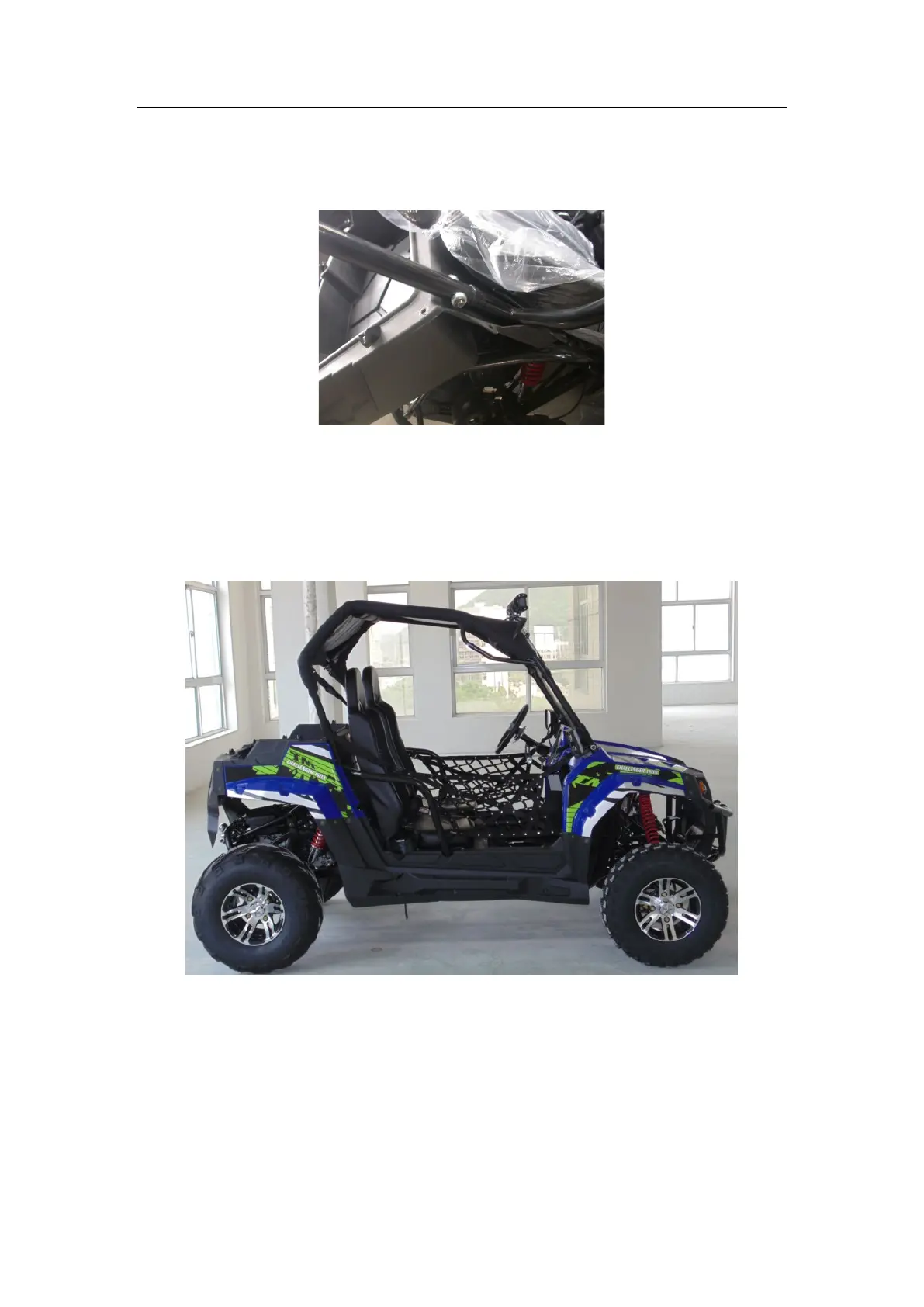

2.12 Install the rear roll cage bar: put the rear roll cage bar onto the mount
posts of the frame, fix it using M8x55 bolt, R-washer and M8 nut.
2.13 Joint the front and rear roll cage: joint the roll cages and connect
them with M8x30 bolt and M8 nut. The recommended torque is
22-29NM
2.14 Install the safety belt: find the safety belt mounting plate welded on
the frame near the seats, mount the safety belt on the mounting plates,
and tighten the safety belt nuts.
