CHALLENGER 200UTV P. D. I
16

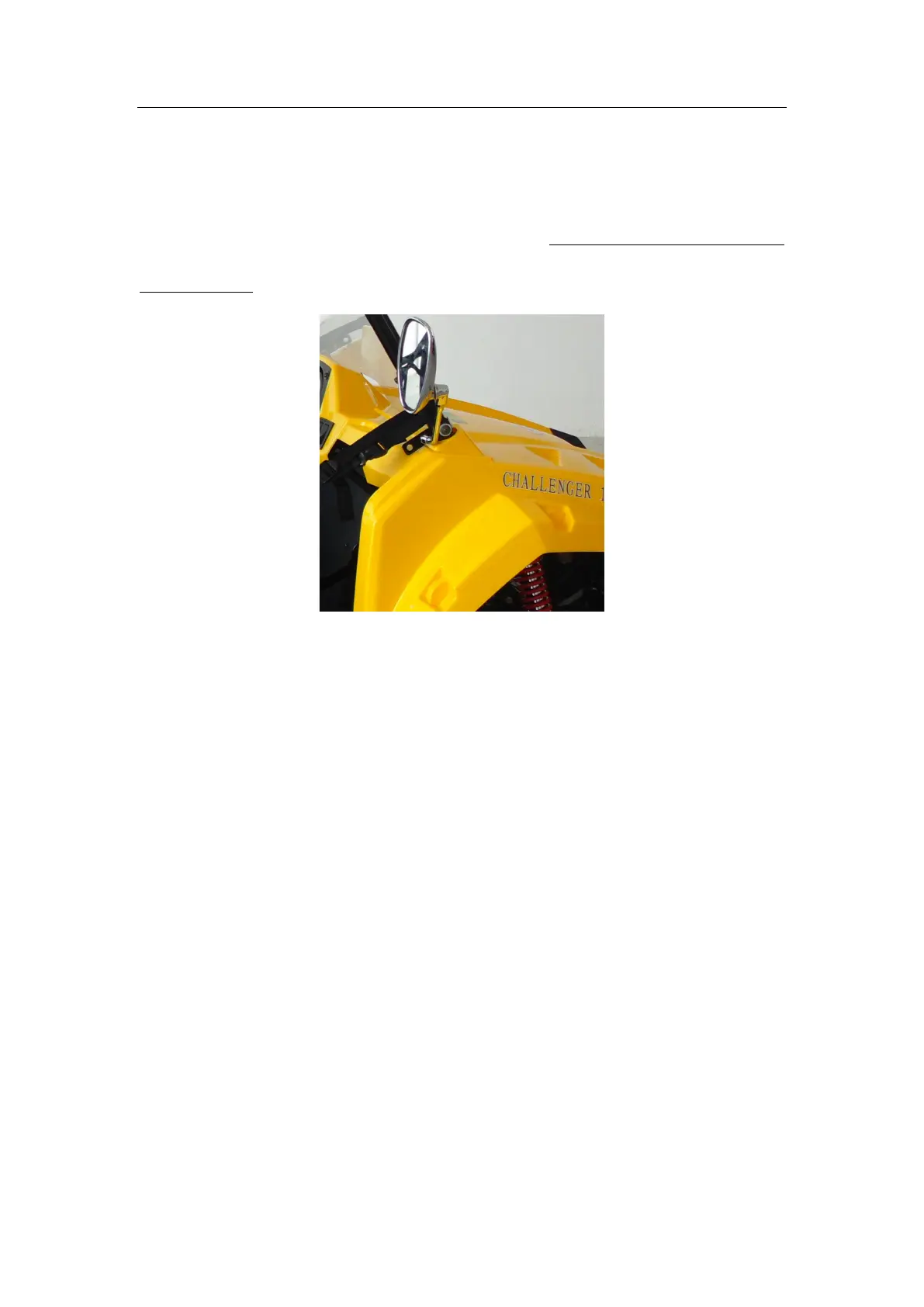

2.20 Install the side mirrors: install the side mirrors on the
windshield brackets (see. 2.11), fix them with a M10
self-locking nut, and adjust the mirrors.
(The mirror in the box can
be different!)
2.21 Install the top light mount bar, top lights and windshield (Only for X
model):
2.21.1 Install the top light mounting piece onto the top light mounting bar,
install the top lights on the mounting piece
2.21.2 Install the top light mounting bar onto the frame, fix it using
M8X55 bolt, R-washer, the torque is 22-29N.m
2.21.3 The windshield has protection on both side, the side with text
protection cover is towards outside, install the windshield on the
windshield mounting brackets and tighten the M6x30 bolt and M6 nut.
2.21.4 Install the windshield top brackets on the roll cage, use the hole in
the middle of the bracket and install it with M8x16 bolt and M8 nut.
