133X CompactFlash Card
Transcend Information Inc.
42
Metaformat Overview
The goal of the Metaformat is to describe the requirements and capabilities of the CompactFlash Storage Card as
thoroughly as possible. This includes describing the power requirements, IO requirements, memory requirements,
manufacturer information and details about the services provided.

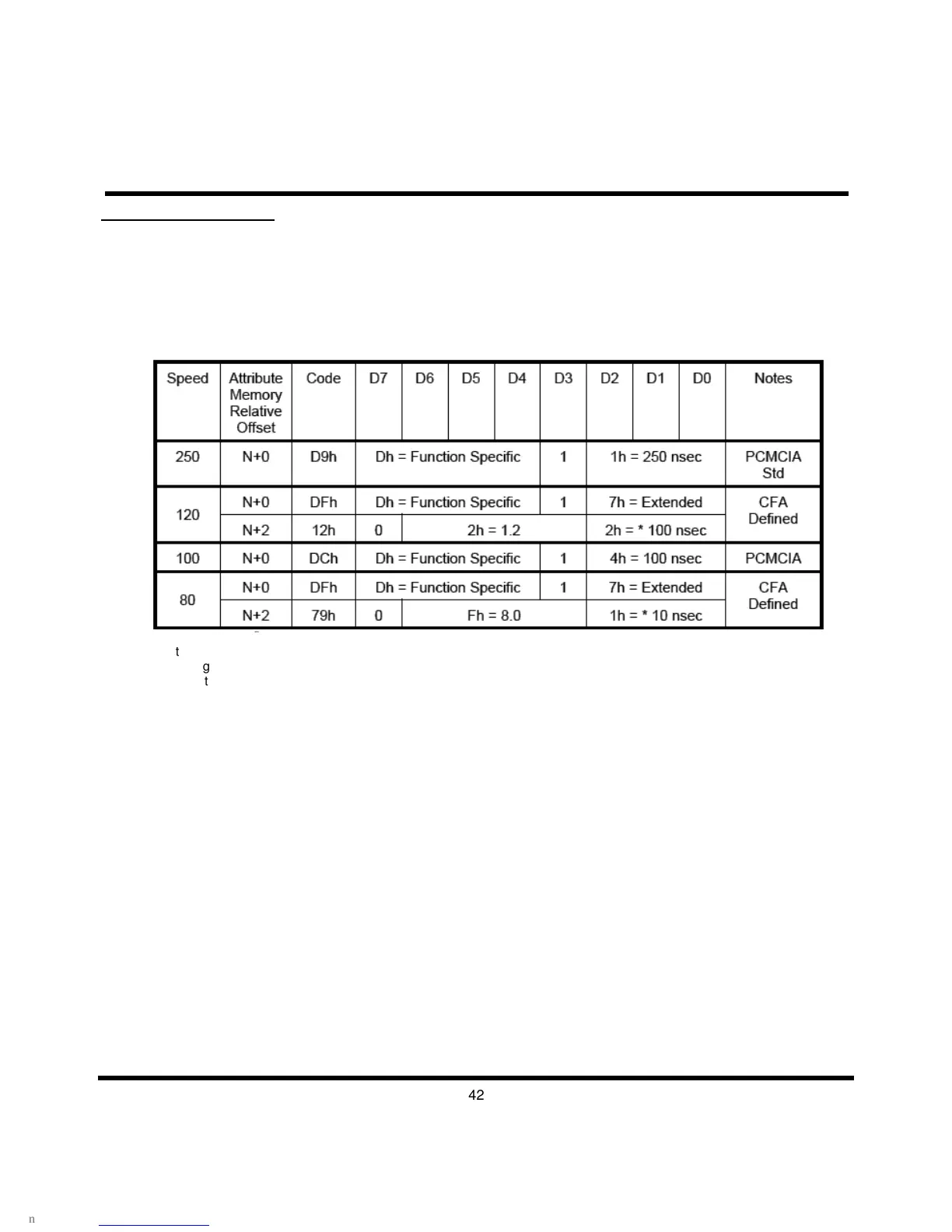

Table: Sample Device Info Tuple Information for Extended Speeds
Note: The value “1” defined for D3 of the N+0 words indicates that no write-protect switch controls writing
the ATA
registers. The value “0” defined for D7 in the N+2 words indicates that there is not more than
a single speed
extension byte.
