Congratulations on the purchase of your Transition BottleRocket frame. This manual contains important information that will help you
build a long lasting relationship with your BottleRocket. Please read it thoroughly before shredding to levels never thought imaginable.
Build Specifications
• Shock Specs: 7.875 eye-to-eye x 2.25” stroke, Rear Pin 22.2mm x 8mm, Forward Pin 22.2mm x 8mm
• Bottom Bracket: 73mm, 51mm Chainline
• Headtube: 1.5” (deep cup compatible)
• Seatpost: 30.0mm
• Seat Clamp: 34.9mm
• Front Derailleur: 34.9mm Clamp, Top-pull, (Top Swing Shimano or
Low Mount SRAM)
• Rear Dropout: 135mm x 10mm
• Disc Brake Mount: International Standard 6”
• Chain Guide Mounting: Standard ISCG

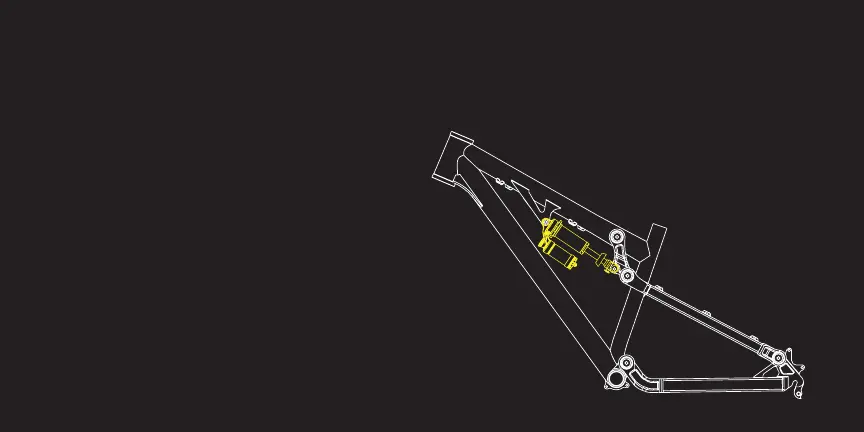

Shock Spec / Mounting Orientation
This product will accept a 7.875” x 2.25” (200mm x 57mm) shock only.
This frame requires the use of a 22x8mm spacer at both front and rear shock
eyelets. Damage caused by use of the incorrect shock size, spacer size or a
shock orientation other than pictured in this manual will not be covered under this
products warranty. If you have an issue with your shock, please contact the shock
manufacturer for warranty.
