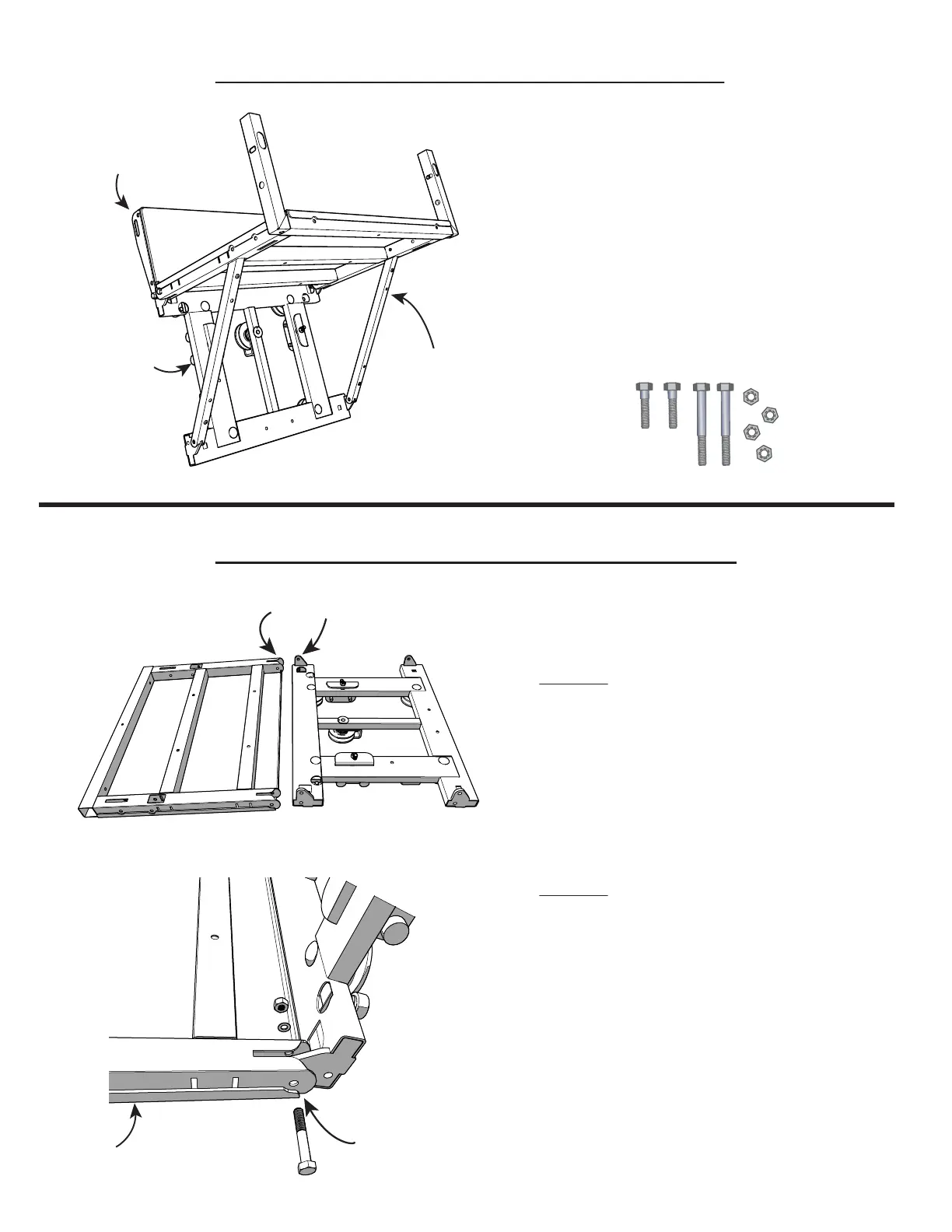

TP400 Carriage Parts Description List
TP400 Carriage Assembly Instructions
Carriage Base
Carriage Base
Carriage Base
Lift This
Side
Support
Strut
Platform
Base
Platform Base
Platform Base
Platform Back/Flap
Platform base/Carriage, Pivot
Tab Holes
Pivot
Tab Holes
Description Qty.
Platform Back Flap 1
Platform Base 1
Carriage Base 1
Support Struts w/Pins 2
Plywood Brackets w/Pins 2
5/16”-18 x 2” Bolt 2
5/16”-18 x 1” Bolt 2
5/16” Nyloc Nuts 4
Step #1
Place the Carriage Base (wheels down)
and Platform Base (Smooth flat top down)
on a hard flat surface. Lift carriage base on
one end (shown left) so the pivot tab holes
align with each other.
Step #2
Insert 5/16” x 2” Bolt through platform and
carriage base tab holes Tighten nyloc nut with
the bolt; not so tight as to prevent free movement.
Repeat opposite side.
Page 2 of 4
