Installing Your Mobile Device
The TQi
™
Docking Base has a unique clamping mechanism that allows the Apple
®
iPhone
®
and iPod touch
®
to be easily installed and removed.
The clamp’s self-adjusting design allows it to accommodate the wide variety of protective cases available for Apple products. Follow these steps
to install your mobile device:

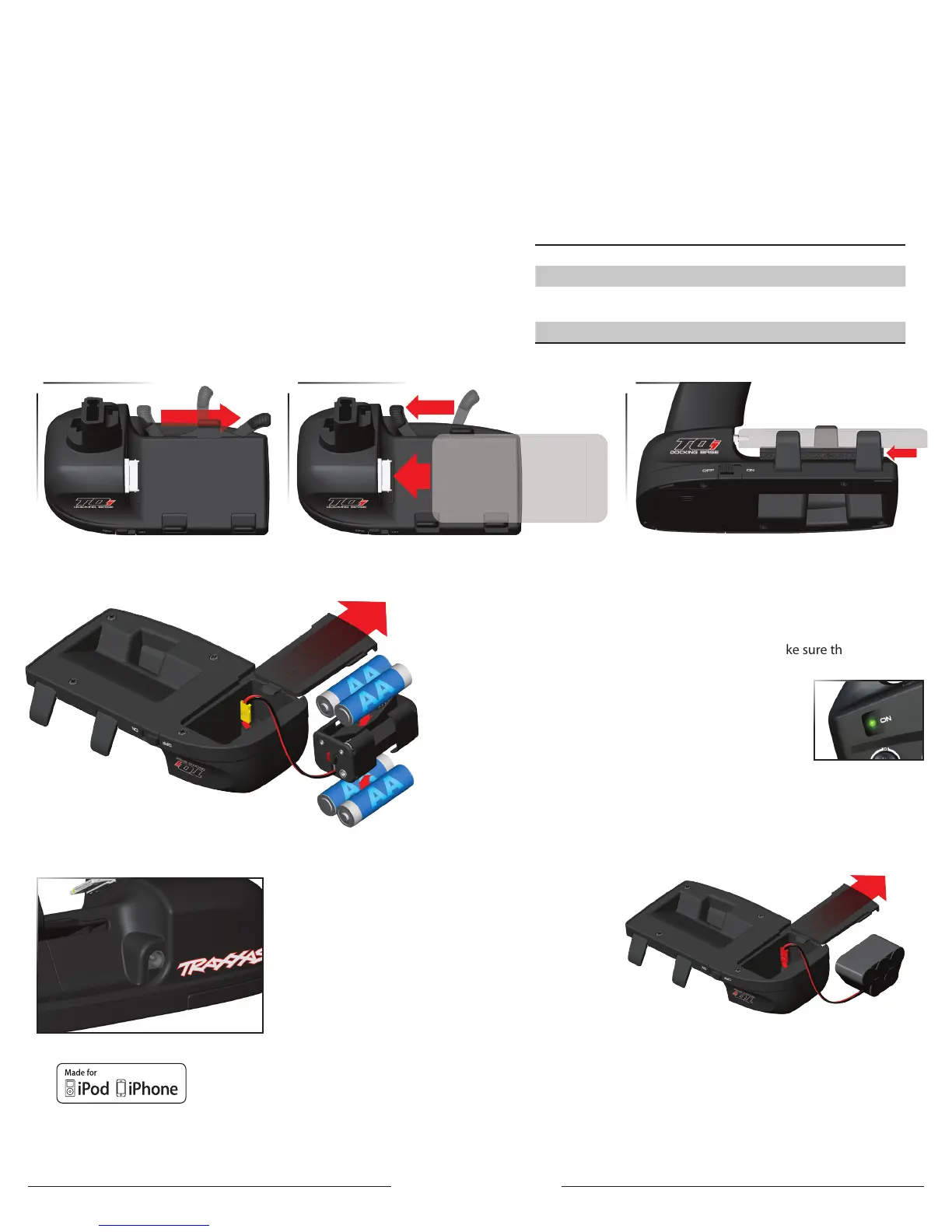

1. Swing the Docking Base Clamp lever from position A (locked) to position B (unlocked).
2. Install your mobile device by sliding it onto the connector.
3. Ensure your mobile device is parallel with the Docking Base. Slide the included foam pads beneath the mobile device so it is held parallel with
the docking base when supported by the pads. The pads have thicknesses of 1, 2, 3 and 4mm, choose the best combination for your device
and case, if used. See the chart below to find the correct pad combination for iPhone and iPod touch models without accessory cases.
4. Make certain your mobile device slides directly onto the connector when slid
over the foam pads. When you are satisfied with the fit, peel the backing from
the foam pads and apply them to the Docking Base.
5. Close the Docking Base Clamp by moving it to position A. Confirm your
mobile device is snug and securely held in place.
Optional: The Docking Base Clamp’s ‘fingers’ have soft gripper pads on them
to hold un-cased devices. If your device is in a soft rubber case, the gripper
pads may be removed for easier device installation and removal.
Installing Batteries in the TQi Docking Base
Your TQi transmitter uses 4 AA batteries. The battery compartment is located in the base of the transmitter.
1. Remove the battery compartment door by pressing the tab and sliding the
door open.
2. Remove the battery holder. Install the batteries in the battery holder.
Correct orientation is indicated in the battery holder. Make sure the battery
holder is plugged into the transmitter.
3. Reinstall the battery door and snap it closed.
4. Turn on the transmitter and check the “ON” LED for a
solid green light. Note: Switching the transmitter on with
your mobile device installed will automatically launch the
Traxxas Link application.
If the status LED flashes red, the transmitter batteries may be weak,
discharged or possibly installed incorrectly. Replace with new or freshly
charged batteries. The power indicator light does not indicate the charge level
of the battery pack installed in the model. Note: The Docking Base will charge
your mobile device as long as the transmitter is turned on.
TQi Docking Base Battery Charging Jack
The Docking Base incorporates a standard charging
jack for use with optional Traxxas rechargeable NiMH
battery pack (#3037) and wall charger (#6545)(each
sold separately). Note: The charger and charging jack
will not charge rechargeable AA batteries installed in
the standard 4-cell AA battery holder supplied with the
TQi. Only use the charger and charging jack with the
#3037 Traxxas NiMH battery.
TRAXXAS.com
Traxxas, 1100 Klein Road, Plano, TX 75074,
Phone: 972-265-8000, Fax: 972-265-8011, e-mail: support@Traxxas.com
1 2
A B
If you have questions or need technical assistance, call Traxxas at
1-888-TRAXXAS
(1-888-872-9927) (U.S. residents only)
Optional #3037 Traxxas NiMH battery installation
3
Foam pad combination recommendations (without accessory cases):
iPod touch 2nd & 3rd Generation 4mm + 3mm (7mm total)
iPod touch 4th Generation 4mm + 3mm + 2mm (9mm total)
iPhone 3GS 3mm + 2mm (5mm total)
or 4mm + 1mm (5mm total)
iPhone 4 4mm + 3mm + 1mm (8mm total)
“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect
specically to iPod and iPhone, respectively, and has been certied by the developer to meet Apple performance
standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory
standards. Please note that the use of this accessory with iPod and iPhone may affect wireless performance.
Made for
· iPod touch (4th generation)
· iPod touch (3rd generation)
· iPod touch (2nd generation)
· iPhone 4S
· iPhone 4
· iPhone 3GS
· iPhone 3G
iPhone and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
6510 KC1487-R01 TQi Premium Base Instructions.indd 2 11/4/11 3:53 PM
