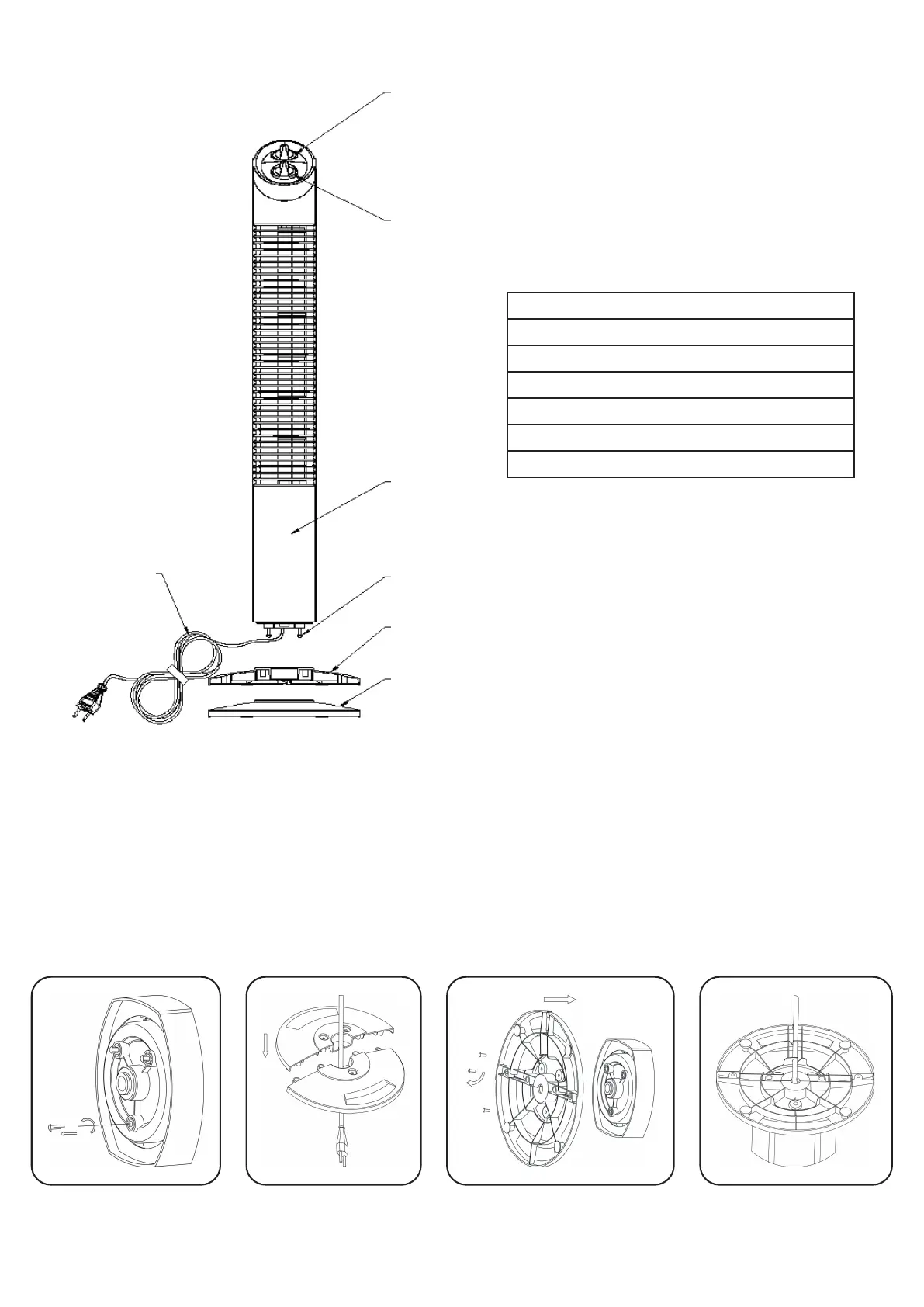

FAN STRUCTURE
8
INSTALLATION
1. Airow speed dial
2. Time seng dial
3. Housing
4. Screws
5. Pedestal rear
6. Pedestal front
7. Power cable
Loosen the 3 screws at the boom of the housing.
Snap the front and rear of the pedestal into each other and make sure that the cable extends through the
middle. Posion the pedestal underneath the housing as follows: A1 above A2, B1 above B2 and C1 above C3.
Mount the pedestal onto the housing using the 3 screws.
Press the power cable into the recesses underneath the pedestal.
1.
2.
3.
4.
1
2
3
4
5
6
7
1. 2. 3. 4.
