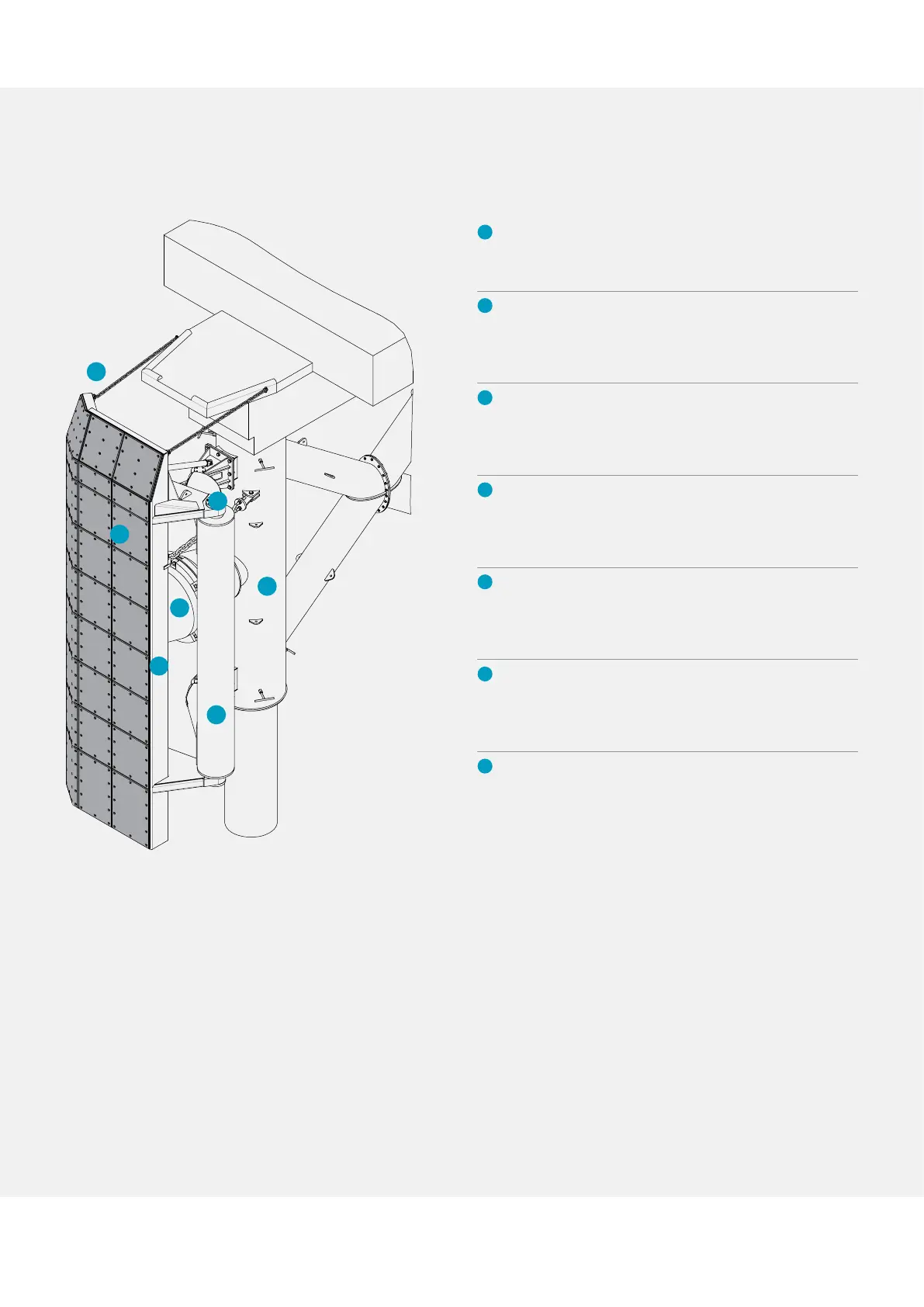

Rubber fender units
Shown here are two Super Cones mounted in a
back-to-back ‘Twin-Series’ configuration.
2
Closed box panel (frame)
Fully sealed, pressure tested design. Shown with
optional lead-in bevels which are designed to suit
each case.
3
Torsion tube and arm assembly
Also closed-box construction, the tube and arms
keep the panel vertical whatever level impact loads
are applied.
4
Hinge units
The maintenance-free stainless steel pins and
bearings allow free rotation to accommodate berthing
angles, also eliminating moments in the hinge pin.
5
UHMW-PE face pads
Trelleborg ‘Double Sintered’ UHMW-PE face pads
are standard to minimize friction and maximize
service intervals.
6
Check chains (optional)
Check chains act as rope deflectors to stop ropes
from snagging, and to help with some large
angle berthings.
7
Pile jackets (optional)
Purpose designed for every project, pile jackets are
factory built for a perfect fit to the fender onsite.
They can strengthen the structure and double as a
corrosion barrier in the vulnerable splash zone.
Jackets are also available for monopile systems.
1
2
3
4
6
7
5
Parallel Motion Fender System
