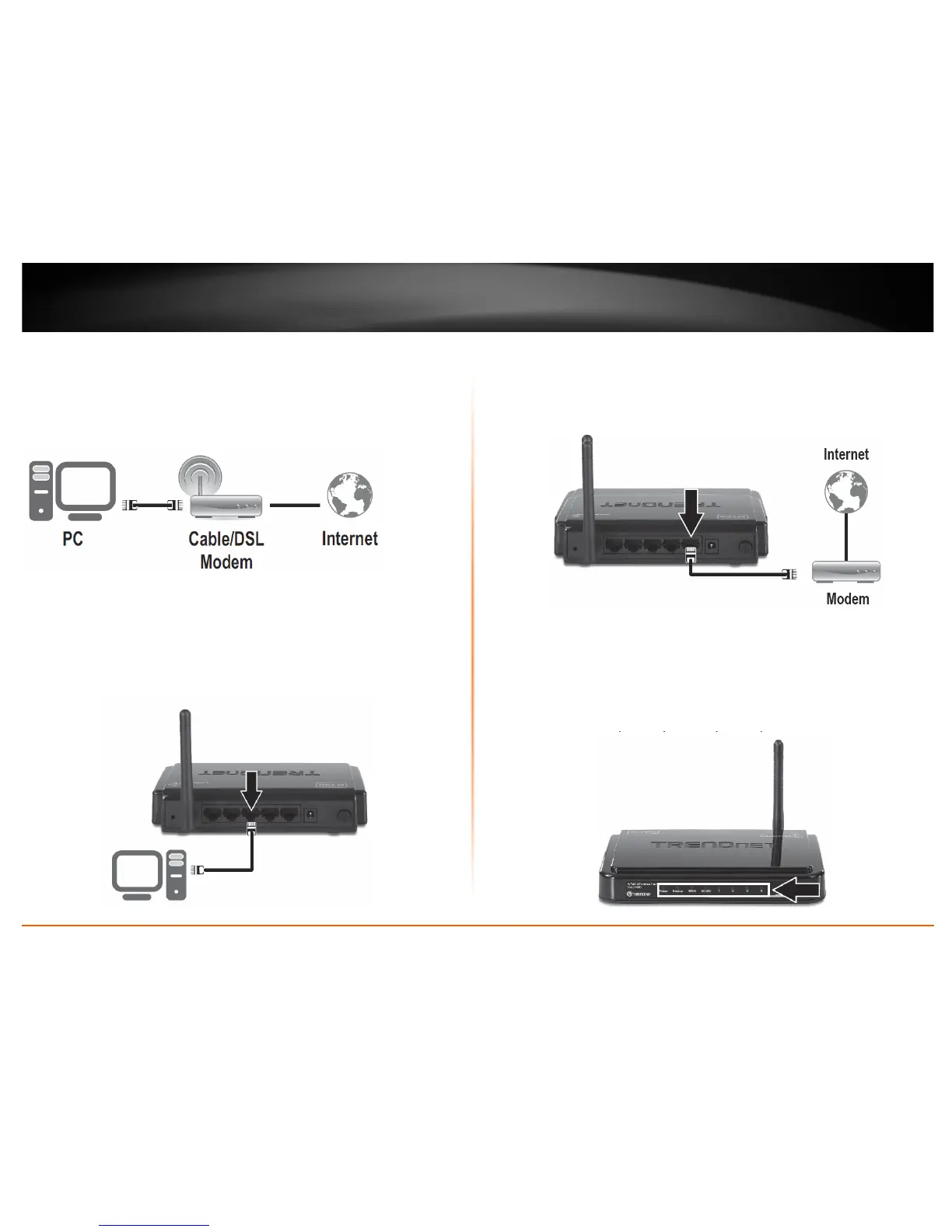

Hardware Installation
1. Verify that you have an Internet connection when connecting your computer directly
to your modem.
2. Turn off your modem.
3. Disconnect the Network cable from your computer to your modem.
4. Using a Network cable, connect your computer to one of the four LAN ports on the
router.
5. Using another Network cable, connect the WAN port on the router to your modem.
6. Plug in the power adapter, connect it to the router’s power port, and then push the
On/Off Power Switch to the “On” position (pushed in).
7. Turn on your modem.
8. Verify that the following front panel LED indicators on your router: Power (Solid
Green), Status (Blinking Green), LAN 1, 2, 3, or 4 (Solid/Blinking Green for ports for
which devices are connected), WAN (Solid/Blinking Green), and WLAN (Blinking Green).

TRENDnet TEW-711BR Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Receiver sensitivity	802.11b: -85dBm @ 11Mbps 802.11g: -68dBm @ 54Mbps 802.11n: -62dBm @ 150Mbps
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Modulation	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Maximum indoor range	100 m
Maximum outdoor range	300 m
WLAN data transfer rate (max)	150 Mbit/s
Input current	1 A
Rack mounting	No
Frequency band	2.4 GHz
Operating temperature (T-T)	32 - 104 °F
WLAN data transfer rates supported	11, 54, 150 Mbit/s
Ethernet LAN (RJ-45) ports	5
Supported network protocols	PPPoE, PPTP, L2TP, UPnP
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2, WPA2-PSK
Antennas quantity	1
Antenna gain level (max)	2 dBi
Certification	CE, FCC, RoHS, CSMA/CA, ACK, ETSI
Power consumption (typical)	2.8 W
Storage temperature (T-T)	-10 - 70 °C
Product color	Black
LED indicators	LAN, Status, WAN, WLAN

Weight and Dimensions

Depth	109 mm
Width	158 mm
Height	34 mm
Weight	204 g
