Connect wireless devices using WPS
WPS (Wi-Fi Protected Setup) is a feature that makes it easy to connect devices to your
wireless network. If your wireless devices support WPS, you can use this feature to
easily add wireless devices to your network.
Note: You will not be able to use WPS if you set the SSID Broadcast setting to Disabled or
if you are using WEP security.
There are two methods the WPS feature can easily connect your wireless devices to
your network.
Push Button Configuration (PBC) method
o WPS Software/Virtual Push Button - located in router management page
PIN (Personal Identification Number) Method - located in router management page
Note: Refer to your wireless device documentation for details on the operation of
WPS.
For connecting additional WPS supported devices, repeat this process for each
additional device.
PBC (Software/Virtual Push Button)
Wireless > WPS
In addition to the hardware push button located physically on your router, the router
management page also has push button which is a software or virtual push button you
can click to activate WPS on your router.
1. Log into your router management page (see “Access the management page” on page
16).
2. Click on the Wireless 2.4GHz
3. Click on WPS to configure the selected wireless band’s WPS feature. Click Apply to
save settings

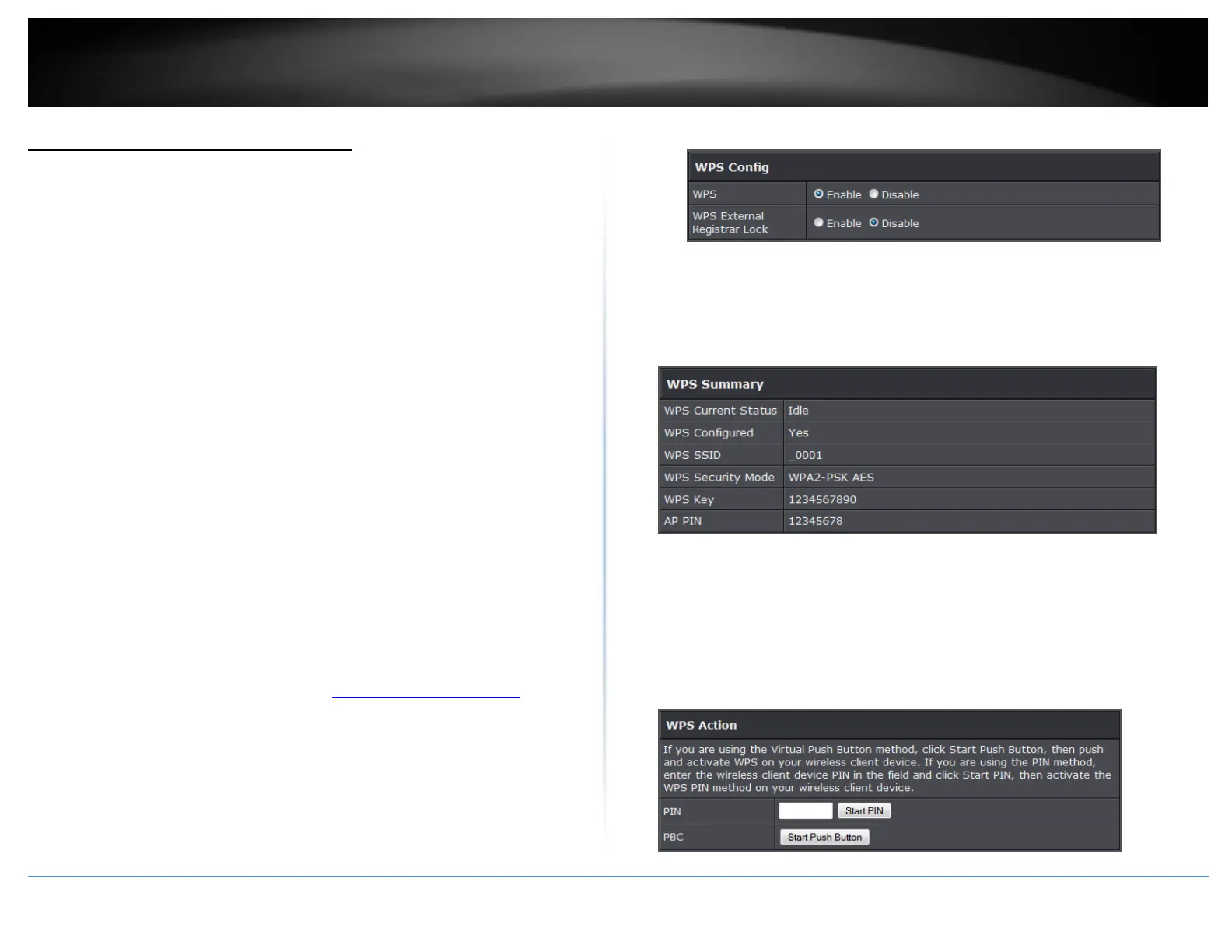

WPS Config
WPS: Select enable to turn on WPS feature
WPS External Registrar Lock: Select to enable or disable external registrar feature
on the select wireless band.
WPS Summary
WPS Current Status: Displays the status of WPS feature on the selected wireless
band
WPS Configure: Displays the configured mode of the WPS feature
WPS SSID: Displays the SSID of the WPS network
WPS Security Mode: Display the security mode of the WPS network
WPS Key: Displays the security password
AP PIN: Display the WPS PIN information.
WPS Action
