TREQ ONE - Step 2: Base Frame Assembly

www.treq-sim.com
2
M8
(16x)
M5
(4x)
M5
(4x)

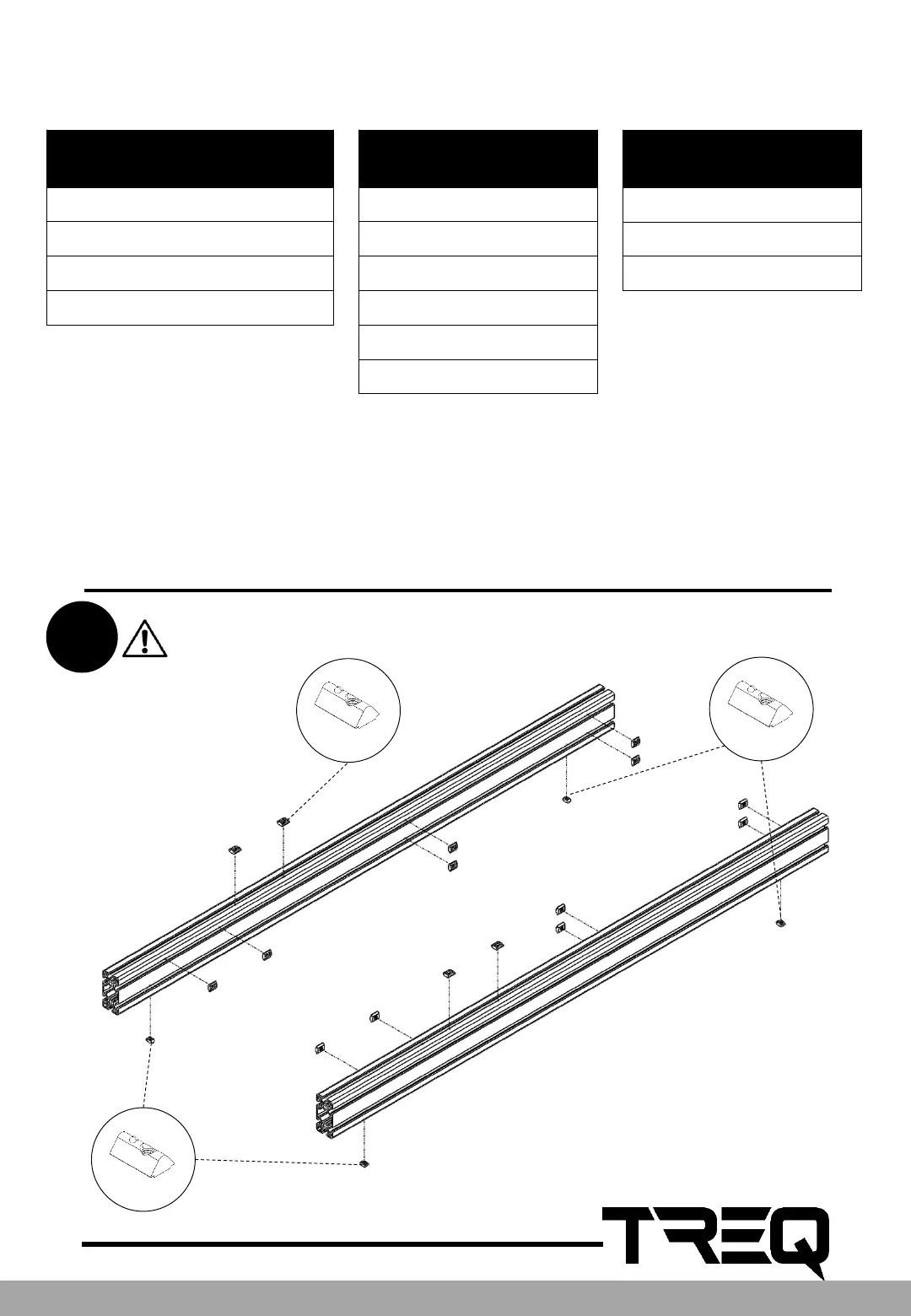

Profile 8040 L=1185 (2x)
These come from the ‘Rubber Feet’ bag
WHEEL BASE / PEDAL
MOUNTING
M6x12 Screw 2
M6x16 (Socket Head) 7
M6x20 (Socket Head) 2
M6x25 (Socket Head) 2
M6 Washer 4
M6 T-Nut Click-in-Nut 4
RUBBER FEET
M5x12 (Socket Head) 4
M5 T-Nut Click-in-Nut 4
Rubber Foot 4
M8 BOLTS AND WASHERS
M8x16 (Socket Head) Black 6
M8x20 (Socket Head) Black 12
M8x20 (Sunken Head) Black 4
M8 Washer 10
Bags with bolts, nuts and washers:
