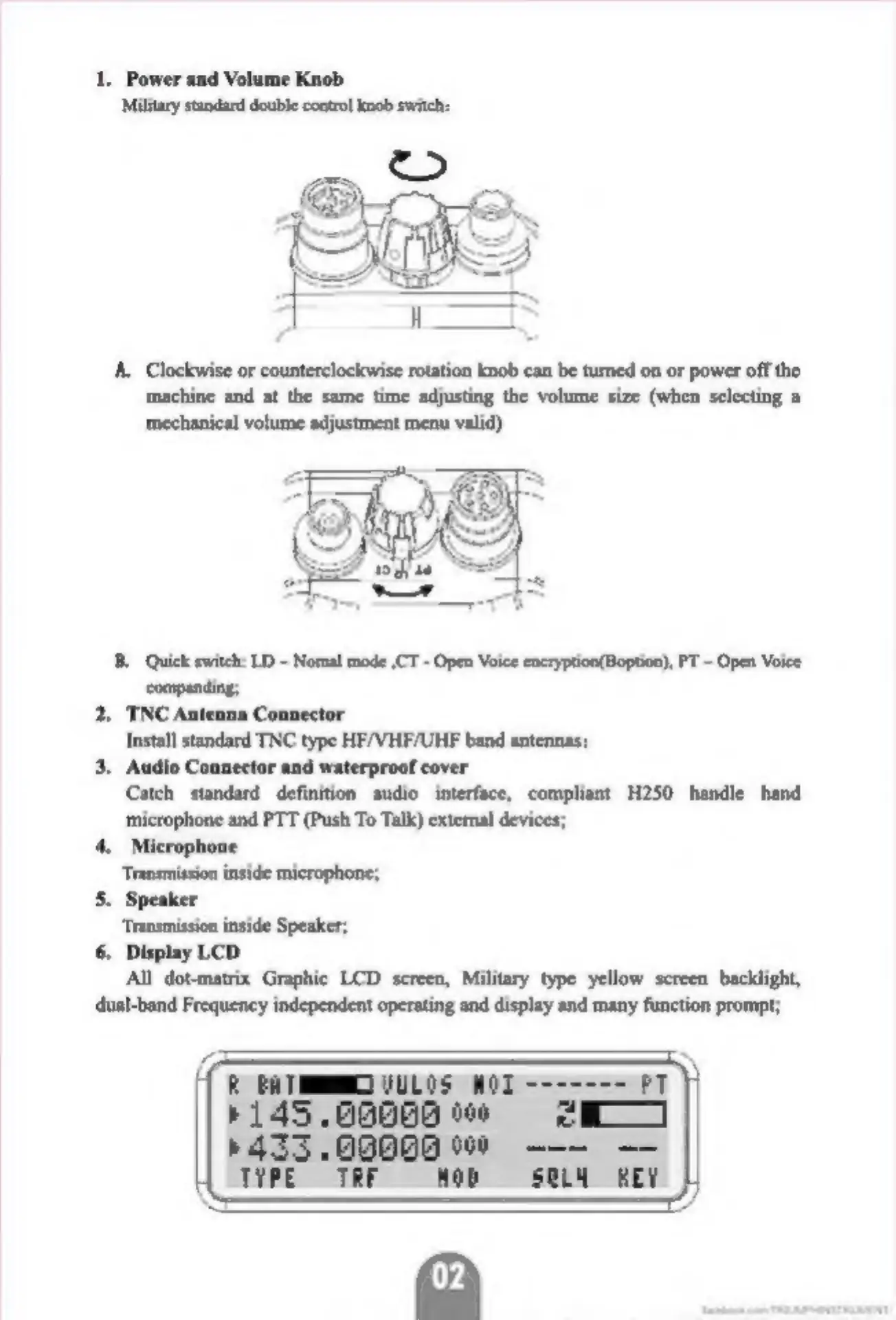

TRI AN/PRC-152A - Power and Volume Knob; Knob Operation Modes

А. Clockwise or counterclockwise rotation knob can be turned on or power off the
machine and at the same time adjusting the volume size (when selecting a
mechanical volume adjustment menu valid)
B. Quick switch: LD - Nomal mode CT - Open Voice encryption(Boption), PT - Open Voice
companding:
2. TNC Antenna Connector
Install standard TNC type HF/VHF/UHF band antennas:
3. Audio Connector and waterproof cover
Catch standard definition audio interface, compliant Н250 handle hand
microphone and PTT (Push To Talk) external devices;
4. Microphone
Transmission inside microphone;
5. Speaker
“Transmission inside Speaker;
6. Display LCD
All dot-matrix Graphic LCD screen, Military type yellow screen backlight,
dual-band Frequency independent operating and display and many function prompt;
2
Е. PTR UULOS HOT
145.8888
00%
ь425,. 090000 oos
TYRE TRF HOD seid KEY
