TRIAD INSTALLATION GUIDE - TRIAD ONE, SINGLE ZONE HIGH-RESOLUTION STREAMING AMPLIFIER
www.control4.com | 1-888-400-4072 | DOC-00287-A 2017-08-28 DH

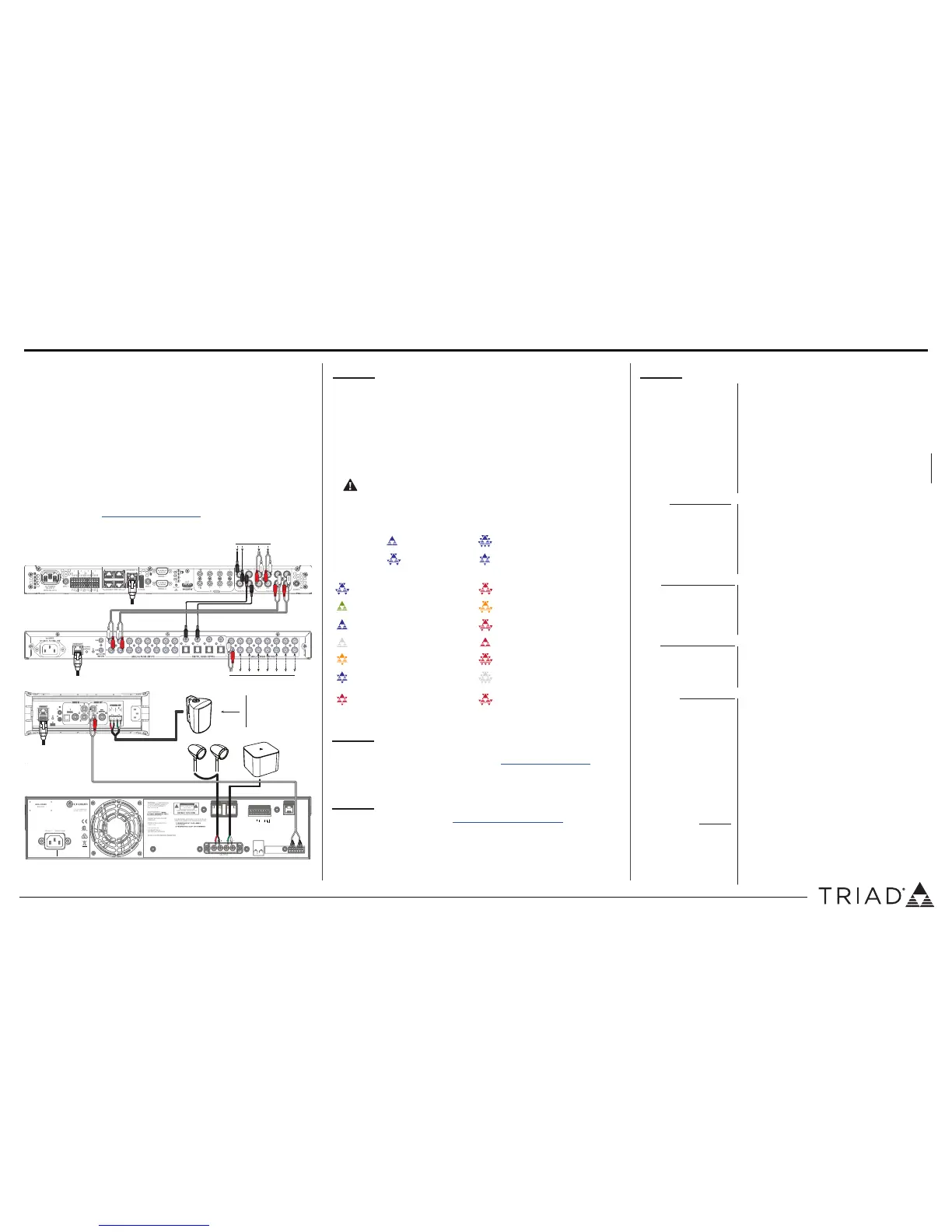

ADDING AN OUTDOOR ZONE WITH THE TRIAD ONE
An outdoor audio zone can be added to the system using the Triad One
and a high-power amp for the subwoofer or a garden array (if desired).
1 Connect external audio sources to the analog audio and digital audio
(coax) inputs of the controller (to be able to stream those sources to
the Triad One).
2 Connect the rest of the system as normal.
3 Connect the SUB/MONO OUT from the Triad One to the Crown
amplifier for the garden array.
4 Connect Triad OD26 outdoor speakers to the SPEAKER OUT of the
Triad One and connect a Triad Garden Array GA10 Outdoor Sub
and GA4 Sats to the Crown amp as shown in Triad Garden Array
documentation (triadspkrs.co/gardenarray).
TROUBLESHOOTING
RESETTING THE TRIAD ONE
• Network reset—Remove the power cord to power cycle the device.
Hold the ID button while you replace the power cord to power on the
Triad One. Hold the ID button until the Status LED turns solid orange.
• Factory restore—Press and hold the FACTORY RESTORE button for
five seconds to restore the Triad One to its previous firmware image
and restore factory-default settings. The Status LED will blink white
rapidly when the factore restore begins.
Caution! The factory restore process will restore the Triad One to
a factory state and replace the firmware image with the factory-
default firmware.
LED TROUBLESHOOTING GUIDE
Status LED = solid = flashing (4 Hz)
= flashing (2 Hz)
= flashing (1/2 Hz)
Booting Amplifier fault
Booting complete, has IP address Over-temperature condition
Connected to Director Amplifier is clipping occasionally
Playing audio (white LED)
Amplifer is clipping constantly
No IP address USB over-current condition
Firmware is updating Factory restore in progress (white
LED)
Firmware update error Factory restore error
REGULATORY/SAFETY INFORMATION
To review regulatory information for your particular Triad products, see the
information located on the Triad website at: http://triadspkrs.co/reg.
WARRANTY
Limited 2-year Warranty. Go to http://triadspkrs.co/warranty for details.
SPECIFICATIONS
Zone line inputs 2 inputs, 1 analog stereo and 1 digital, (S/PDIF coax or TOSLINK optical)
Audio outputs 1 stereo analog out, 1 sub/mono audio out
Zone speaker outputs 1 stereo, Phoenix-style connector
USB 1 USB 2.0 port—supports playback of media stored on USB
IR 2 IR ports—3.5 mm jack
Ethernet RJ45 jack for local network connection, 10/100/1000BaseT
WiFi 2 internal antennas, 2.4 Ghz and 5 Ghz, 802.11b/g/n
Front power LED 1 × RGB status LED
ID button Yes
Factory restore button Ye s
Dimensions (H x W x D) 3 × 8.5 × 10.25" (7.6 × 21.6 × 26 cm)
POWER AMPLIFIER
Rated wattage/channel 100W @ 4 ohms
Minimum load impedance Tolerates 3 ohm loads minimum
Frequency response +/- 0.5 dB ref 1kHz 20-20,000 Hz 4 or 8 ohms
Noise < -105 dB reference to rated power “A” weighted
THD < 0.01% 1 kHz at all output levels below clipping
Typical < 0.005% at 1-50 watts RMS @ 1kHz in a 20 kHz bandwidth
Maximum voltage gain +25.6 dB
ANALOG AUDIO INPUT
Maximum input level 2V RMS
Analog to digital conversion 2V RMS = 0 dBFS
Analog frequency response +/- 0.1 dB, 20 - 20,000 kHz ref, 1 kHz
Analog dynamic range > 114 dB “A” Weighted
THD In a 20 kHz bandwidth < 0.001% 20 - 20,000 Hz up to 2V RMS
DIGITAL AUDIO INPUTS
S/PDIF input Accepts IEC 60958 standard inputs in 16/24-bit PCM stereo only,
surround not supported
Accepted sample rates 30 - 200 kHz for direct input mode; 44.1k, 48k, 96k, 192k for streaming output
mode
Optical input TOSLINK Standard TOSLINK levels
GENERAL AUDIO
DSP audio processing 24-bit audio processing double-precision filters
Dynamic range > 105 dB
Tone controls +/- 12 dB with 650 Hz turnover frequency in 0.5 dB steps.
10-band EQ Ten one-octave filters centered at 31.5 Hz, 63 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz,
2 kHz, 4 kHz, 8 kHz, and 16 kHz, in 0.5 dB Steps +/- 12 dB
Volume control Attenuates from 0 to -80 dB and o in 0.5 dB Steps.
Loudness control Continuously variable from 100% volume to o. Follows approximate
Fletcher-Munson curves.
Subwoofer output Mono summing of stereo audio or crossover mode
Subwoofer crossover type 4th order (24 dB/octave) Linkwitz-Riley
Supported crossover frequencies 80 Hz, 90 Hz, 100 Hz, 110 Hz, 125 Hz, 140 Hz
Signal present detectors -30 dB low pass filtered
THERMAL
Operating temperature 32° F ~ 102° F (0° C ~ 40° C)
Humidity 5% to 95% non-condensing
Storage -4 °F ~ 158 °F (-20 °C ~ 70 °C)
Cooling method Internal fan
Thermal dissipation 40 BTU/hr (standby), 680 BTU/hr (max)
