Triad OnWall Products w/ EasyMount Bracket - Quick Start Guide
2014.7.23

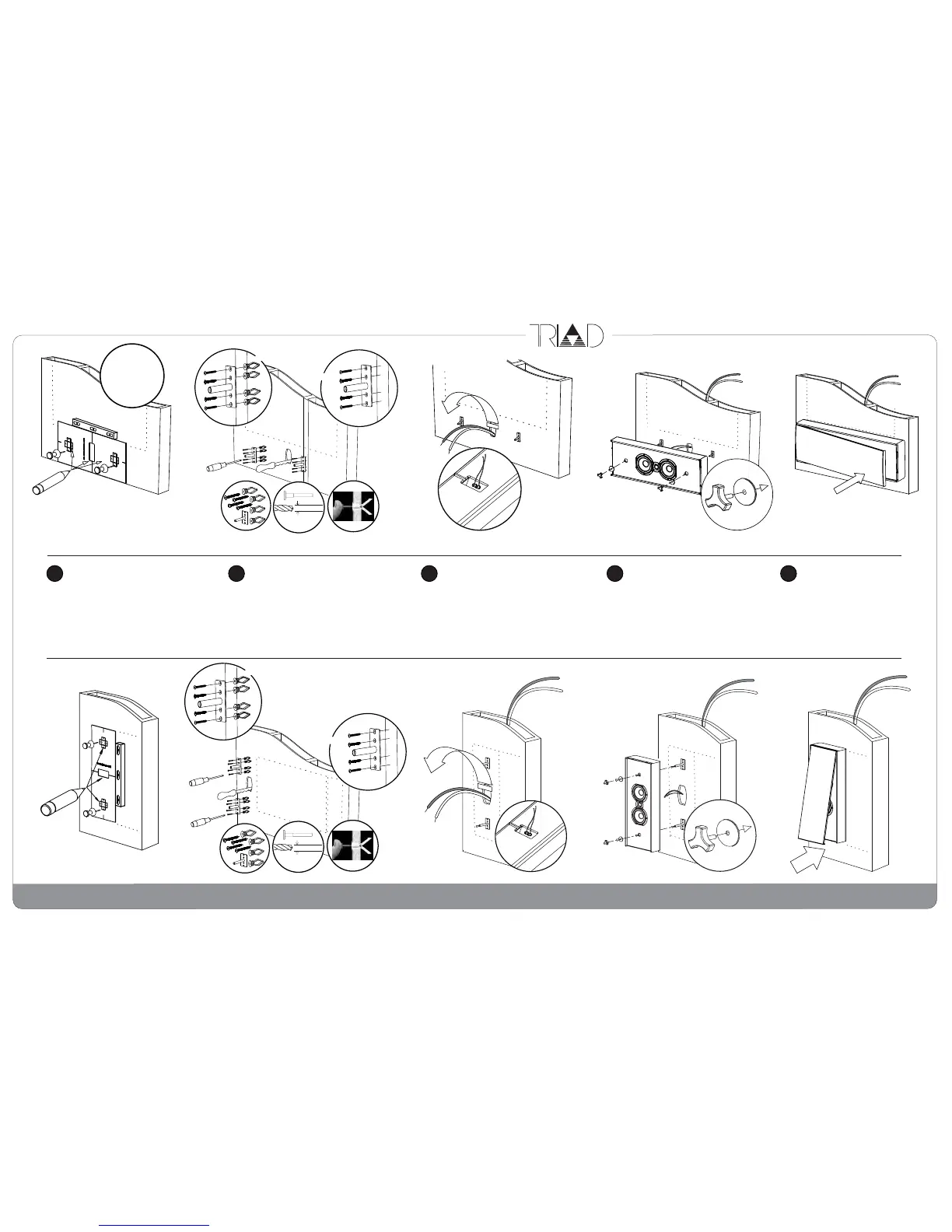

Level & pin template to wall. Outline
wire hole and screw holes for 2 mounting
posts - or 4 with streched sound-bars longer
than 66"/1676.4 mm. Always orient posts
vertically.
Cut wire hole. Install anchors if there are no
studs; once anchors are in the drywall, pop them
open with the included key. Then screw mounting
posts to wall using 4 anchors & screws per post.
Mounting posts should always be mounted
vertically (portrait) for strength.
A
Pull speaker wires through wire hole;
attach to binding posts or push connectors.
Be sure to preserve correct polarity
(red to red) with amp and to avoid stray
strands shorting between binding posts.
Mount speaker on posts; loosely
tighten knobs. Level or align +/- 1/4”
(6.35mm), then tighten.
Attach grill at one end; seat
edges along both sides; attach
other end. Snug all around.
C
B
D
E
Horizontal Installation
On Stud
Off Stud
Vertical Installation
OnWall Speaker - Installation Instructions - Page 2
Off Stud
On Stud
OnWall speakers
stretched larger
than 66” require
4 EZ Mounts
5/16"; 8mm
5/16"; 8mm
