Page 13 (V-R Reset Dual Hose, One Product Wiring Diagram)

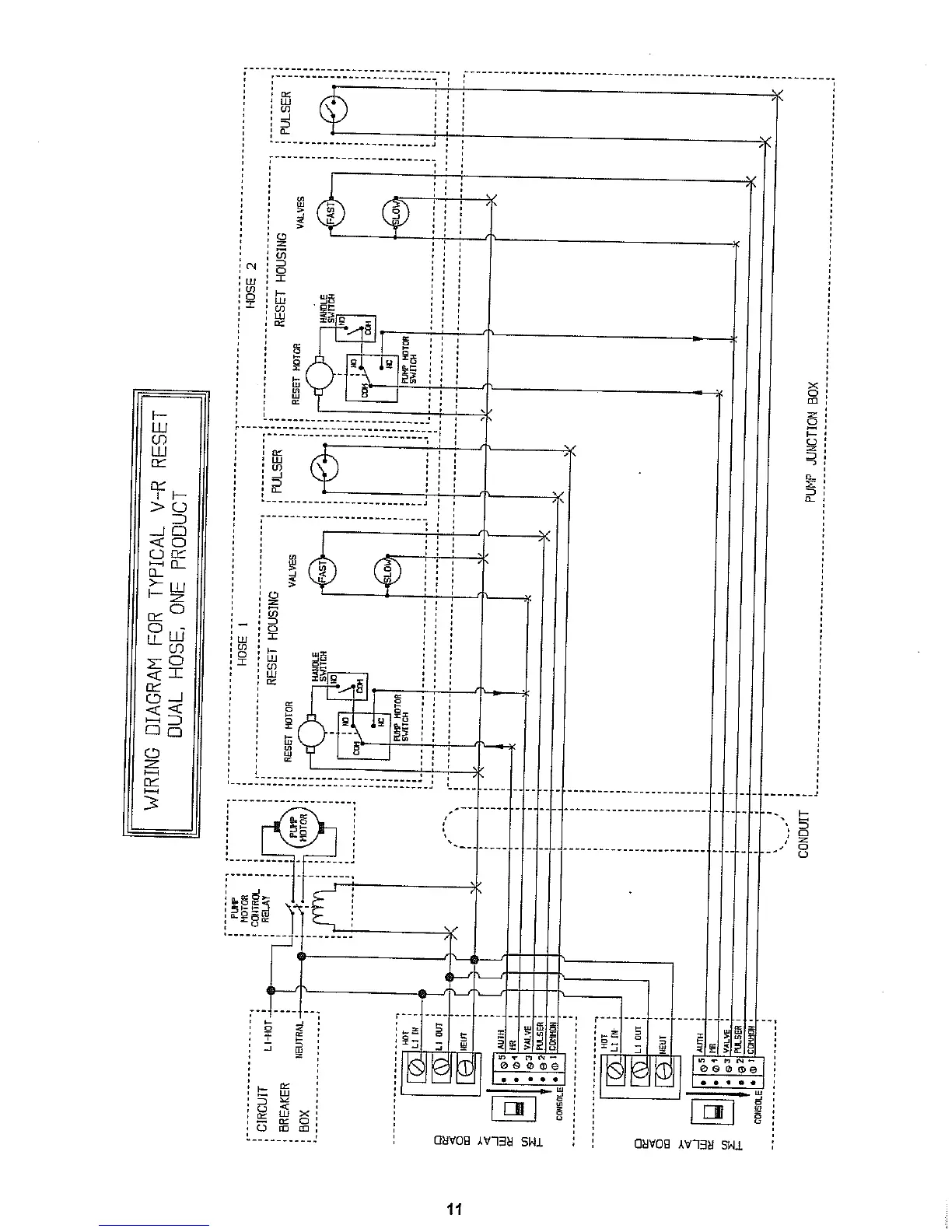

Triangle MicroSystems TMS - 800F - V-R Reset Dual Hose, One Product Wiring Diagram

21 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

Table of Contents

Index2
Wiring Specifications3
Typical Tms/Pump Wiring Diagram4
Function Definition4
Installation Guide5
Power Supply6
Pulsers7
Typical Electric Reset Wiring Diagrams8
Service Practice16
Service and Operating Considerations17
Static Electricity17
Ballpoint Pen on Keyboard17
Relay Board Connector17
Two Way Valves18
Installer Damaged Console18
Installer Damaged Relay Board18
Test for Cashier19
Answers19
