TECH-SUPPORT@TRICKSTUFF.DE SERVICE MANUAL – PICCOLA PUMP V2024_02. PAGE 10 OF 25
Disassembly of the brake pump

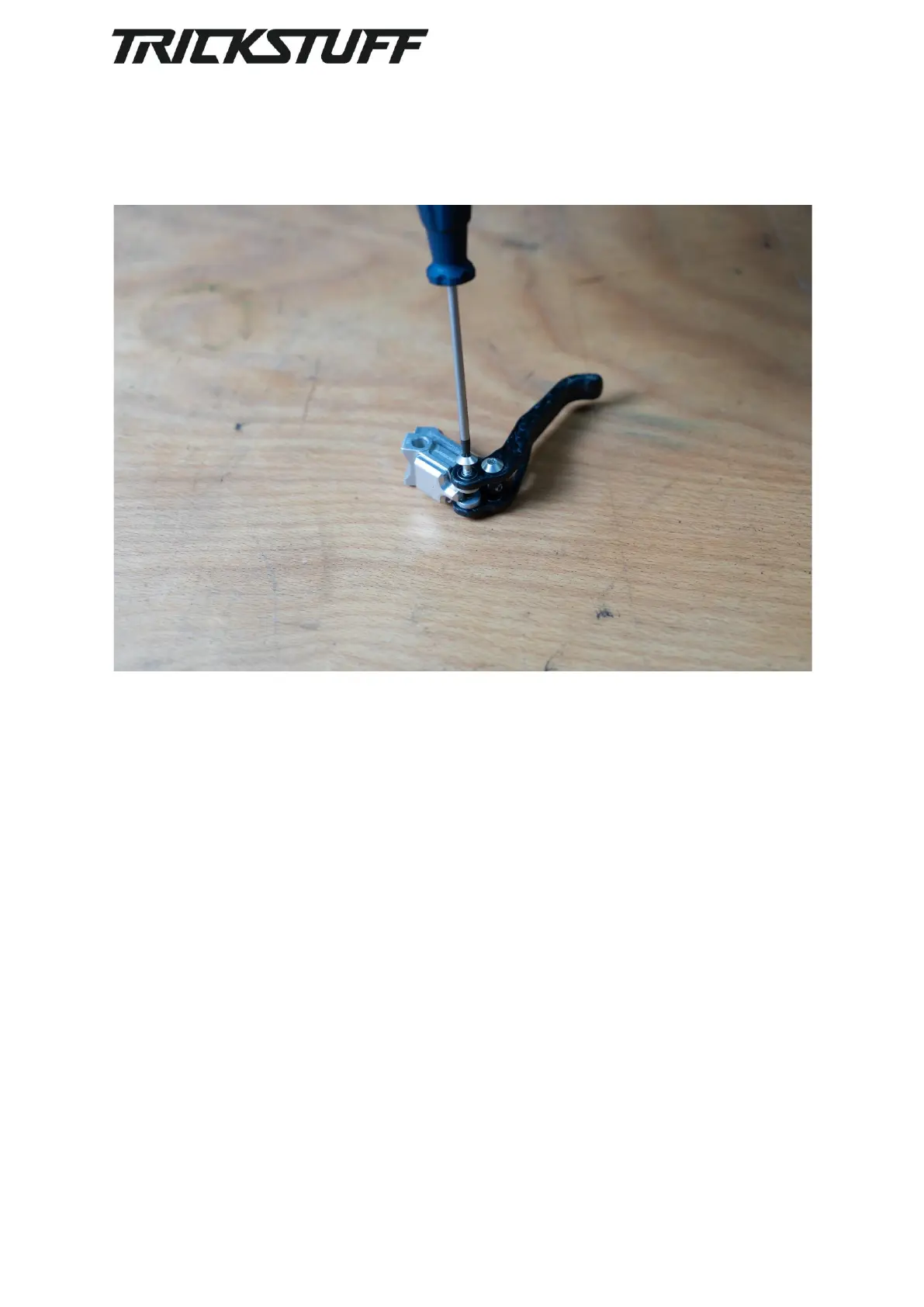

1. Remove the pivot bolt shown in the image below and its counterpart on the other side using
a TX15 key. The remaining two pivot bolts do not need to be removed.
