TRILECTRON 90T400SLN - Page 6

iH
e0T400sLN
.EI
GROUND
POWER
UNIT
ffi:;*
#,
W
W.
@"
'rtt'
w
W

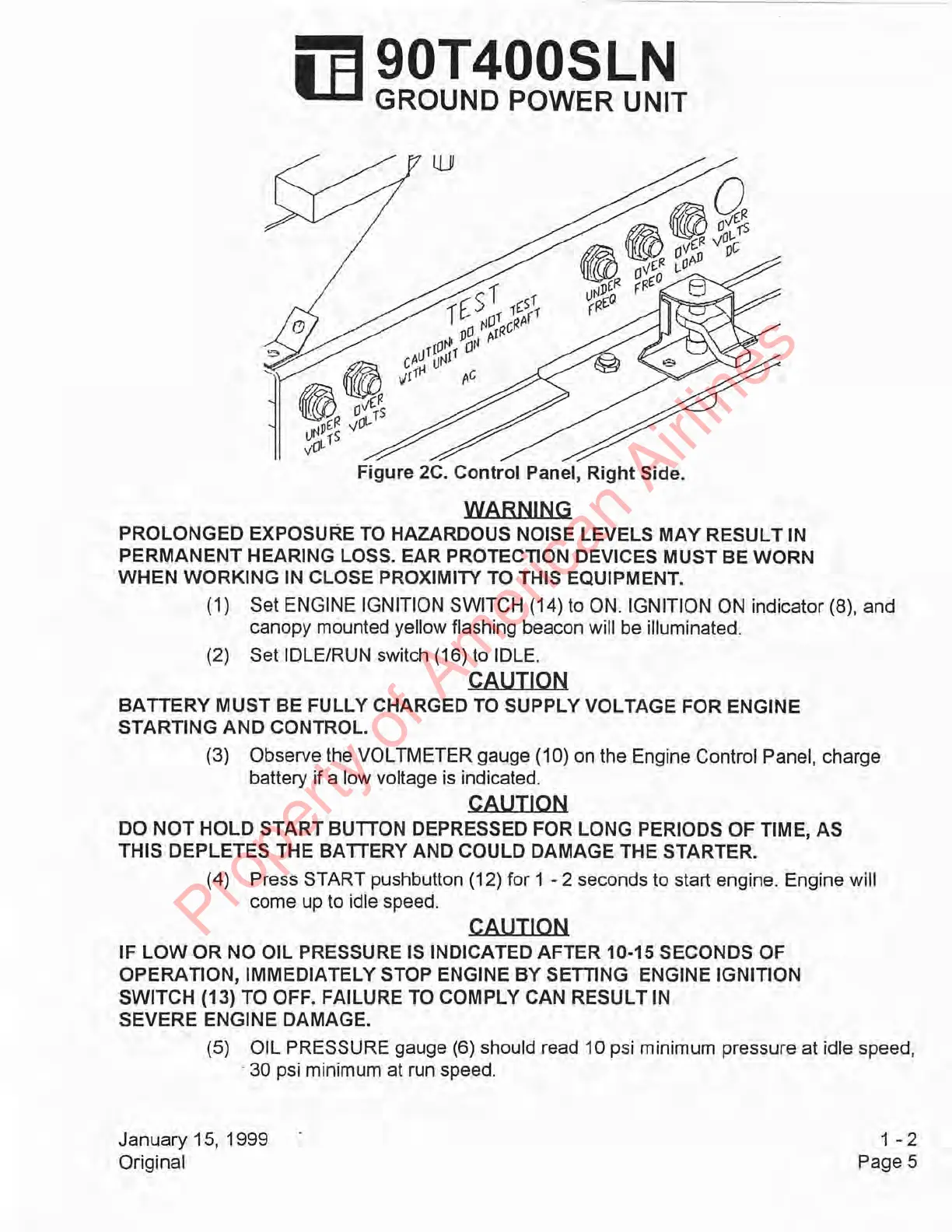

Figure 2C. Control
Panel,
Right
Side.
WARNING
PROLONGED
EXPOSURE
TO HAZARDOUS
NOISE
LEVELS
MAY
RESULT IN
PERMANENT HEARING LOSS.
EAR PROTECTION
DEVICES
MUST
BE WORN
WHEN WORKING
IN CLOSE
PROXIMITY TO THIS
EQUIPMENT.
(1)
Set
ENGINE IGNITION
SWTCH
(14)
to
ON. IGNITION
ON
indicator
(8),
and
canopy
mounted
yellow
flashing
beacon will be
illuminated.
(2)
Set IDLE/RUN switch
(16)
to IDLE.
CAUTION
BATTERY MUST BE
FULLY
CHARGED
TO
SUPPLY VOLTAGE
FOR ENGINE
STARTING AND
CONTROL.
(3)
Observe the VOLTMETER
gauge
(10)
on the
Engine
Control Panel, charge
battery if a low voltage is indicated.
CAUTION
DO NOT HOLD
START
BUTTON
DEPRESSED FOR LONG
PERIODS
OF
TIME, AS
THIS DEPLETES THE
BATTERY AND COULD DAMAGE
THE
STARTER.
(4)
Press
START
pushbutton
(12)
for 1
-
2 seconds
to start engine.
Engine
will
come up to idle speed.
CAUTION
IF LOW OR NO
OIL
PRESSURE IS INDICATED
AFTER 10.15
SECONDS OF
OPERATION,
IMMEDIATELY
STOP
ENGINE BY
SETTING ENGINE IGNITION
swrTcH
(13)
TO
OFF.
FATLURE TO COMPLY CAN
RESULT rN
SEVERE
ENGINE DAMAGE.
(5)
OIL
PRESSURE
gauge
(6)
should read
10
psi
minimum
pressure
at idle
speed,
30
psi
minimum at run speed.
