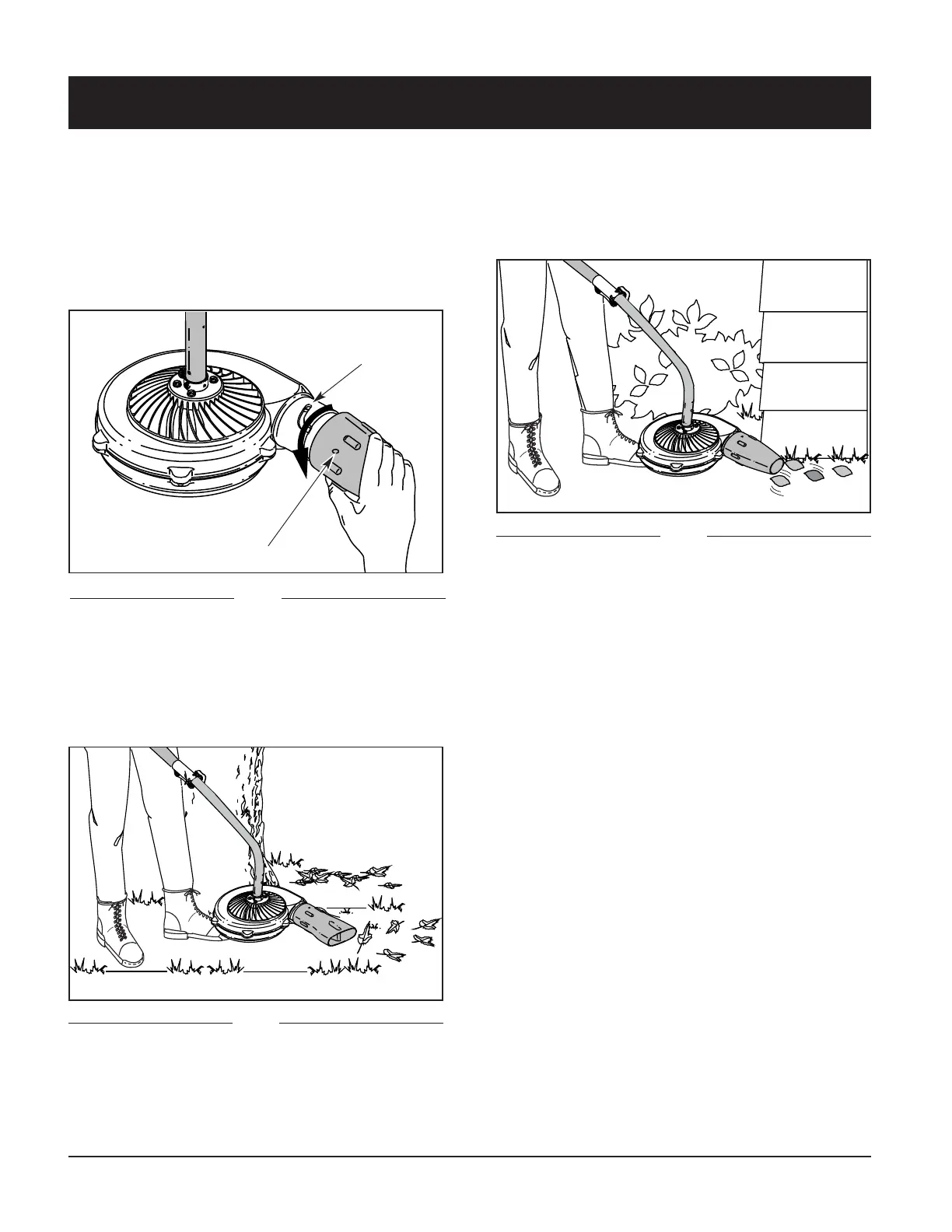

REMOVING FLARE OR CONCENTRATOR

NOZZLE FROM BLOWER HOUSING

1. Grasp the nozzle and turn it counterclockwise

approximately 45˚ until the indexing button on the

inside of the nozzle snaps out of the detent in the

blower housing (Fig. 8). Pull the nozzle off of the

blower housing.

Detent

Indexing Button

Fig. 8

Fig. 10

Fig. 9

OPERATING INSTRUCTIONS

USING THE FLARE NOZZLE

Use the flare nozzle for large, hard surfaces such as

driveways and sidewalks (Fig. 9).

USING THE CONCENTRATOR NOZZLE

Use the concentrator nozzle for hard to reach places

such as corners in a garage or to control dust in a dust

laden environment (Fig. 10).
