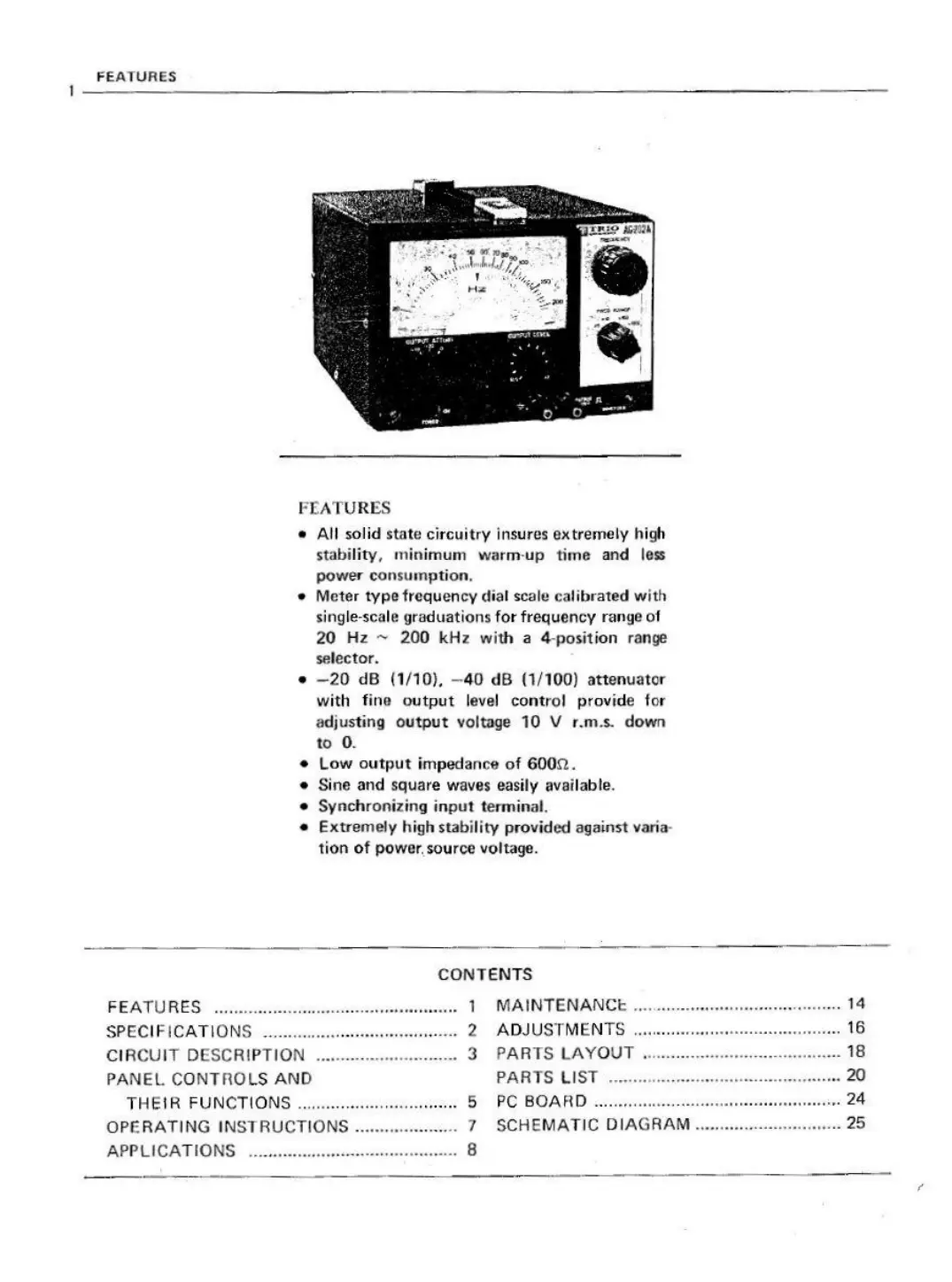

FEATURES
|
FEATURES
•
All solid state circuitry insures extremely high
stability,
minimum warm-up time and
less
power consumption.
•
Meter type frequency dial scale calibrated with
single-scale
graduations for frequency range ol
20
Hz - 200 kHz with a 4-position range
selector.
•
-20 dB
(1/10).
-40 dB
(1/100)
attenuator
with fine output level control provide for
adjusting
output voltage 10 V r.m.s. down
to 0.
•
Low output impedance of
600f2.
•
Sine and square waves easily available.
•
Synchronizing input terminal.
•
Extremely high stability provided against varia
tion of power, source voltage.
CONTENTS
FEATURES
1
SPECIFICATIONS 2
CIRCUIT DESCRIPTION 3
PANEL
CONTROLS AND
THEIR
FUNCTIONS
5
OPERATING INSTRUCTIONS 7
APPLICATIONS 8
VlAINTENANCfc 14
ADJUSTMENTS 16
'ARTS
LAYOUT 18
'ARTS
LIST 20
?C
BOARD 24
SCHEMATIC DIAGRAM 25
