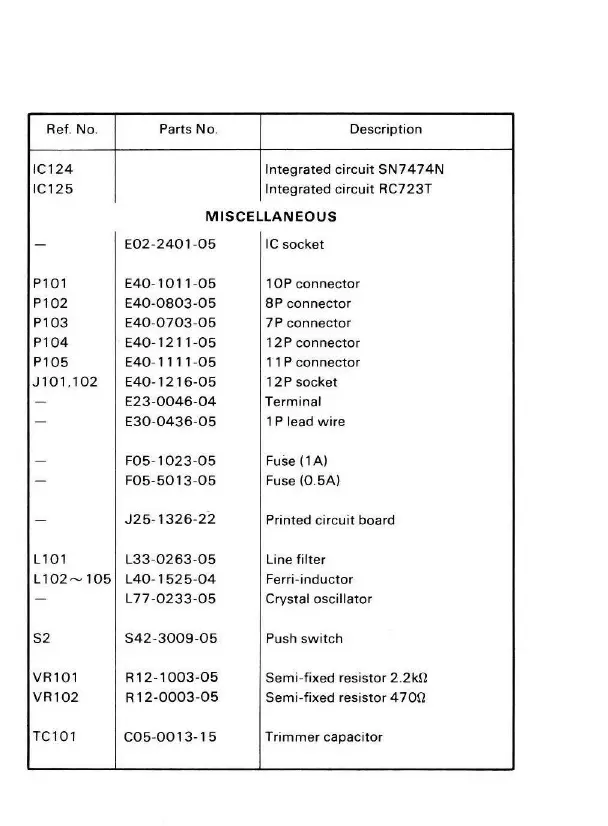

Trio FC-754A - Page 13

Ref. No.
Parts No. Description
IC124
IC125
Integrated circuit SN7474N
Integrated circuit RC723T
MISCELLANEOUS
-
E02-2401-05
IC socket
P101
P102
P103
P104
P105
J101.102
E40-1011-05
E40-0803-05
E40-0703-05
E40-1211-05
E40-11 1 1-05
E40-1216-05
E23-0046-04
E30-0436-05
10P connector
8P connector
7P connector
12P connector
1 1 P connector
12P socket
Terminal
1 P lead wire
-
F05-1023-05
F05-5013-05
Fused A)
Fuse (0.5A)
-
J25-1 326-22
Printed circuit board
L101
L102~105
L33-0263-05
L40-1525-04
L77-0233-05
Line filter
Ferri-inductor
Crystal oscillator
S2
S42-3009-05 Push switch
VR101
VR102
R12-1003-05
R12-0003-05
Semi-fixed resistor 2.2kfl
Semi-fixed resistor 470Q
TC101
C05-0013-15 Trimmer capacitor
