Seat
Installation
8

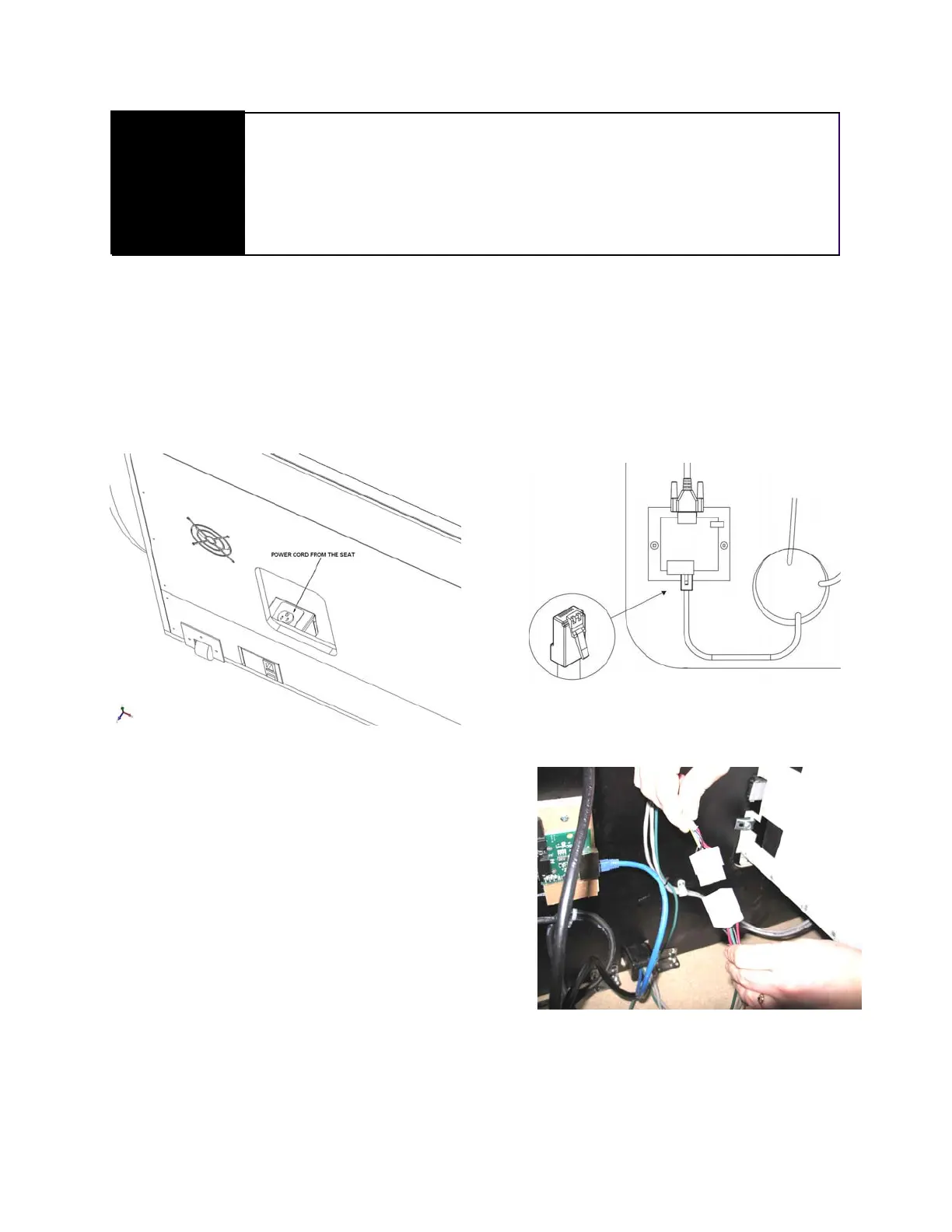

Through lower right (back of cabinet) door, connect wires you ran.
(Three connectors: NEMA /standard 110V to electric box, RJ45 to
Opto board (only one with RJ45 connection) and the Molex 9 pin con-
nector to its female connector
Once plugged in, lock door.
Opto-card
Main electric box
Molex 9-pin
