4
Connection
1
Optional: Attach the included mounting hardware to the unit, and
mount to a desired location.
2
Make sure power to all devices that you will be connecting is turned off.
3
Optional: Connect a DB9 cable between the RS-232 serial port on the unit
and the DB9 serial port on the computer you will be using to control it.
4
Connect an HDMI source device to an HDMI Input port on the switch.
Note: The length of the HDMI cable connecting the source to the switch must not
exceed 16 ft. (5 m).
5
Repeat step 3 to connect up to two more source devices to the
remaining Input ports on the switch.
6
Connect the HDMI Output port on the switch to the HDMI input port of
your display.
Note: The length of the HDMI cable connecting the switch to the display must not
exceed 16 ft. (5 m).
7
Connect the external power supply to the switch. Plug it into a Tripp Lite
surge protector, uninterruptible power supply (UPS) or power distribution
unit (PDU). The red LED on the unit will illuminate to indicate power is
being received.

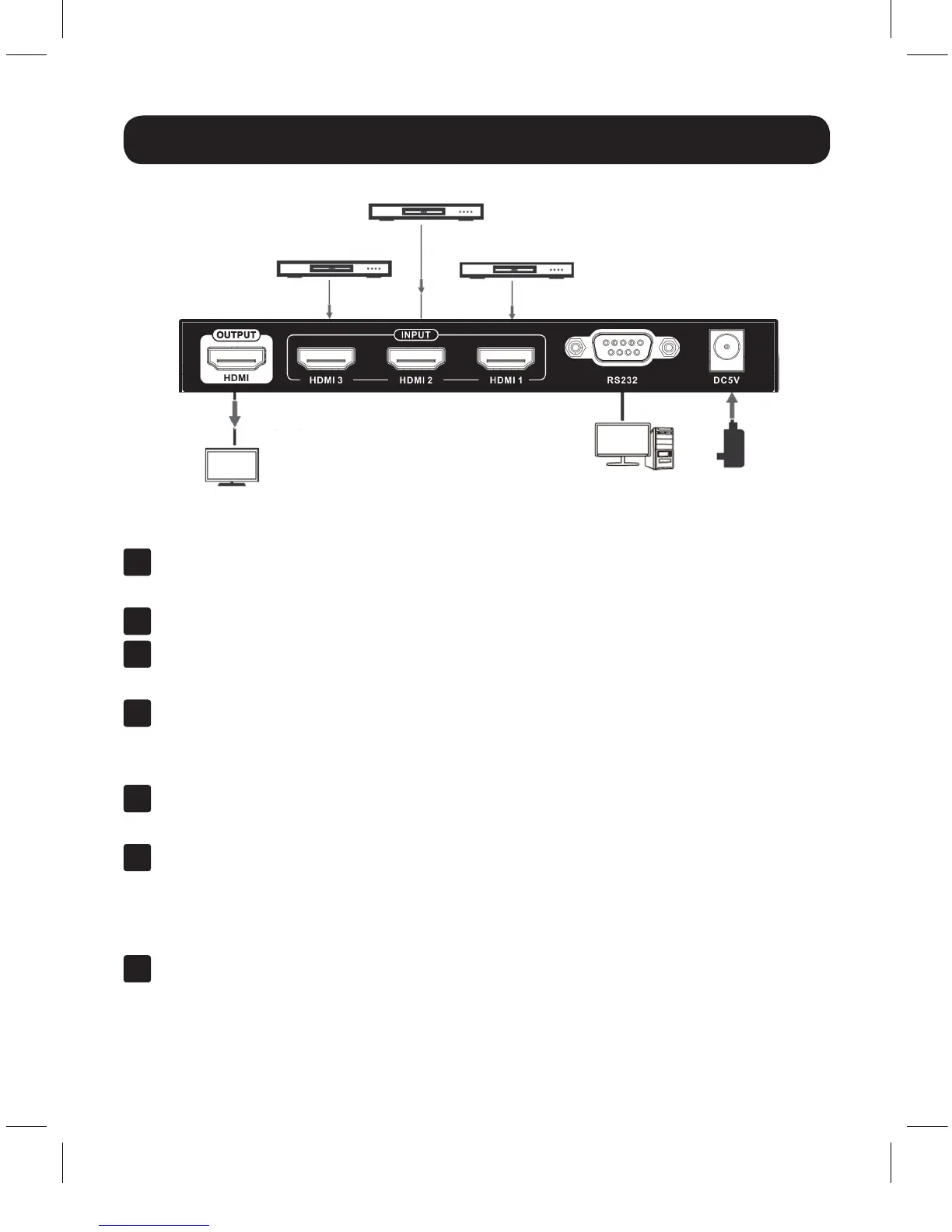

Standard Installation
DVD
DVD
DVD
HDMI Switch
Display
18-01-070-933768-EN.indd 4 2/6/2018 3:53:03 PM
