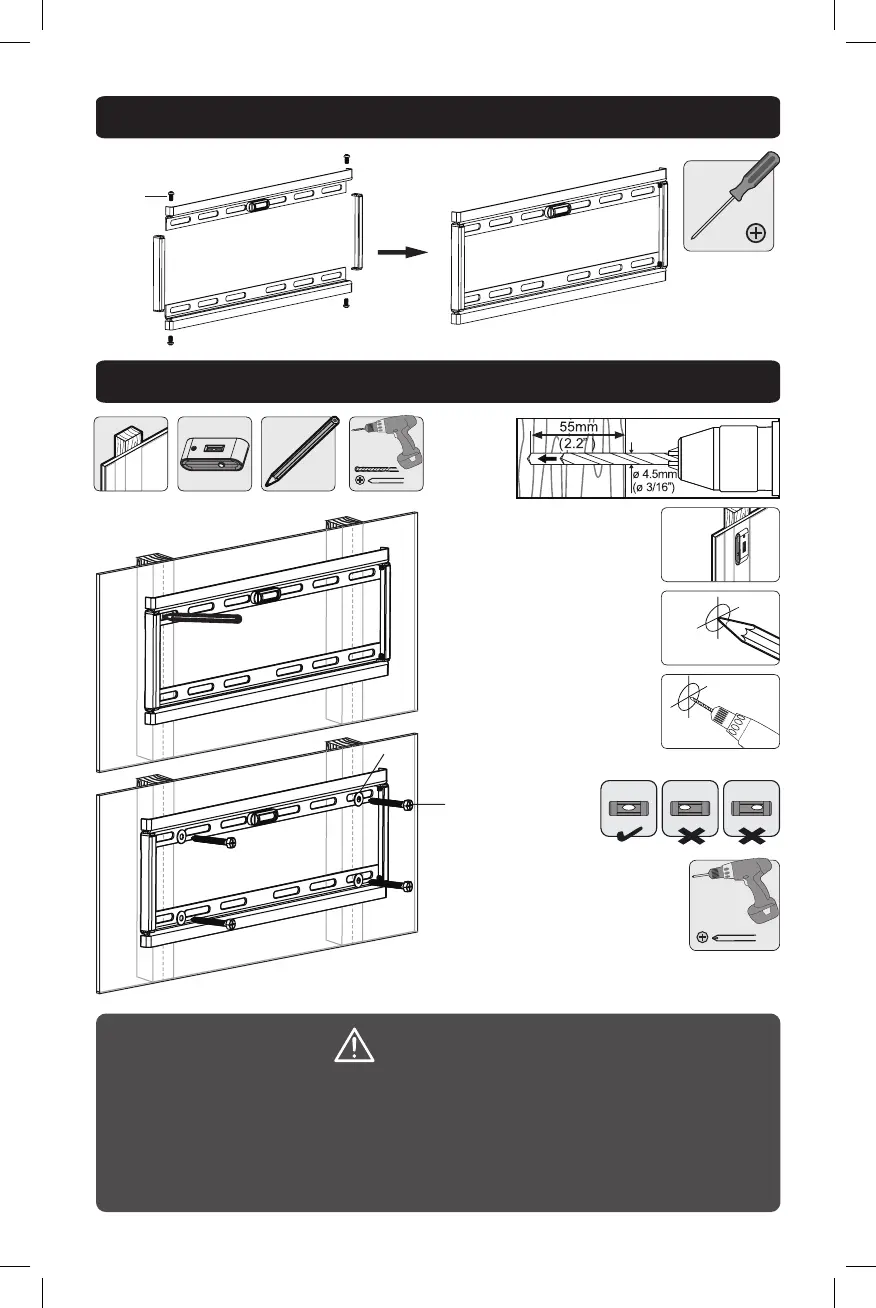

1. Assemble the Wall Plate
2a. Mount on Wood Stud Wall
M5X10
1
2
3
Find and mark the
exact location of
mounting holes
Screw the
assembled wall
plate onto the wall
Drill pilot holes
WARNING
• Make sure that mounting screws are anchored into the center of the studs.
Use of a stud finder is highly recommended.
• Installers are responsible to provide hardware for other types of mounting situations.
• Installers must verify that the supporting surface will safely support the combined
load of the equipment and all attached hardware and components.
D6 Washer
Anchor Bolt
