Note: Choose appropriate screws, washers and spacers (if
necessary) according to the type of screen.
• Position the adapter brackets as close as possible to the
center of the display.
• Screw the adapter brackets onto the display.
Firmly secure all screws. Do not over-tighten.

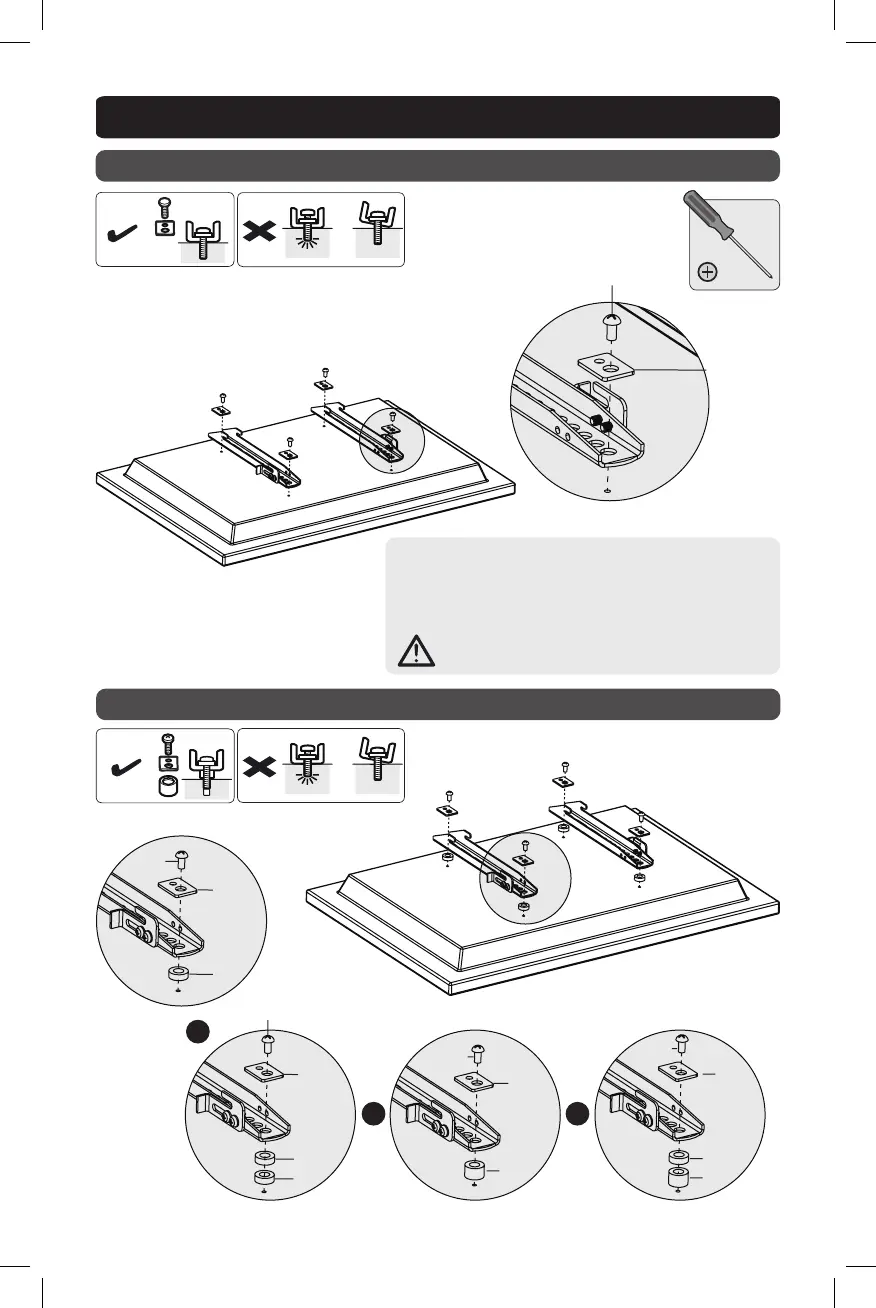

3. Install Adapter Brackets
3-1 For Flat Back Screen
3-2 For Recessed Back Screen or to Access A/V Inputs
or
or or
TV
TV
Washer
M5X14
M6X14
M8X20
M8X20
Washer
Washer
Washer
Washer
Small Spacer
Small Spacer
Small Spacer
Small Spacer
Big Spacer
Big Spacer
M8X20
M6X30
M8X30
M6X30
M8X30
M6X30
M8X30
TV
TV
TV
TV
