4

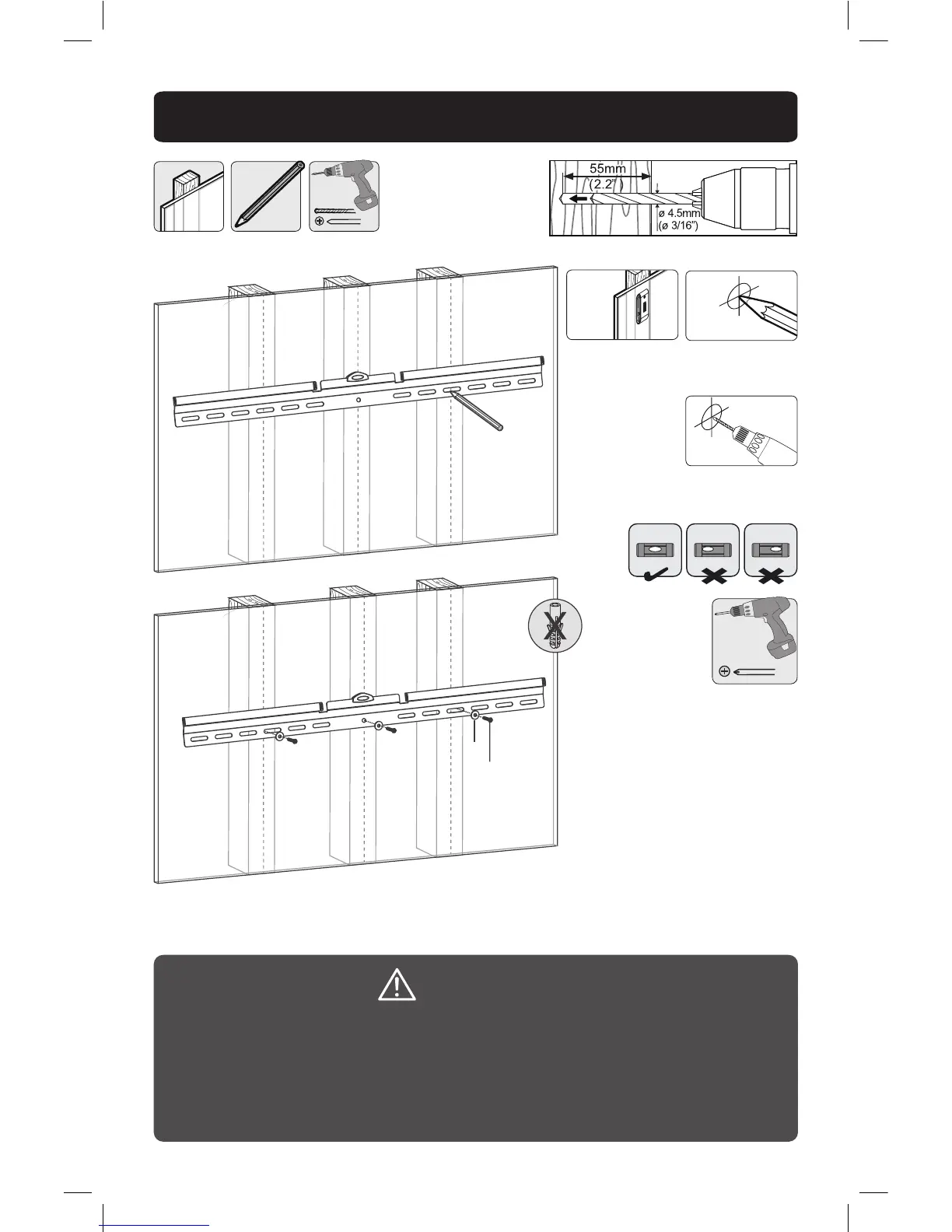

1a. Wood Stud Wall Mounting
{Fits 406mm (16”) / 450mm (17.7”) / 600mm (23.6”) / 610mm (24”) stud}
D6 Washer
Anchor Bolt
1
2
3
Find and mark the exact
location of mounting holes
Screw the wall
plate onto the
wall
Drill pilot holes
WARNING
• Make sure that mounting screws are anchored into the center of the studs.
Use of a stud finder is highly recommended.
• Installers are responsible to provide hardware for other types of mounting situations.
• Installers must verify that the supporting surface will safely support the combined
load of the equipment and all attached hardware and components.
13-10-124-9332E3.indb 4 11/19/2013 4:30:48 PM
